Lexmark C792 series

To Next Page

To Previous Page

4-118 Service Manual

5062

Go Back

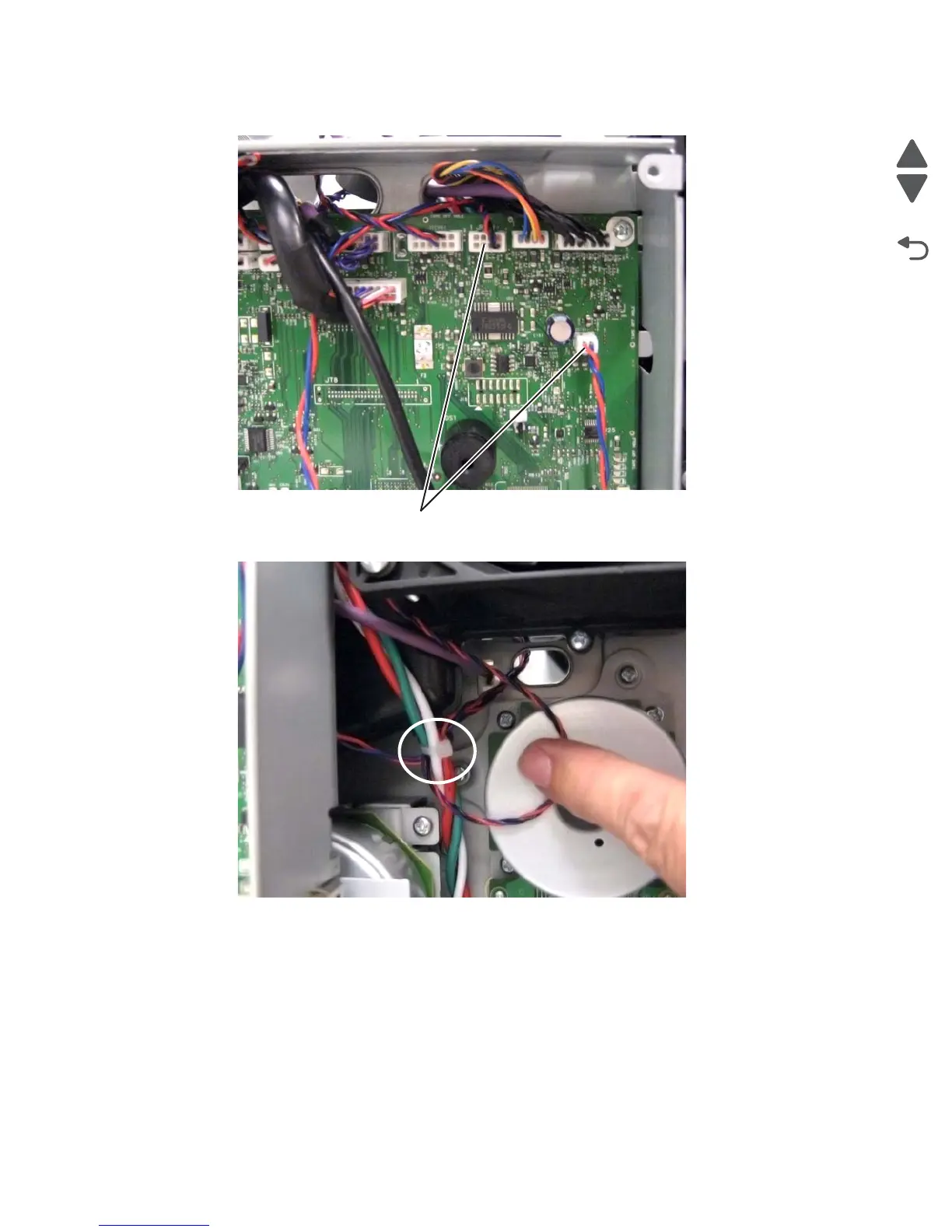

4. Disconnect the sensor cables (A).

5. Clip the cable tie, and route the cables through the frame.
