Lexmark C792 series - Page 373

Repair information 4-119
5062
Go Back
Previous
Next

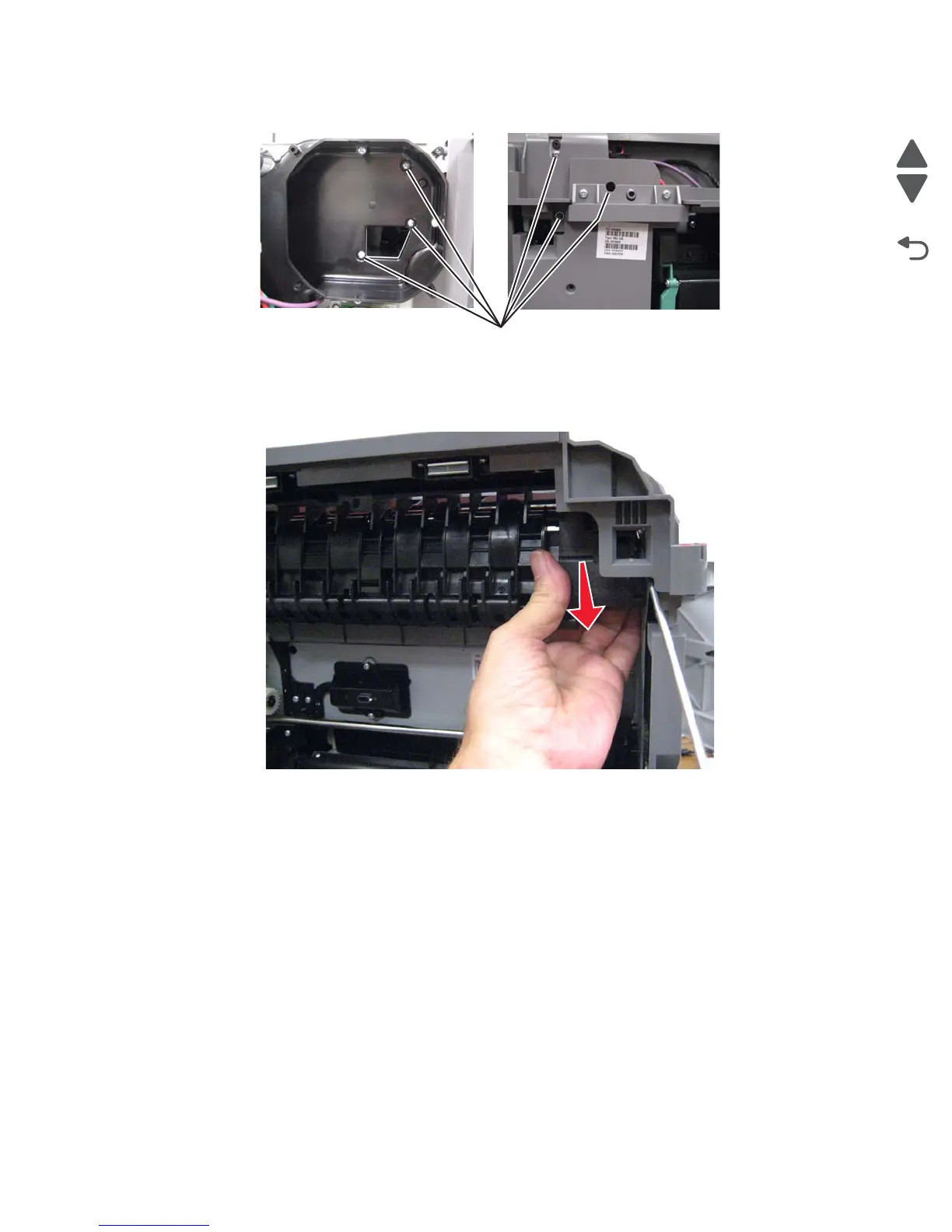

6. Remove six screws (B), three from the rear and three from the front.
7. Insert a flat-blade screwdriver angled toward the top of the front side of the assembly, and deflect the front
plate enough to drop down the front end of the assembly.
8. Pull the sensor cables through the frame to remove the assembly.
B
B (88A0323)
