Lexmark C792 series

To Next Page

To Previous Page

Repair information 4-171

5062

Go Back

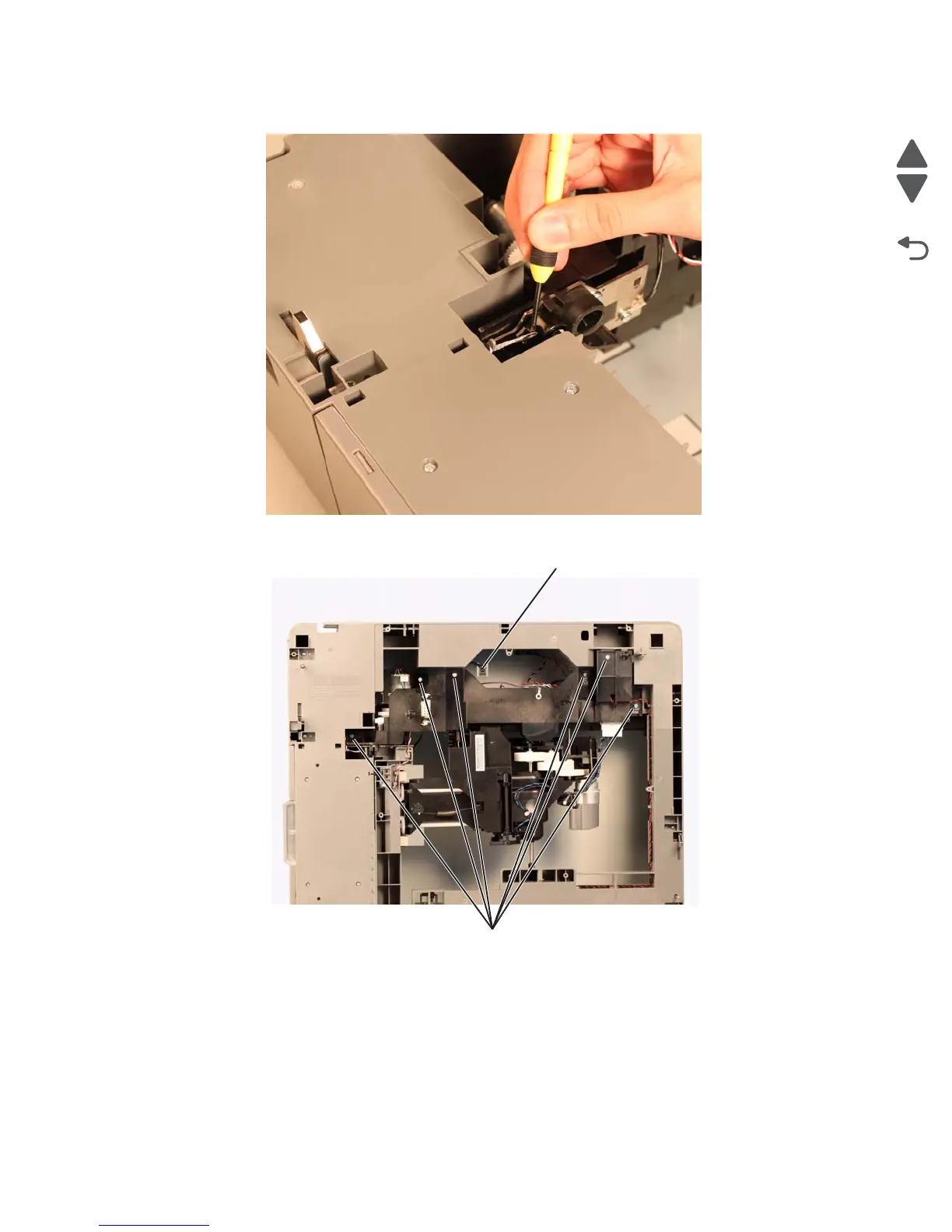

5. Release the cord with a prying tool.

6. Remove the six screws (A) and one screw (B) securing the drive assembly to the drawer.

7. Open the jam clearance cover.

8. Lift the left side of the drive assembly to access the controller card assembly.

B (88A0001)

A (88A0323)
