Lexmark C792 series

To Next Page

To Previous Page

4-192 Service Manual

5062

Go Back

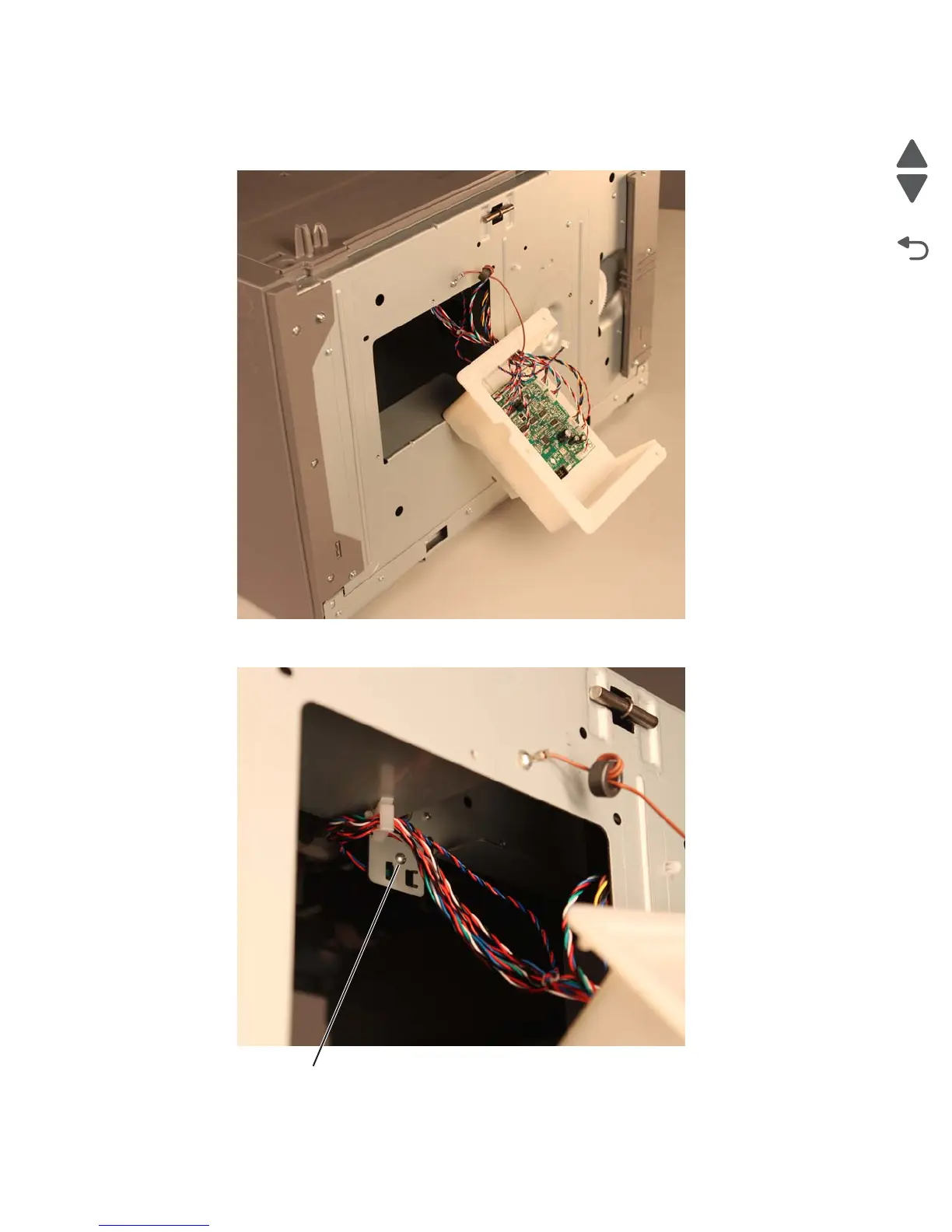

5. Detach the controller card housing.

Note: The controller card housing does not need to be completely removed from the machine. It may be

allowed to hang on the side.

6. Remove the screw (C) securing the elevator home sensor.

C (88A0312)
