Lexmark C792 series

To Next Page

To Previous Page

Repair information 4-193

5062

Go Back

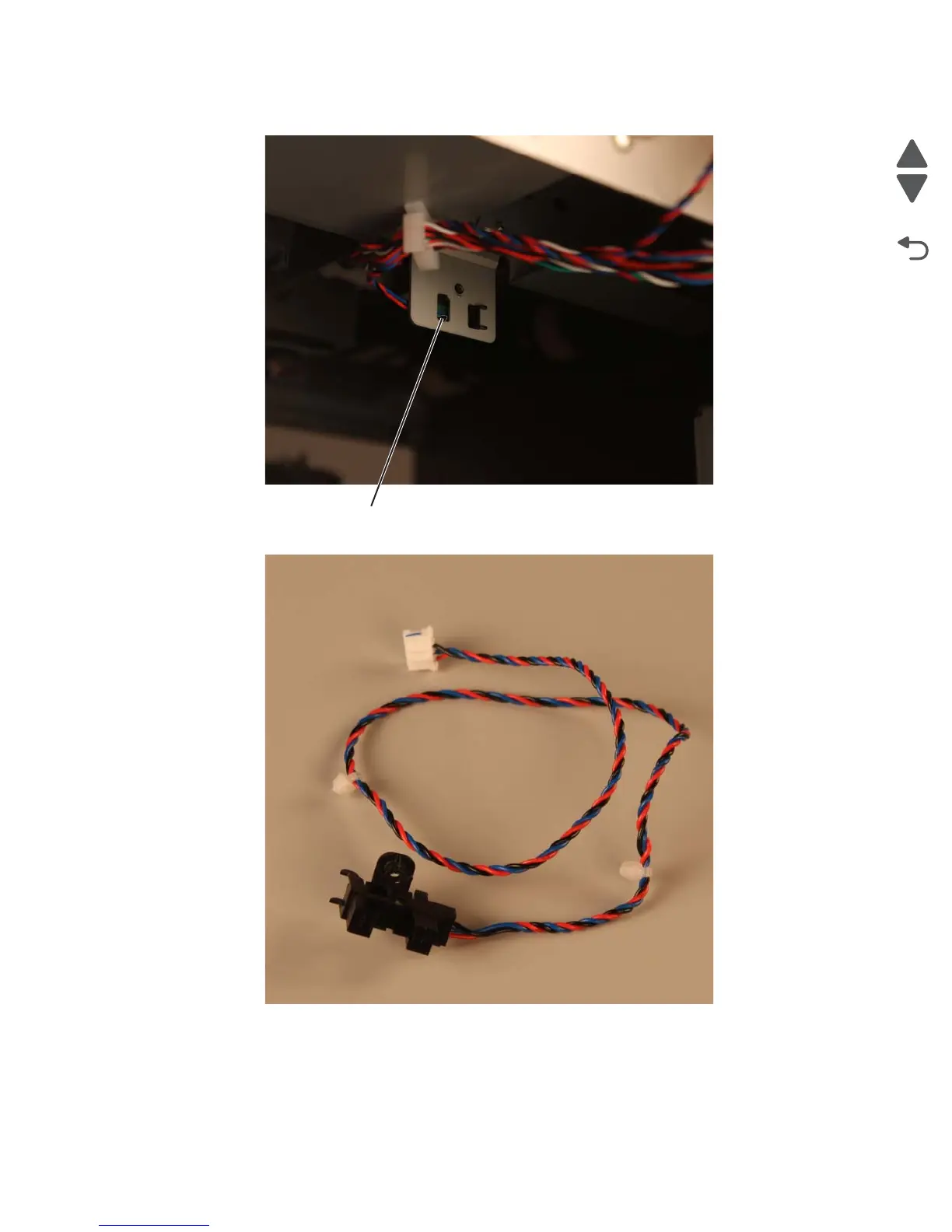

7. Press the latch (D) to remove the elevator home sensor.

8. Remove the elevator home sensor cable.
