Lexmark C792 series

To Next Page

To Previous Page

4-196 Service Manual

5062

Go Back

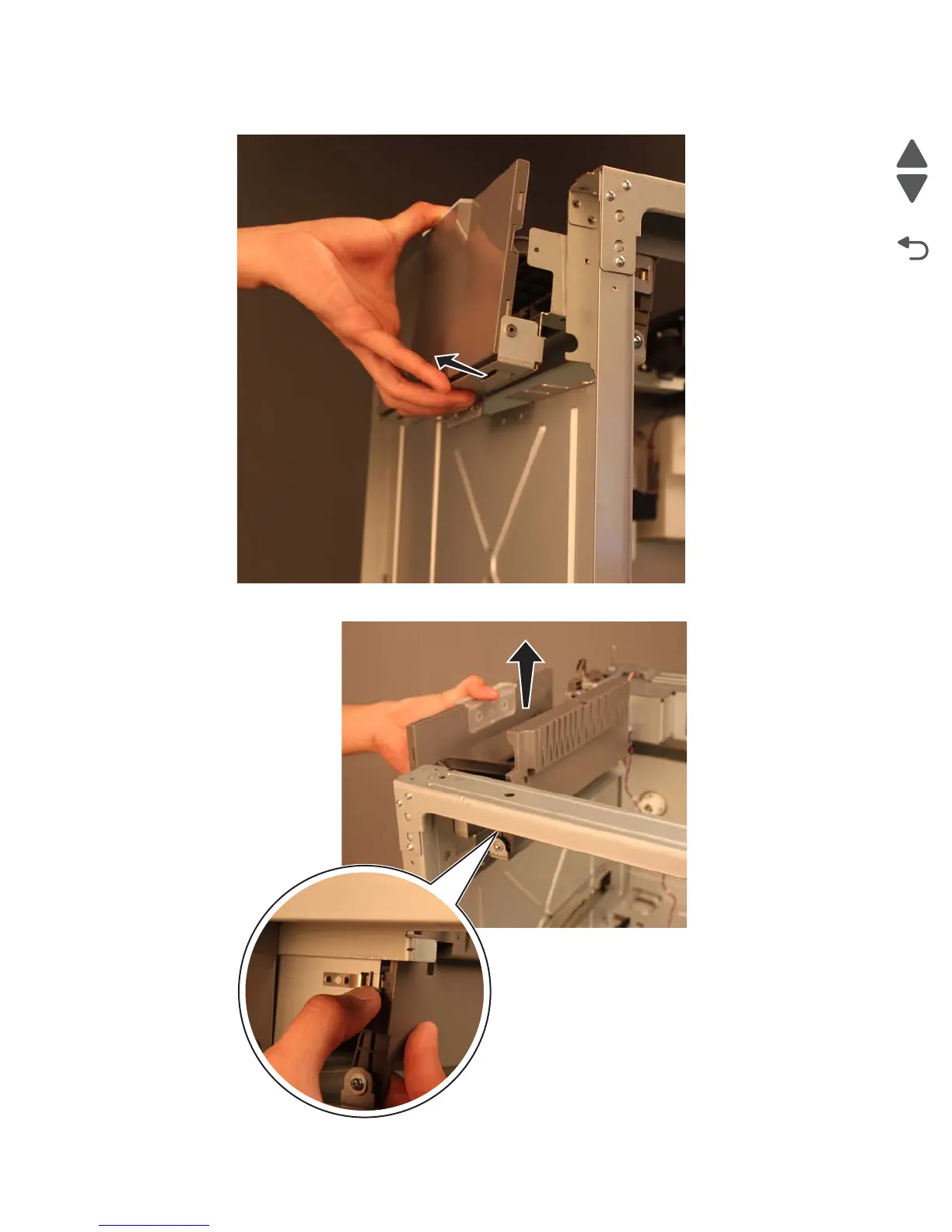

14. Pull out the jam clearance cover to clear the slots from the frame.

15. Press the metal tab to release the jam clearance cover, and pull up to remove the jam clearance cover.
