Repair information 4-197

5062

Go Back

Warning: Be careful not to damage the jam clearance cover sensor.

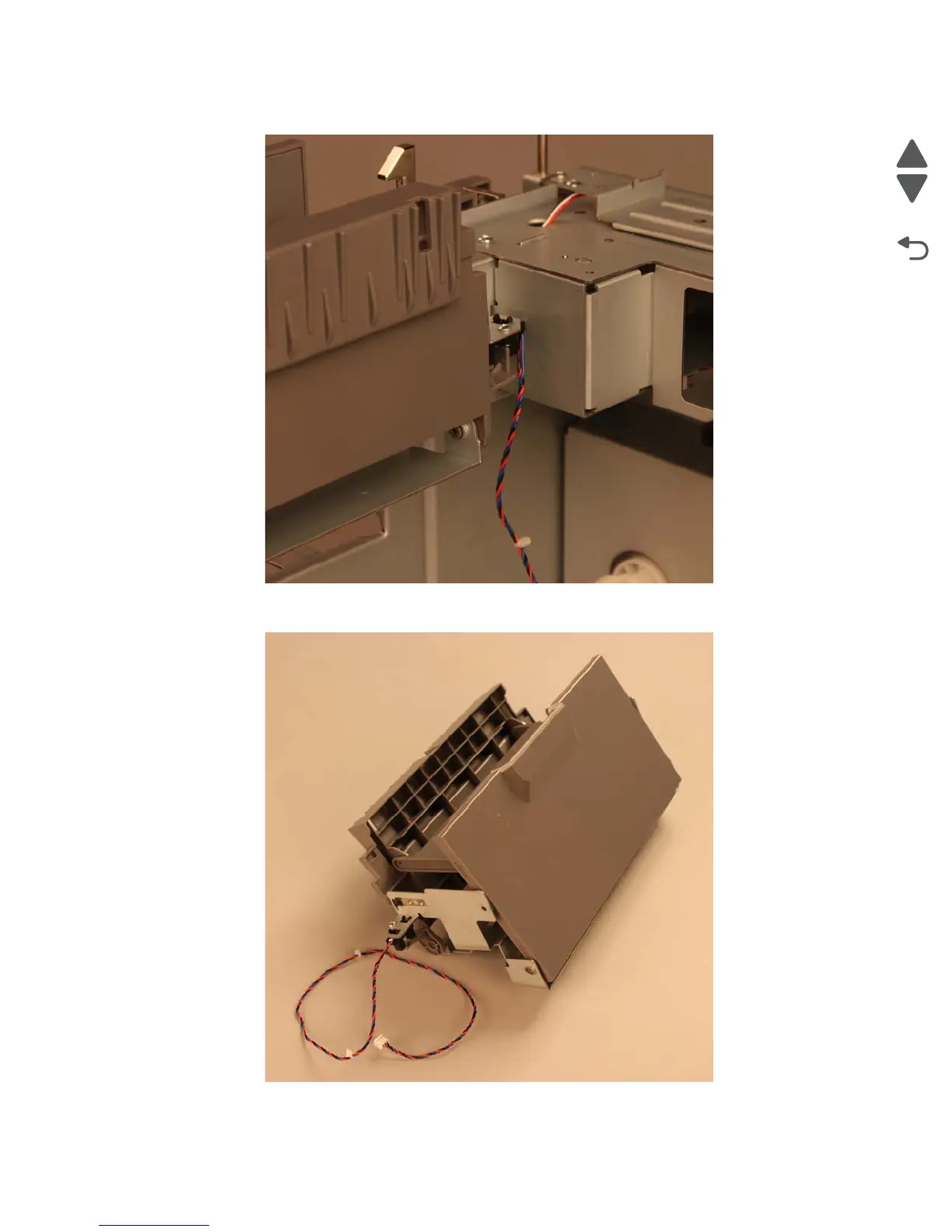

This is the photo of the 2000-sheet high-capacity feeder jam clearance cover.
