Repair information 4-207

5062

Go Back

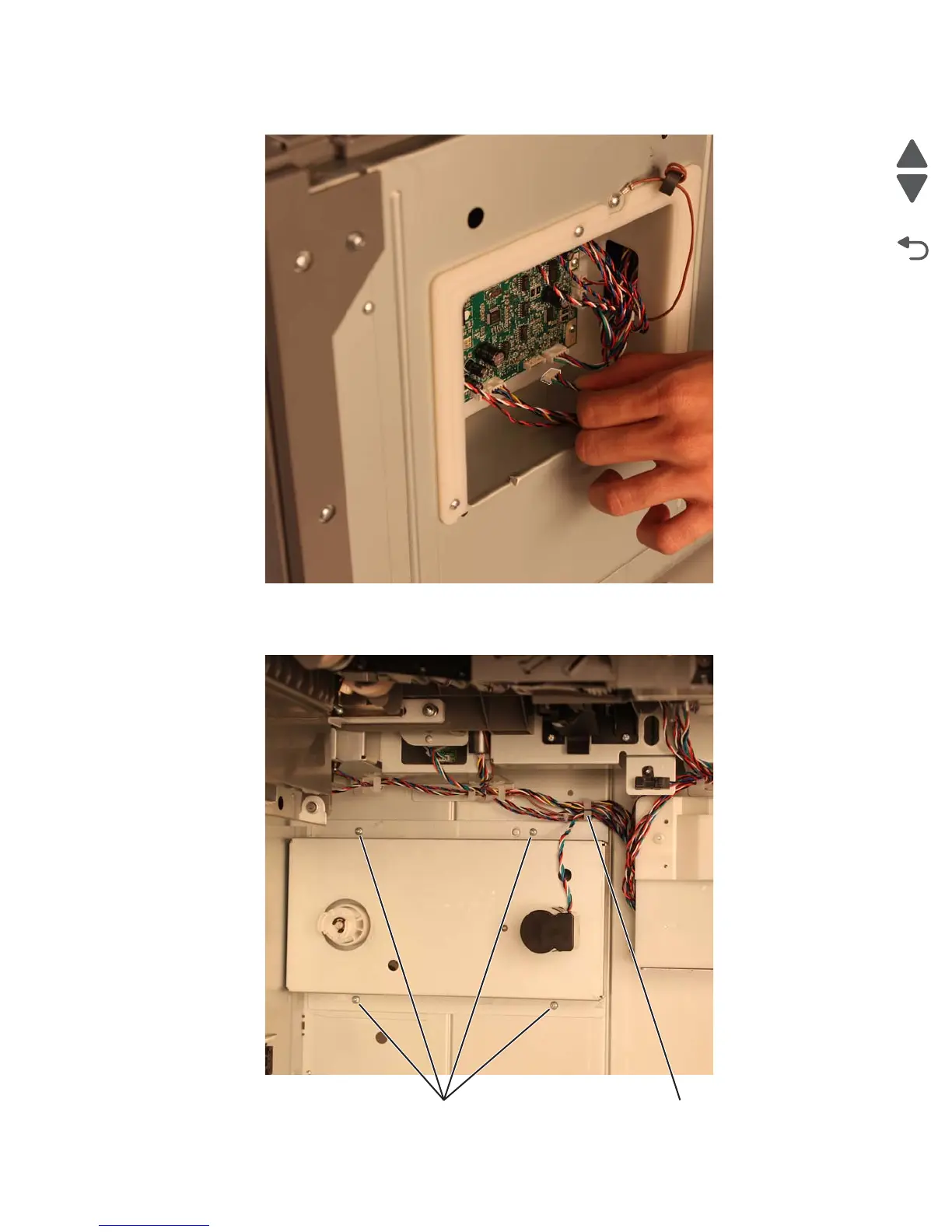

3. Disconnect the lift drive motor connector from the controller card assembly.

4. Release the lift drive motor cable from the cable guide (A).

5. Remove the four screws (B) to remove the bracket.

B A
