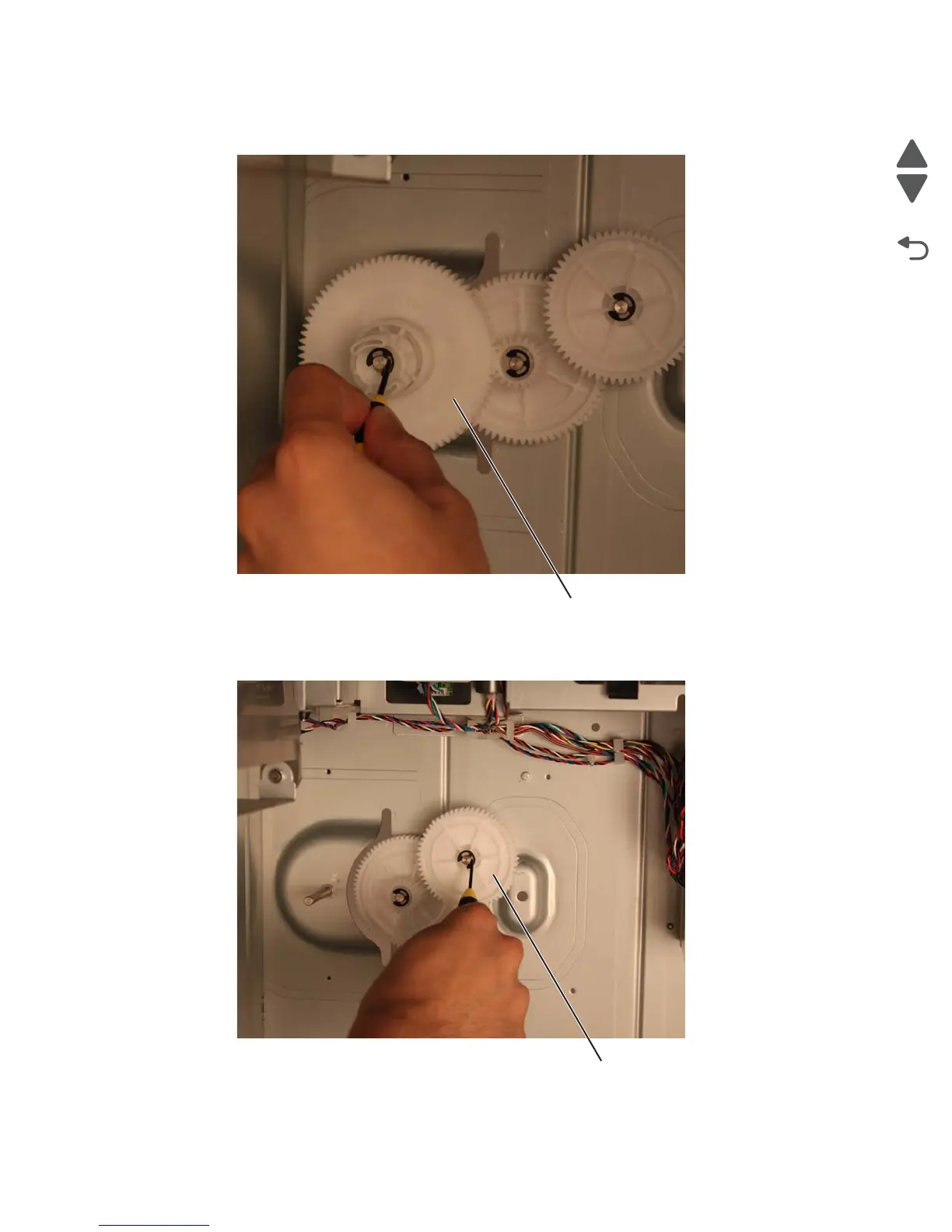

6. Remove the E-clip securing the elevator gear (C) to the frame.
Note: The spring from gear (C) will pop out when removing the E-clip.
7. Remove the elevator gear (C).
8. Remove the E-clip securing the elevator gear (D) to the frame.
9. Remove the elevator gear (D).
C
D
