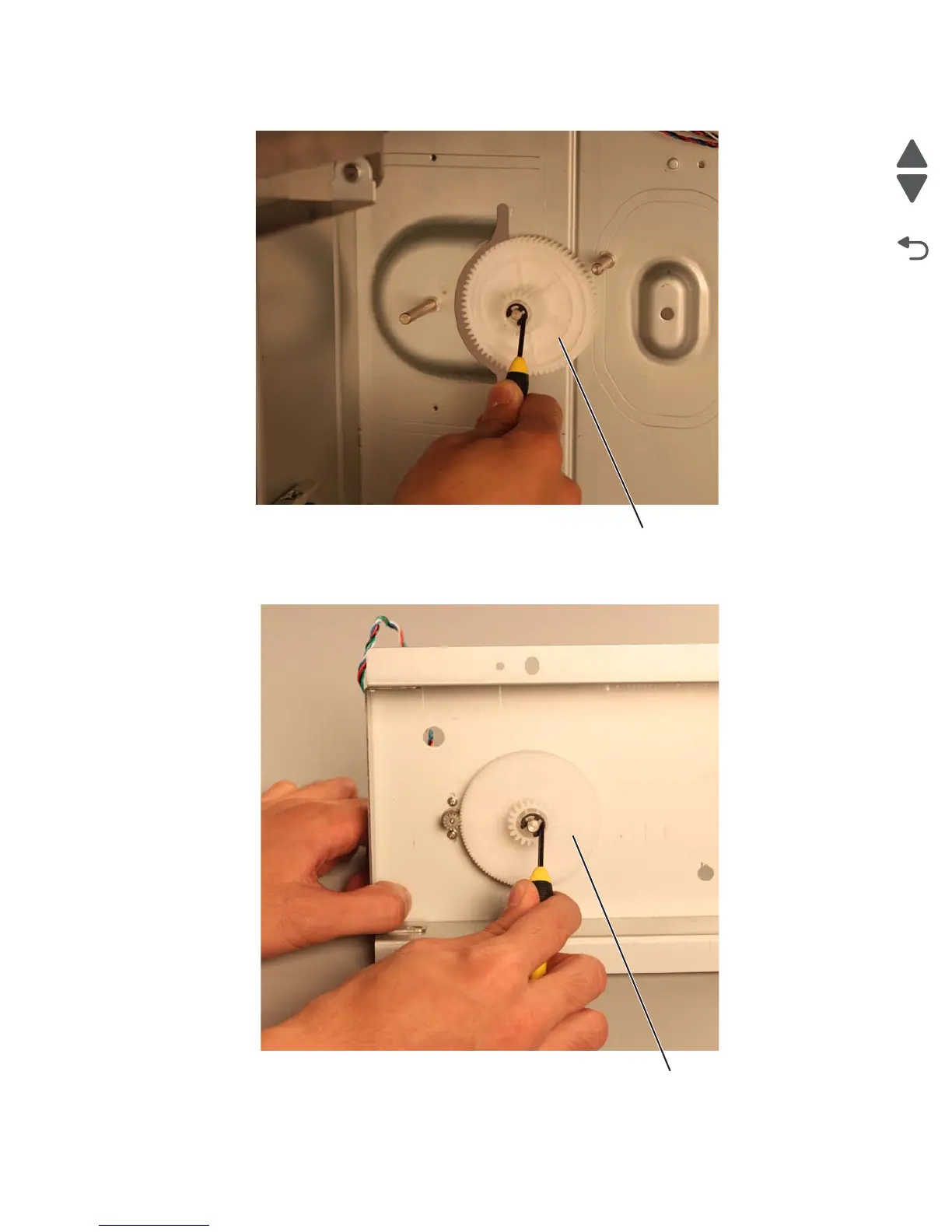

10. Remove the E-clip securing the elevator gear (E) to the frame.
11. Remove the elevator gear (E).
12. Remove the E-clip securing the elevator gear (F) to the bracket.
13. Remove the elevator gear (F).
E
F
