Lexmark C792 series

To Next Page

To Previous Page

Repair information 4-221

5062

Go Back

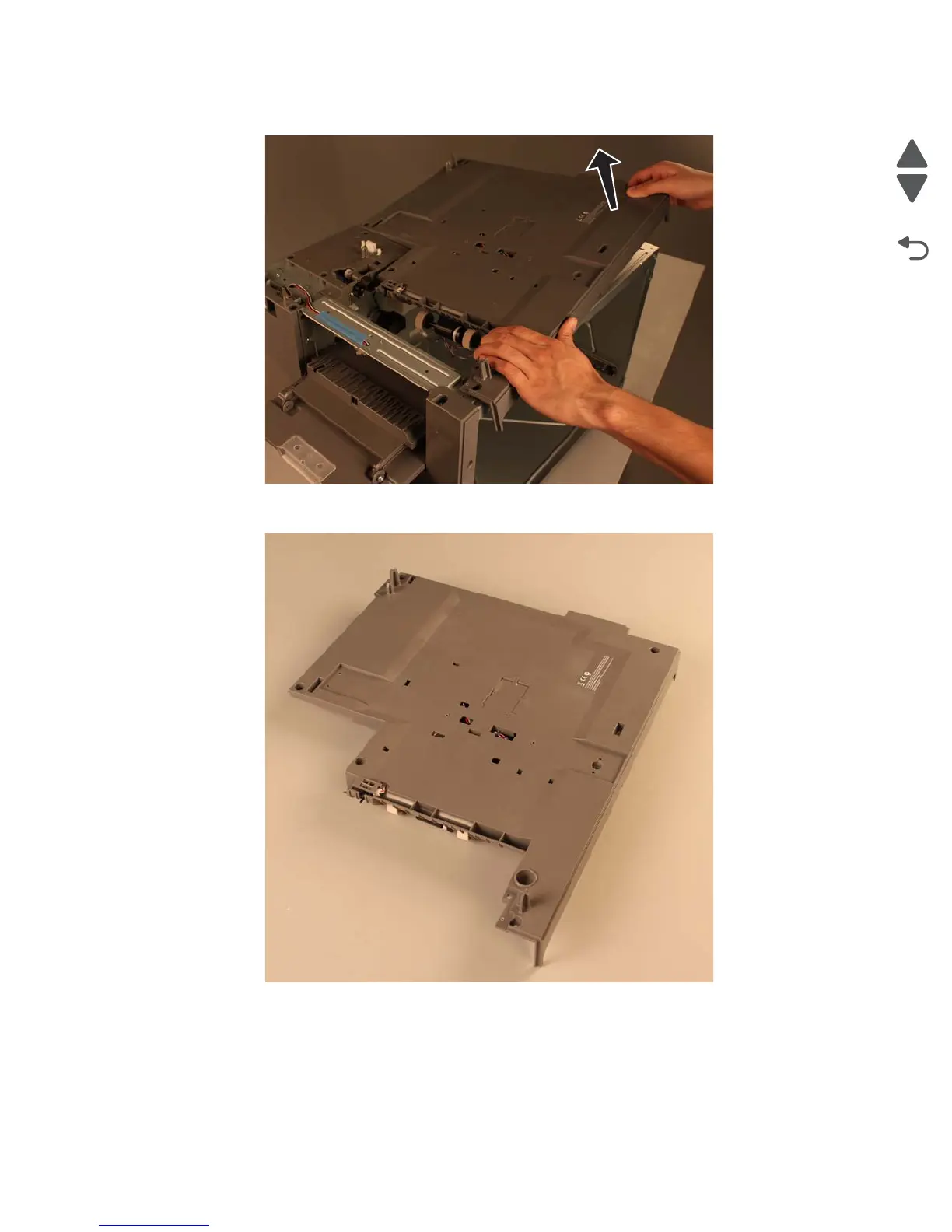

9. Lift the lower right side of the pick assembly and pull to remove it.

This is the photo of the 2000-sheet high-capacity feeder pick assembly.
