Lexmark C792 series

To Next Page

To Previous Page

4-222 Service Manual

5062

Go Back

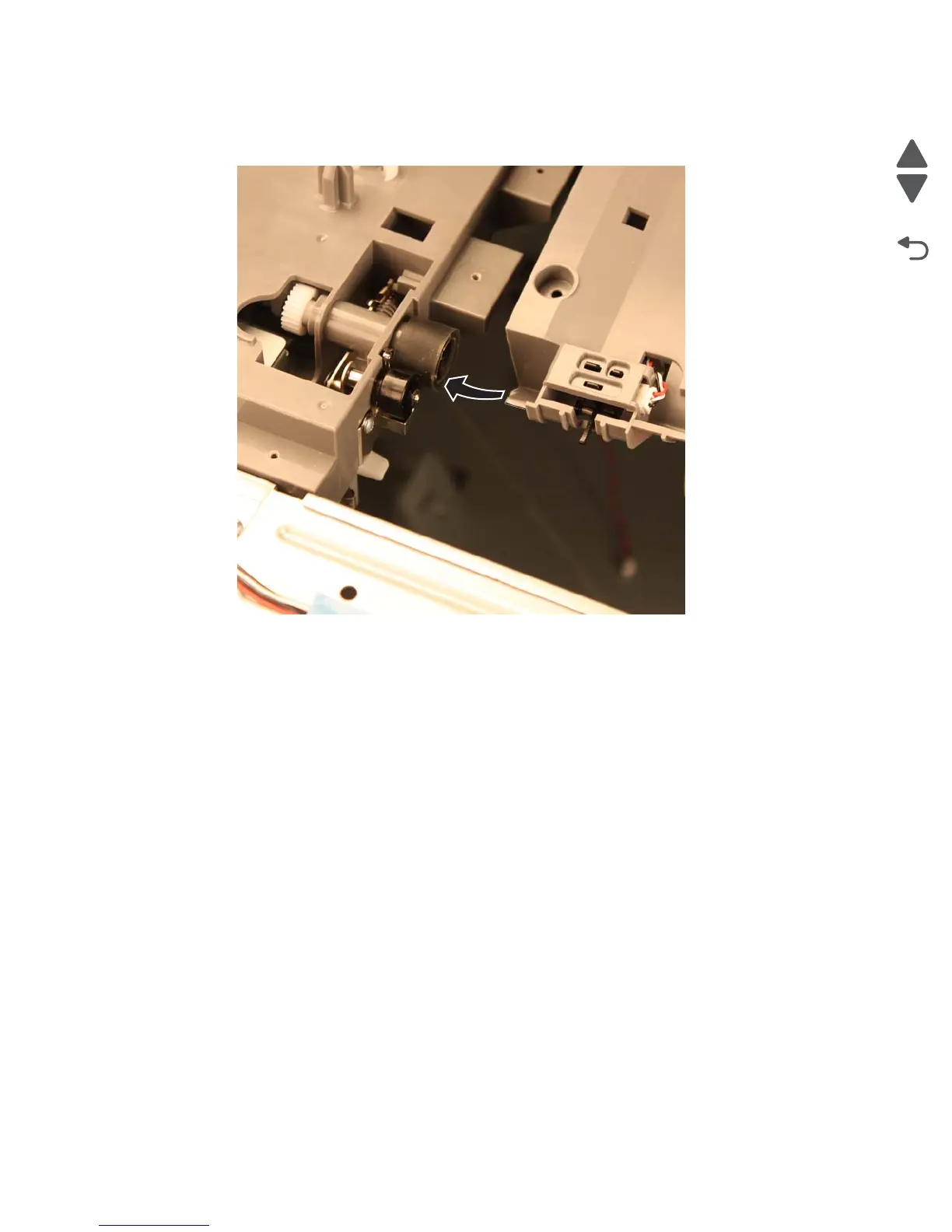

Installation note:

1. Align the upper left part of the pick assembly.

2. Align the frame tabs to their corresponding pick arm slots.
