116 Rockwell Automation Publication 2198-UM004D-EN-P - December 2022

Chapter 5 Set Up EtherNet/IP Communication

3. From the dialog box, double-click the MAC address of your drive.

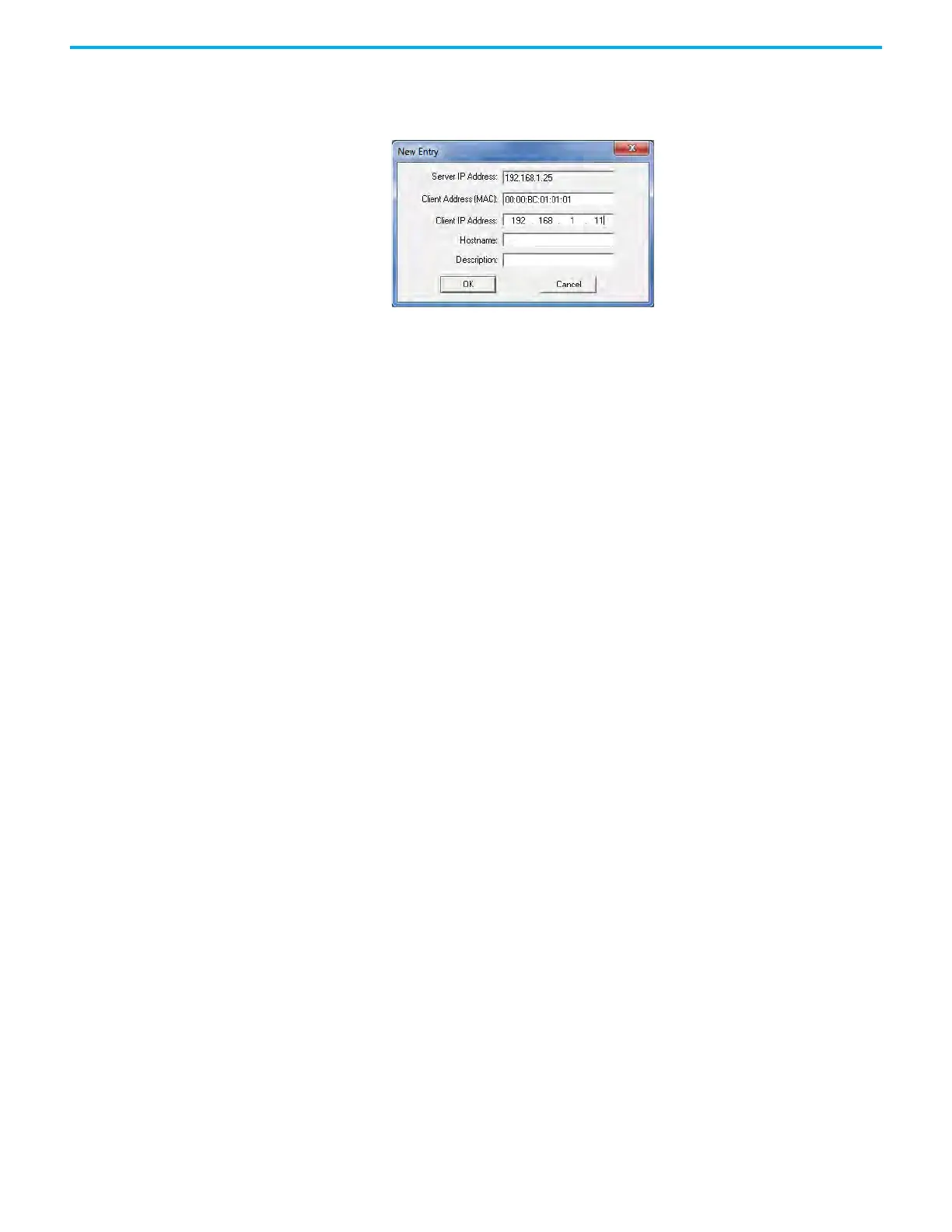

The New Entry dialog appears.

4. Type your specified IP address in the New Entry dialog, and then click

OK.
