Chapter 11 Motion Control in PR Mode
Display of PR Procedure in
KNX5100C Software
This section describes how the software displays information related to each of
the seven types of PR Mode commands. This display is on the Chart tab of the
PR Mode Editor in KNX5100C software. To help you understand how PR
procedure works, the configuration software presents the execution order and
calling sequence of all PR procedures.
Parts of the PR Display
The PR display includes five parts: number, execution property, command
type, next PR command, and command data.

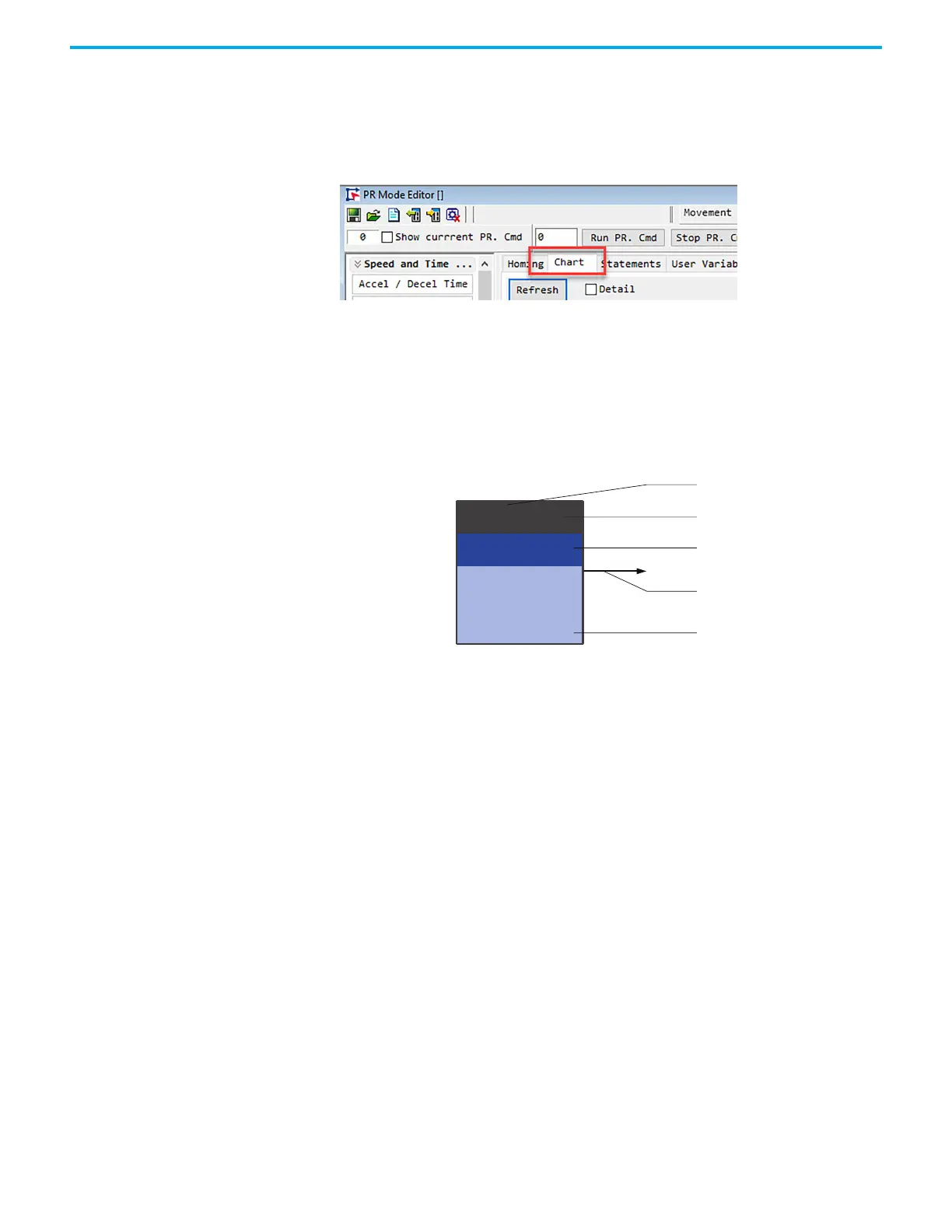

Figure 156 - PR Display
1. Number: the PR number, ranging from PR#0…PR#99 (100 sets of PR
commands).
2. Execution property: (B) Execute homing when power on; (O) Command
overlap; (R) write data to EEPROM; (I) command interrupt.
3. Command type: there are six types of PR commands: homing, speed,
position, writing, jumping, and arithmetic operations. The color
displayed in this section depends on the command type.
4. Next PR command: if followed by a PR command, the arrow points to the
specified PR command.
5. Command information: displays the details of this PR command. The
color depends on the information types.
PR#1 (I)(O)
Position
DLY = [0] 0 ms
100000 PUU
INC
200 rpm
1
2
3
4
5
