Appendix C Use Add-On Instructions
Download the Add-On
Instruction Files and Data
Types
The Add-On Instructions files and Data Types for the Kinetix 5100 drive are
available for download at the Rockwell Automation Product Compatibility
Download Center (PCDC) website. Follow these steps to download the Add-On
Instruction files and Data Types from the PCDC website,
https:rok.auto/pcdc
.
• For legacy applications: Enter 2198-Exxxx-ERS in the Search PCDC
window.
• For new applications: Enter Power Device Library in the Search PCDC
window.
Import the Add-On
Instruction Files and Data
Types (version 1.xxx)
In Legacy applications, (version1.xxx) follow these steps to import the Add-On
Instruction files and Data Types to your Studio 5000 Logix Designer
application. Use this method when you want to import individual Add-On
Instructions. This method also contains some simple interlocking to begin
your application programming.

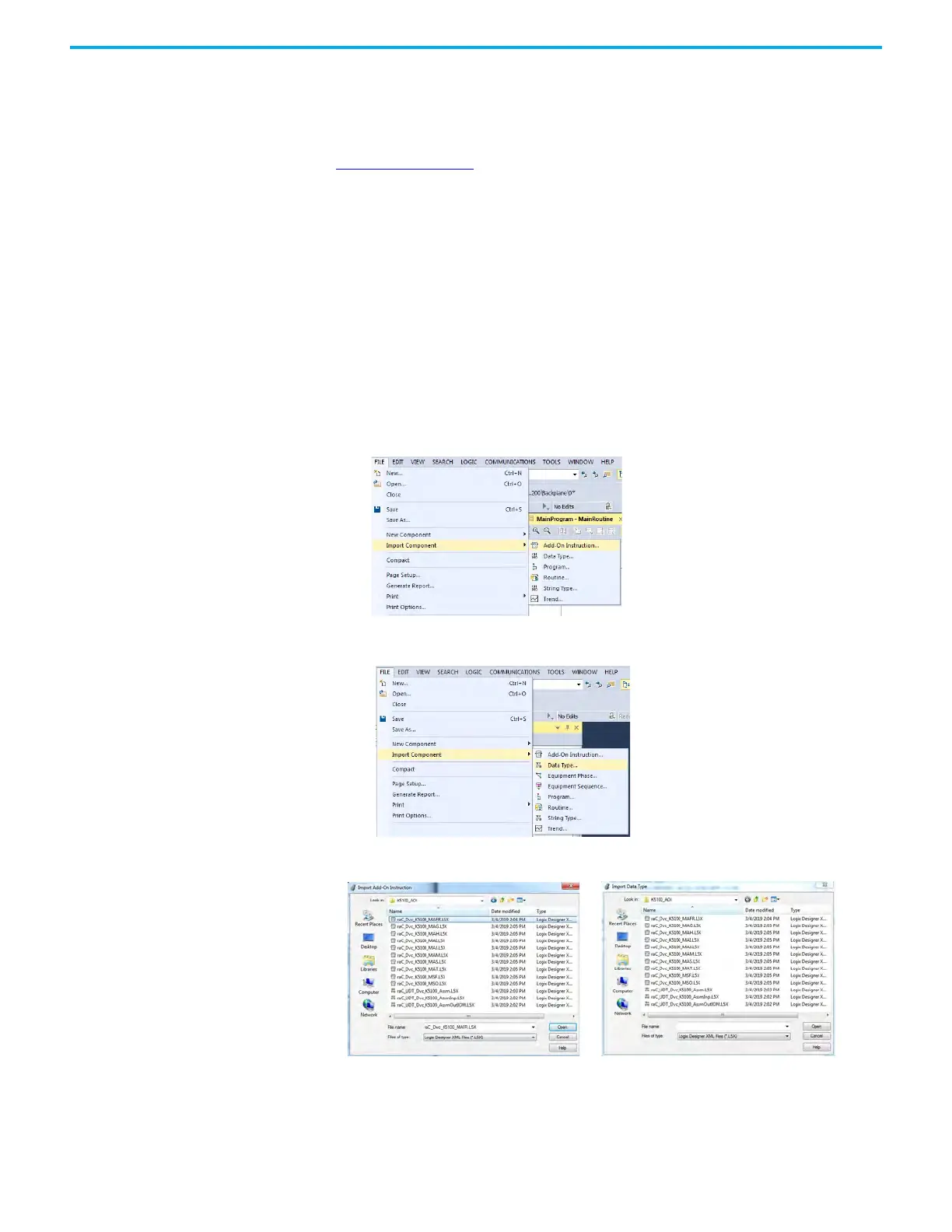

1. From the File menu, click Import Component>Add-On Instruction to
import Add-On Instruction Files.
Or, click Import Component>Data Type to import Data Types.
The Import Add-On Instruction/Data Types dialog box appears.
2. Browse to the Add-On Instruction files/Data Types you downloaded and
select a file to add to your Logix Designer application and click Open.
3. Repeat step 1 and step 2 for the other Add-On Instruction file/Data Types.
To Next Page
