526 Rockwell Automation Publication 2198-UM004D-EN-P - December 2022
Appendix D Full Closed Loop Control

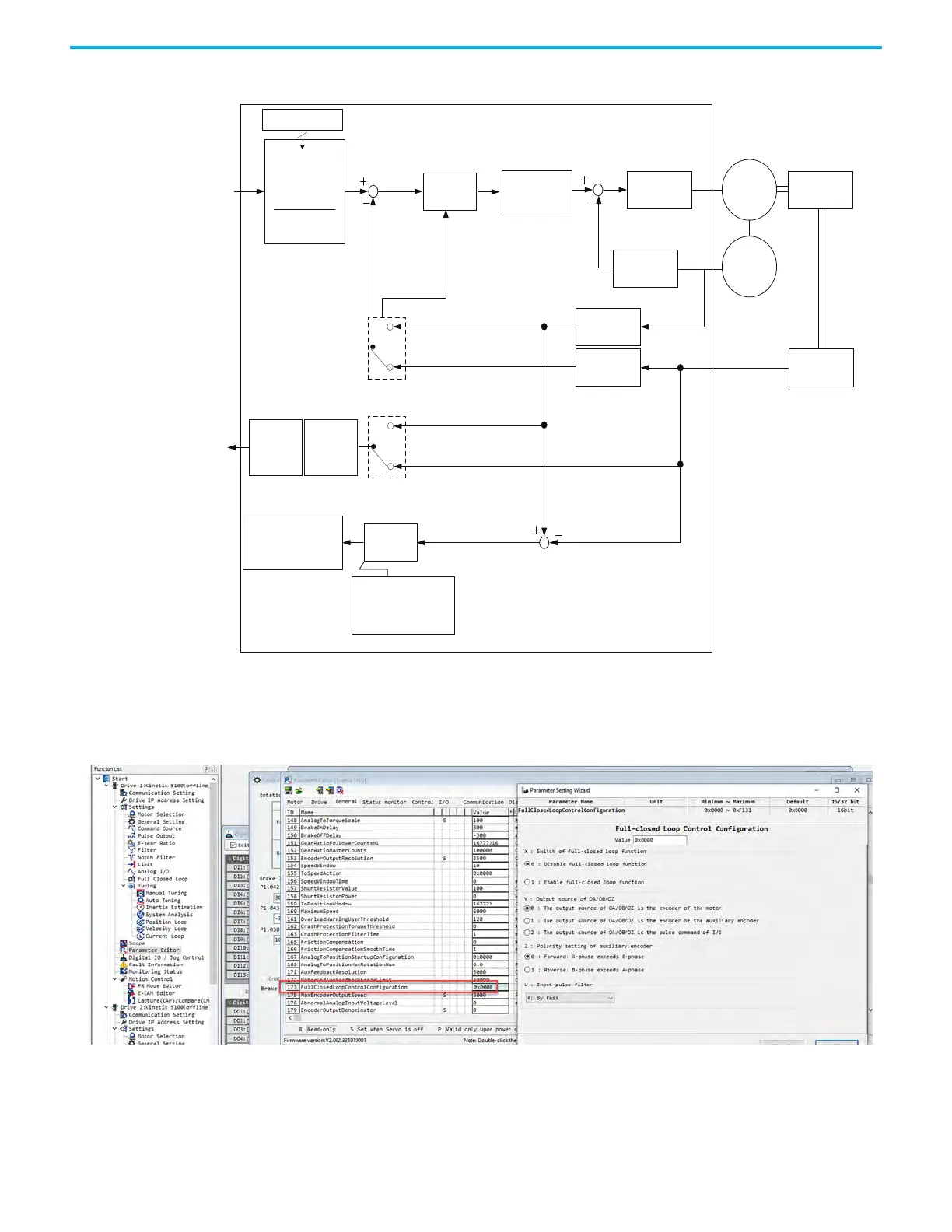

Figure 274 - Control Structure
Full Closed-loop Control To execute the full closed-loop control, follow these steps.
1. Connect auxiliary encoder (OA, OB, OZ) to the AUX port.
2. Use KNX5100C software Function List>Parameter Editor>General to
Enable full-closed loop function (x=1).
3. Choose the source of the encoder output.
4. Configure the auxiliary encoder resolution ID171 (P1.072)
AuxFeedbackResolution.
(Gear-Ratio)
Error
Counter
Position
Loop
Gain
Speed Loop
Speed
Evaluator
Motor
Encoder
Coupling
Mechanism
Motor Feedback
Count
Low-pass filter
Auxiliary
Encoder
Encoder Output
Resolution
Encoder
Output Polarity
OA
OB
OZ
Error
Counter
OA/OB/OZ
Output Source Selection
Error protection range
between auxiliary encoder and
motor eccoder
AUX
GNUM0 , GNUM 1
Pulse
Signal
Full closed-loop
switch
P1.044
P2.060
P2.061
P2.062
P1.045
P2.000, P2.002, P2.003
P1.003 P1.046
P1.075
P1.074.Y
P1.074.X
P1.073
P1.085
Full Closed Loop Position
Error Auto Reset Threshold
To Next Page
