Rockwell Automation Allen-Bradley Kinetix 5100 - Absolute Position Feature

76 Rockwell Automation Publication 2198-UM004D-EN-P - December 2022
Chapter 3 Connector Data and Feature Descriptions

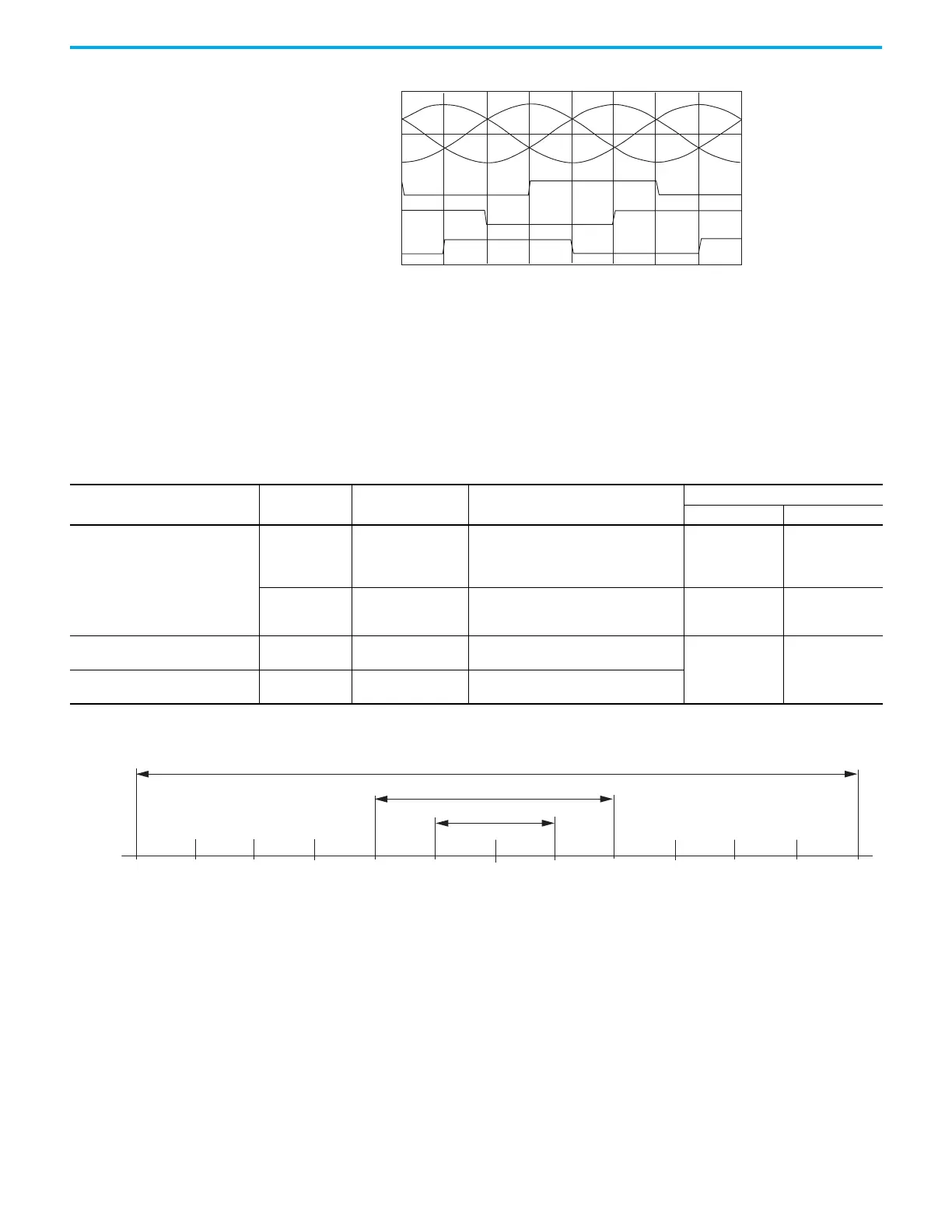

Figure 43 - Hall Encoder Phasing
Absolute Position Feature
The absolute position feature tracks the position of the motor, within the
multi-turn retention limits, while the drive is powered off. The absolute
position feature is available with only multi-turn encoders.
Figure 44 - Absolute Position Limits (measured in turns or revolutions)
V
UN
V
WN
V
VN
S1
S2
S3
300
0
60 120 180 240 300 60
0
Table 41 - Absolute Position Retention Limits
Encoder Type
Cat. No.
Designator
Motor Cat. No. Linear Cat. No.
Retention Limits
Turns (rotary) mm (linear)
Hiperface
-M
MPL-A/Bxxxxx-M
MPM-A/Bxxxxx-M
MPF-A/Bxxxxx-M
MPS-A/Bxxxxx-M
MPAR-A/B3xxxx-M
MPAI-A/BxxxxxM
2048 (±1024) –
-V MPL-A/Bxxxxx-V
MPAS-A/Bxxxx1-V05, MPAS-A/Bxxxx2-V20
MPAR-A/B1xxxx-V, MPAR-A/B2xxxx-V
MPAI-A/BxxxxxV
4096 (±2048) –
Nikon (24-bit) serial with battery
backup
-D TLP-A/Bxxxx-D –
65,536 (±32,768) –
Tamagawa (17-bit) serial with battery
backup
-B
TL-Axxxx-B
TLY-Axxxx-B
–
+2048-2048 +1024-1024
-16,384 -8192
0
-32,768
-4096
+16,384+8192
+32,768
+4096
Position at Power Down
4096 Turns
65,536 Revolutions
2048 Turns
