Rockwell Automation Publication 2198-UM004D-EN-P - December 2022 135
Chapter 7 Configure the Drive with KNX5100C Software
You can specify the motor data source and configure the related parameter
value via the motor pages according to data source and motor type.
Data Source
You can specify the data source where the motor feedback values originate.
The available data sources are:
• Motor NV: Motor parameter values come from the nonvolatile memory
of a motor. When the motor has an intelligent feedback device, the drive
is able to identify the motor when using NV parameters from the
feedback device.
• Catalog number: Motor parameter values come from the selected catalog
number. Select the motor from a pull-down menu where the motor
database is embedded into the KNX5100C software.
• Nameplate datasheet: Motor parameter values come from a motor
nameplate and datasheet. You must input the motor nameplate data
manually.

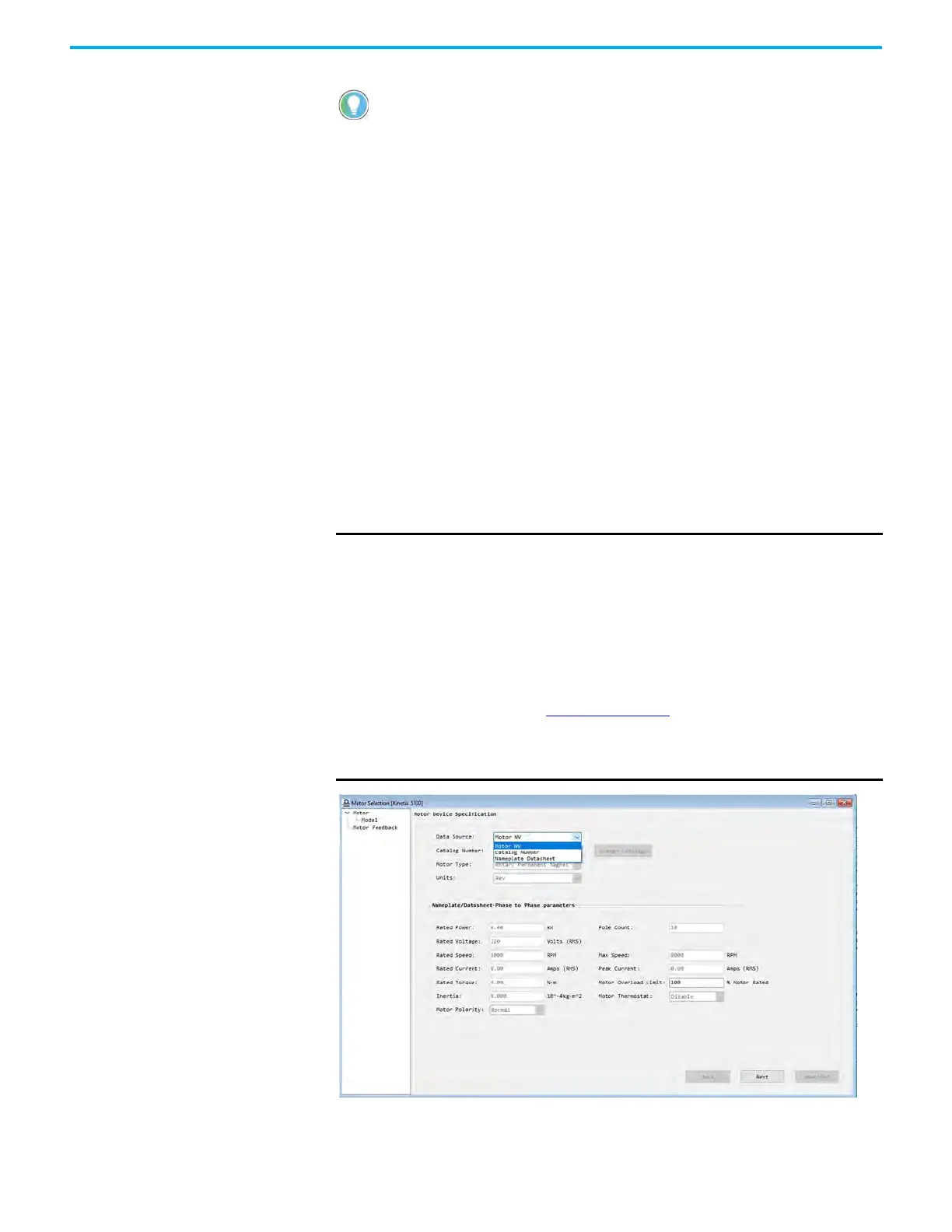

The parameters displayed in the Motor Selection dialog box depend on the data
source and the type of motor selected.
IMPORTANT
When the nameplate datasheet is selected, the parameter field of
nameplate/datasheet parameter section of the Motor, Model, and
Motor Feedback pages are visible, and you can enter these values.
If a data source other than Nameplate datasheet is selected, the
parameter field of nameplate/datasheet parameter section of the
Motor, Model, and Motor Feedback pages are dimmed and the motor
parameters values are read either from the intelligent encoder or the
KNX5100C software motor database.
The Motor Overload Limit parameter is not dimmed and can be
modified, see Motor NV
on page 136.
When the data source is Catalog Number and a Kinetix LDC or Kinetix
LDL motor is selected, you must manually enter the parameters in the
Motor Feedback dialog box.
