136 Rockwell Automation Publication 2198-UM004D-EN-P - December 2022
Chapter 7 Configure the Drive with KNX5100C Software
Motor NV
When Motor NV is selected as the data source and the attached motor has a
intelligent encoder with internal memory, the drive can identify the motor
automatically and read all motor parameter values.
If the attached motor does not have a intelligent encoder when Motor NV is
selected, then fault E 60B, Motor Selection Error, occurs. If the attached motor
has a Nikon encoder that is not a intelligent encoder and no motor parameters
are stored, then fault E 004, Motor Combination Error, occurs.

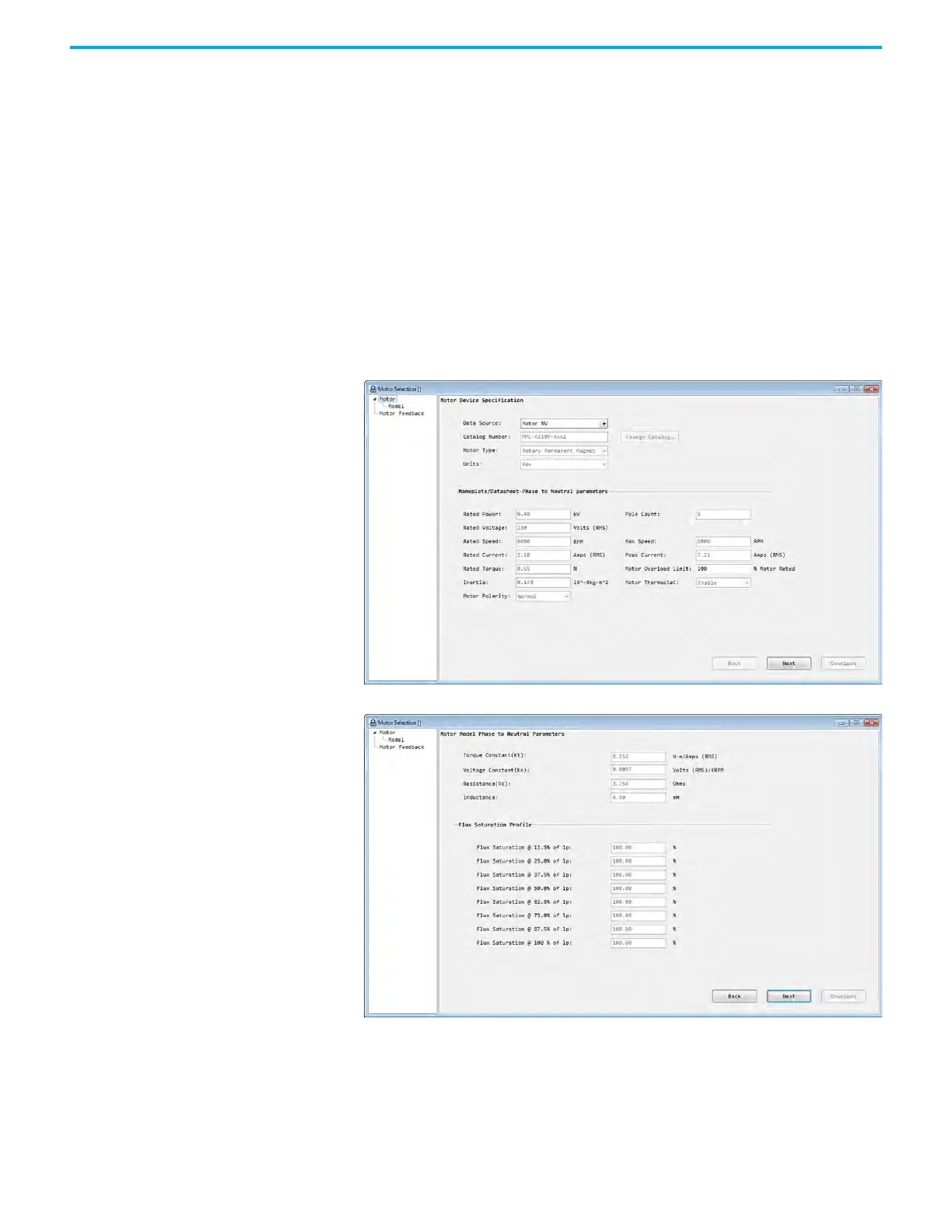

When Motor NV is selected as the data source, then all parameter data is
dimmed on the Motor Device Specification dialog box except for the Motor
Overload Limit field and the Next button.
1. Type an appropriate Motor Overload Limit and click Next.
2. On the Motor Model Phase screen, click Next.
