Chapter 7 Configure the Drive with KNX5100C Software

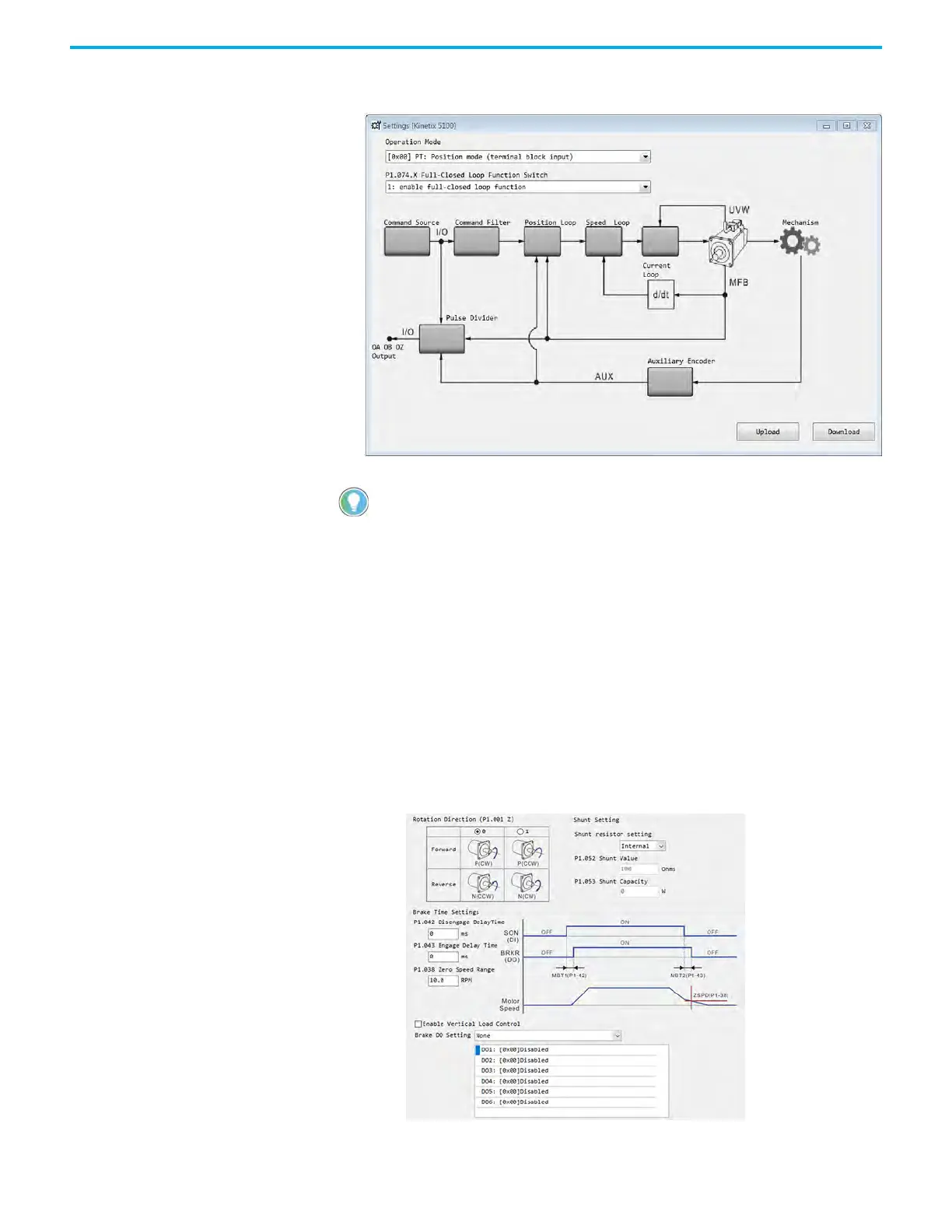

The Operation Mode block control loops change as values are selected from
both pull-down menus.
Configure General Settings
The General Setting page lets you configure parameters related to the motor,
shunt, and brake operation.
To access the General Setting page, perform the following steps.
1. From the Function List, select Start > Kinetix 5100 > Settings > General
Setting.
2. In General Settings, change the fields manually as needed.
Any changes to these settings require the motor to be disabled.
3. Click Download to send any changed parameters to the servo drive.
The gray boxes show the functions included in the each operation mode.
You can double-click a box to open a dialog box and to configure the related
functions.
To Next Page
