Rockwell Automation Publication 2198-UM004D-EN-P - December 2022 81
Chapter 4 Connect the Kinetix 5100 Drive System

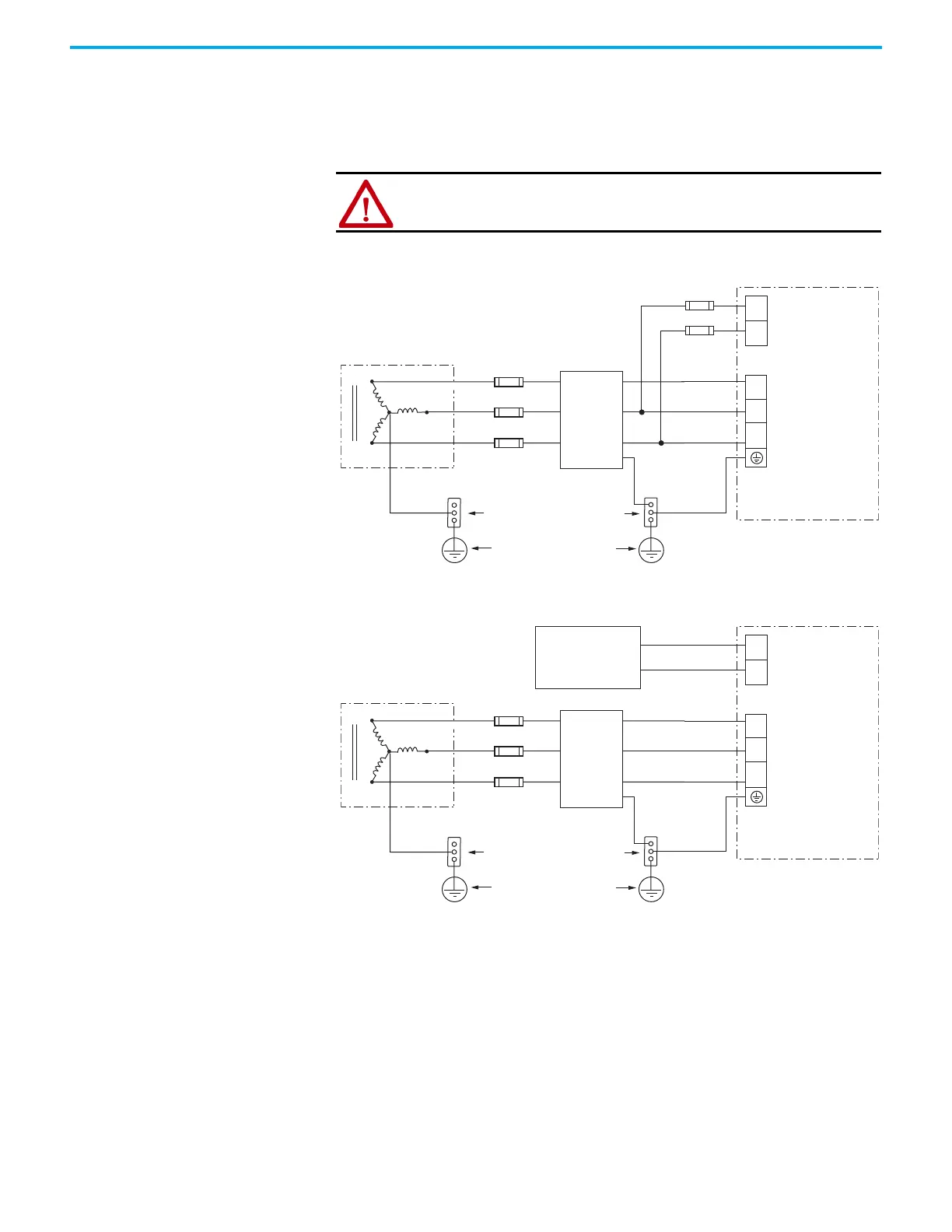

Three-phase Power Wired to Three-phase Drives
These examples illustrate grounded three-phase systems that are wired to
three-phase Kinetix 5100 drives.
Figure 45 - Three-phase (200…230V) Grounded Power Configuration (wye secondary)
Figure 46 - Three-phase (380…480V) Grounded Power Configuration (wye secondary)
ATTENTION: The power system must be center-grounded wye secondary
configuration for 230V AC and 480V AC mains.
L3
L2
L1
L3
L2
L1
E
L3
L2
L1
L3
L2
L1
2198-Exxxx-ERS
Servo Drives
L1C
L2C
Transformer (wye) Secondary
Mains AC Input
Power Connector
Bonded Cabinet Ground Bus
Ground Grid or
Power Distribution Ground
AC Line
Filter
Circuit
Protection
Feeder and branch short-circuit
protection is not illustrated.
Control AC Input
Power Connector
Circuit
Protection
L3
L2
L1
L3
L2
L1
E
L3
L2
L1
L3
L2
L1
2198-Exxxx-ERS
Servo Drives
24V-
24V+
Transformer (wye) Secondary
Mains AC Input
Power Connector
Bonded Cabinet Ground Bus
Ground Grid or
Power Distribution Ground
AC Line
Filter
Circuit
Protection
Feeder and branch short-circuit
protection is not illustrated.
Control Input
Power Connector
24V DC
Power Supply
(customer supplied)
