Rockwell Automation Publication 2198-UM004D-EN-P - December 2022 115
Chapter 5 Set Up EtherNet/IP Communication
Configure IP Address by
Using BOOTP-DHCP Tool
Follow these steps to configure the IP address.
1. Connect your PC with a Kinetix 5100 drive via Ethernet cable, and then
apply the power to the drive.

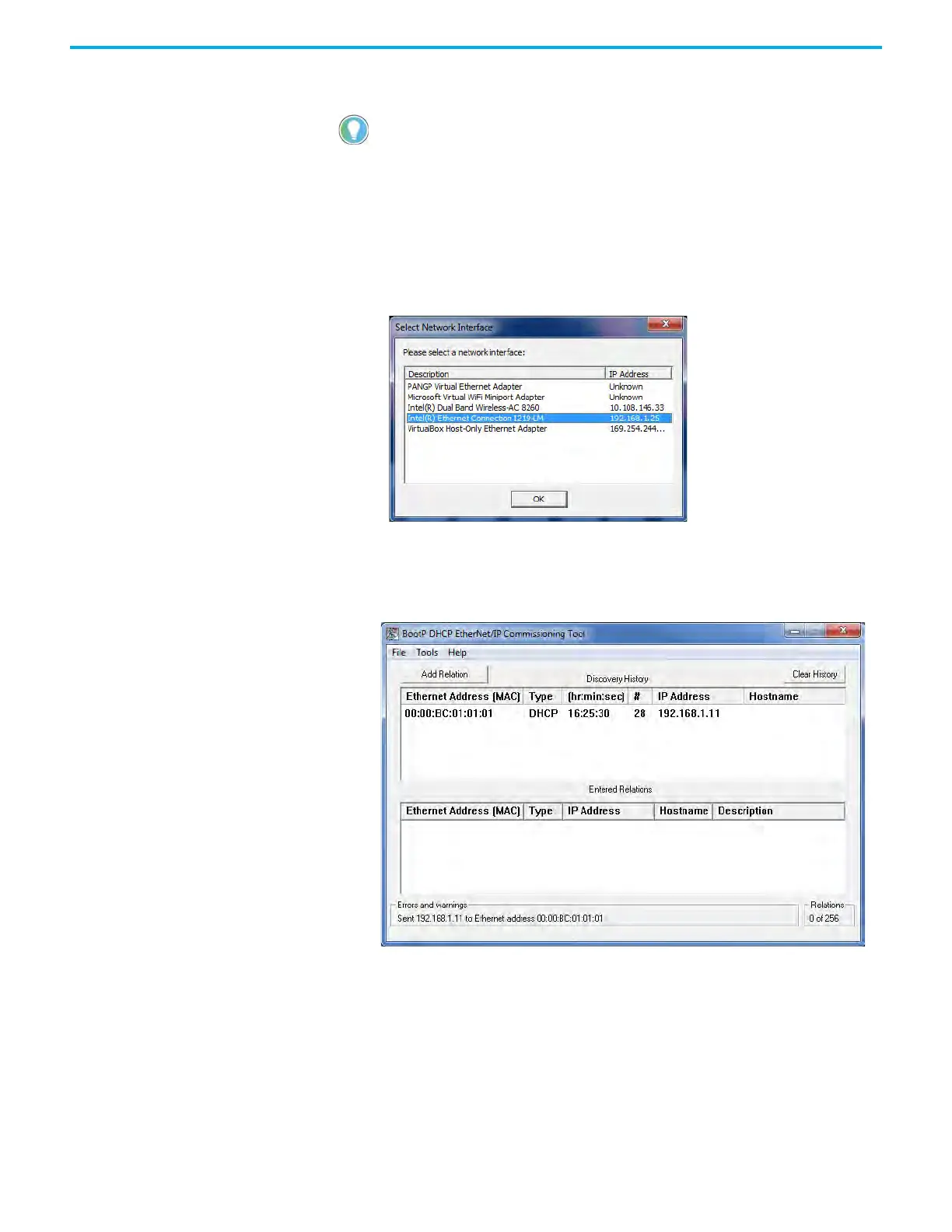

2. Open BOOTP-DHCP tool in your workstation, and select network
interface according to your environment as shown.
In this example, the IP address of workstation is 192.168.1.25.
The BOOTP-DHCP tool automatically scans the devices that are
configured to DHCP on the network, and displays the device MAC
addresses as shown.
You can find the MAC address of your drive on the drive label. In this
example, the MAC address 00:00:BC:01:01:01 is used.
The Kinetix 5100 drive supports DHCP only, not BootP. You can use other DHCP
server software to configure the IP address of the Kinetix 5100 drive. This
example shows a software tool called BootP-DHCP Tool, which is installed
together with the Studio 5000 application.
