452 Rockwell Automation Publication 2198-UM004D-EN-P - December 2022
Chapter 16 Troubleshoot the Kinetix 5100 Drive System
2. Click Save Changes if any changes are made, which are shown
subsequently on the Monitoring Items tab.

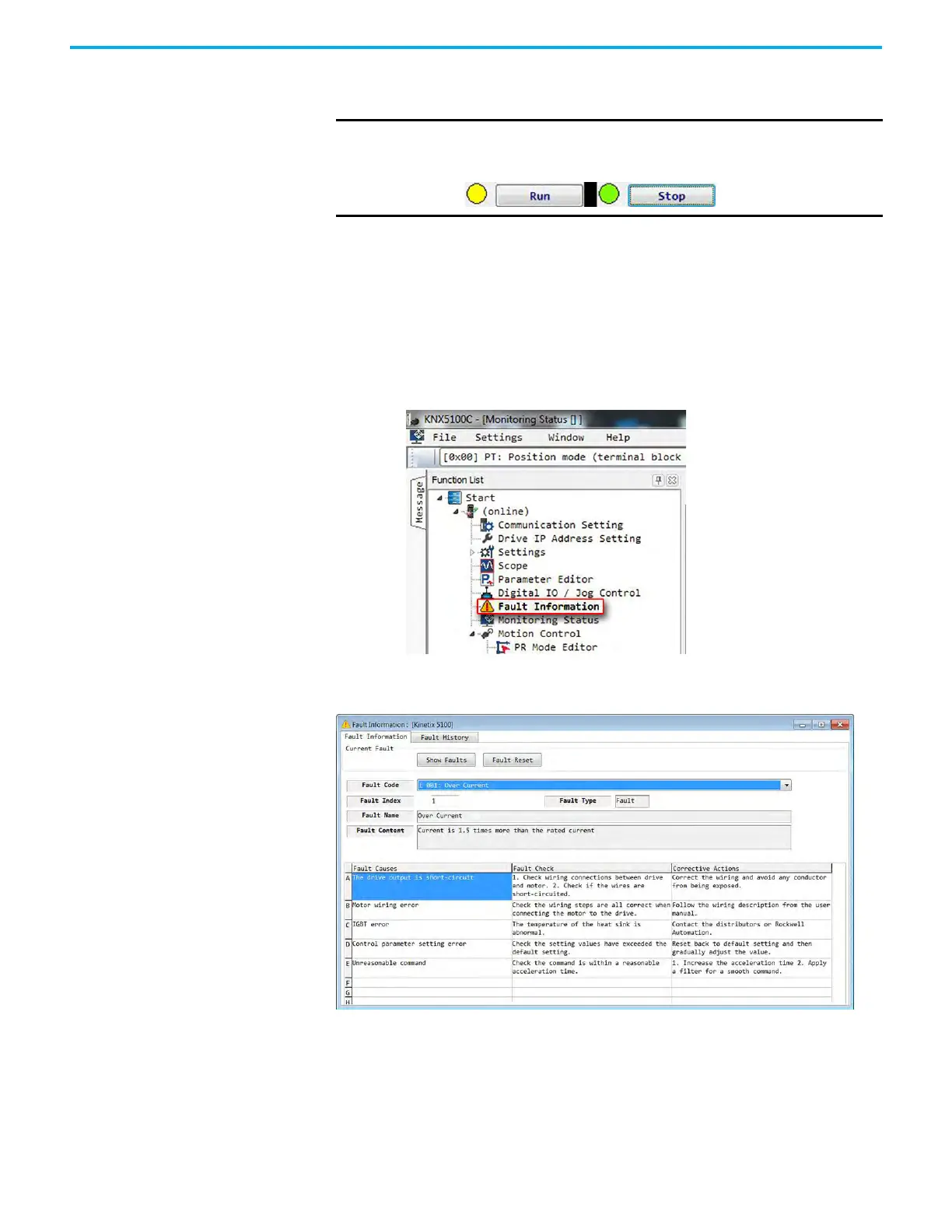

Fault Information in the KNX5100C Software
In the KNX5100C software, you can use Fault Information to identify any
faults of the servo drive.
To identify any faults, perform the following steps.
1. In the Function List of the KNX5100C software, click Fault Information.
On the Fault Information tab, the most current fault is shown with detailed
information, including possible causes and subsequent corrective actions.
2. Click either available button for the following reasons:
• Click Show Faults to refresh the current fault information.
• Click Fault Reset to reset fault and remove the current list of fault
information if fault is cleared.
IMPORTANT
Click Run to run the Monitoring Status function. If you do, the same
button toggles to Stop, which you then click when you want to stop
the monitoring status.
