Rockwell Automation Publication 2198-UM004D-EN-P - December 2022 125
Chapter 6 Use the Keypad Interface

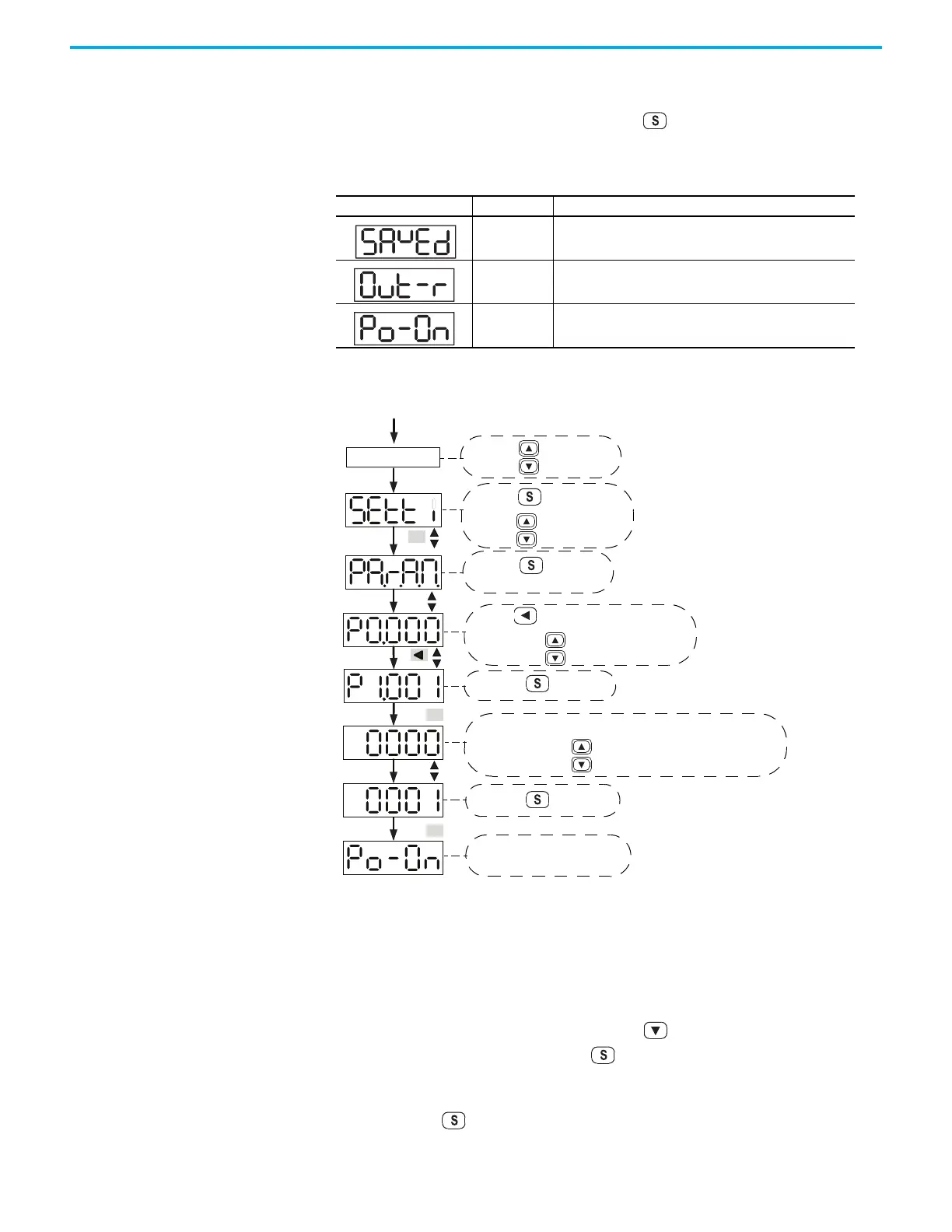

Save Display
When you have set the parameter, press the key to save. The display shows
one of the following symbols for one second.
Example
Reset the Drive via Keypad
To reset the drive, perform the following steps.
1. From the Parameter display, press the key to get to the Reset display.
2. On the Reset display, press the key.
The reset string blinks.
3. Press the key again.
Table 69 - Parameter Status Display
Displayed Symbol Meaning Description
Saved Correctly saved the setting value.
Out of Range Incorrect value or the input is reserved for this value.
Power On
The parameter will be effective after the servo drive is re-
powered.
S
S
S
Power On
Stand by Display
Press key for Set menu.
Press key to select and
press keys for Parameter
Press key to select.
ID100 (P0.000) is displayed.
Press key to select.
Power cycle the Kinetix 5100 to
activate the ControlMode setting.
Press key to navigate to ID116 (P1.000).
Then press keys to for ID117 (P1.001).
It displays the current value of the ControlMode ID117 (P1.001)
parameter. Use the key change the value to required setting.
Press key to select.
To Next Page
