450 Rockwell Automation Publication 2198-UM004D-EN-P - December 2022
Chapter 16 Troubleshoot the Kinetix 5100 Drive System
View Status and Faults

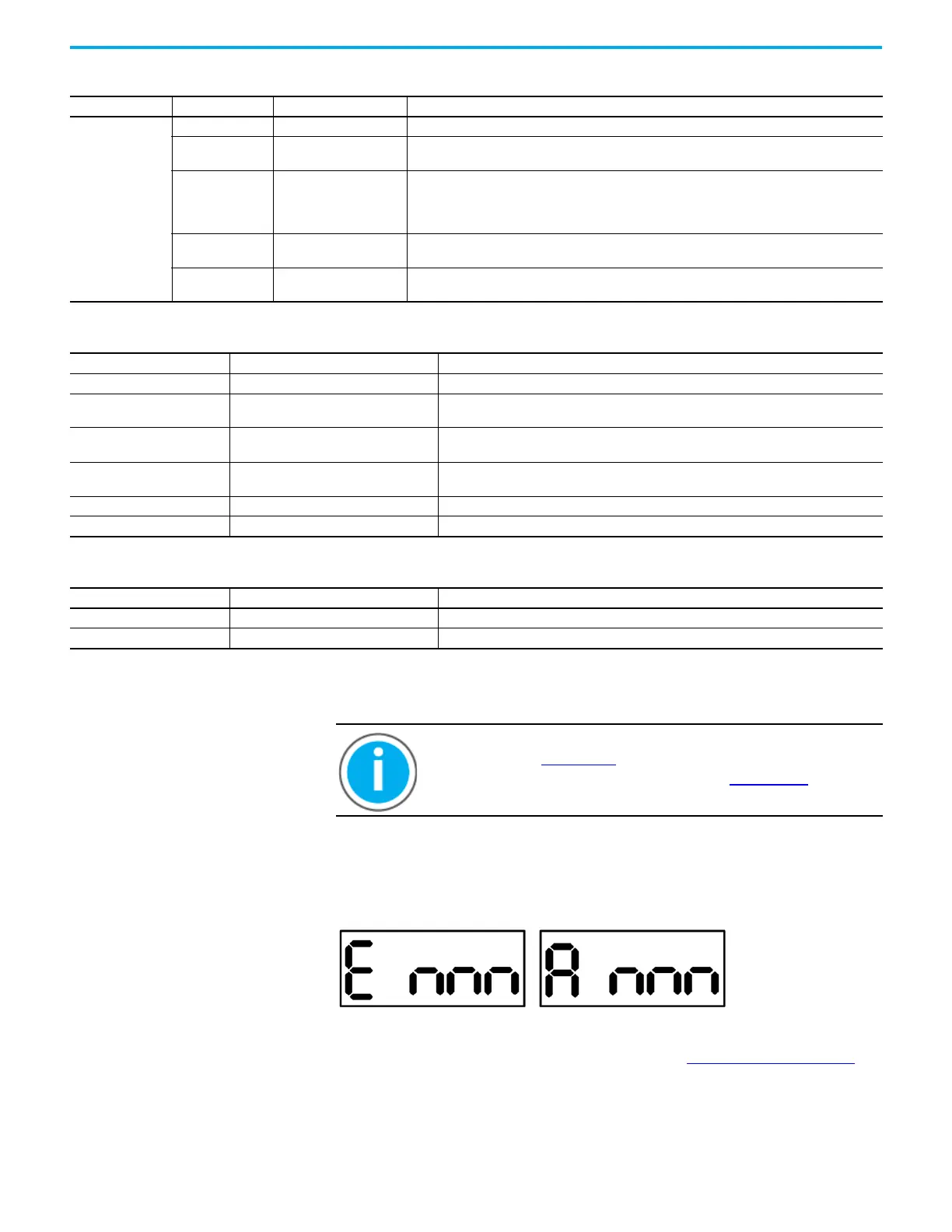

Drive Fault Code Display
The drive display panel indicates a fault or warning on the display.
For more information on faults and warnings, see Clear Faults
on page 454.
Standalone
Steady off No power If no power is supplied to the device, the module status indicator shall be steady off.
Steady green Device operational
If the device is operating correctly (after the drive boots successfully), the module status indicator
shall be steady green.
Flashing red
Major recoverable fault or
Minor recoverable fault
If the device has detected a major or minor recoverable fault, the module status indicator shall be
flashing red.
IMPORTANT: An incorrect or inconsistent configuration could be considered a major recoverable
fault.
Steady red Major unrecoverable fault
If the device has detected a major unrecoverable fault, the module status indicator shall be steady
red.
Flashing green/red Self-test
While the device is performing its power up testing, the module status indicator shall be flashing
green/red.
Table 141 - MOD LED Status Indicators (Continued)
Operation Mode LED Color Status Description
Table 142 - NET LED Status Indicators
LED Color Status Description
Steady off No power or no IP address The device is powered off, or is powered on but with no IP address configured.
Steady green Connected
An IP address is configured, at least one CIPâ„¢ connection (any transport class) is
established, and an Exclusive Owner connection has not timed out.
Flashing green Not connected
An IP address is configured but no CIP connections are established, and an Exclusive Owner
connection has not timed out.
Flashing red Connection timeout
An IP address is configured, and an Exclusive Owner connection where this device is the
target has timed out.
Steady red A duplicate IP address has been identified The device has detected that (at least one of) its IP address is already in use.
Flashing green/red Self-test While the device performs its power up testing.
Table 143 - CHARGE LED Status Indicators
LED Color Status Description
Steady off No power When no power is supplied to the device.
Steady orange DC bus voltage operational When the DC bus voltage is above 50V DC.
This manual links to Kinetix® 5100 Servo Drive Fault Codes Reference
Data, publication 2198-RD001
, for fault codes and Kinetix 5100 Servo
Drive Parameters Reference Data, publication 2198-RD002
, for
parameters. Download the spreadsheets now for offline access.
