Appendix B Upgrade Kinetix 5100 Drive Firmware
17. Click OK.

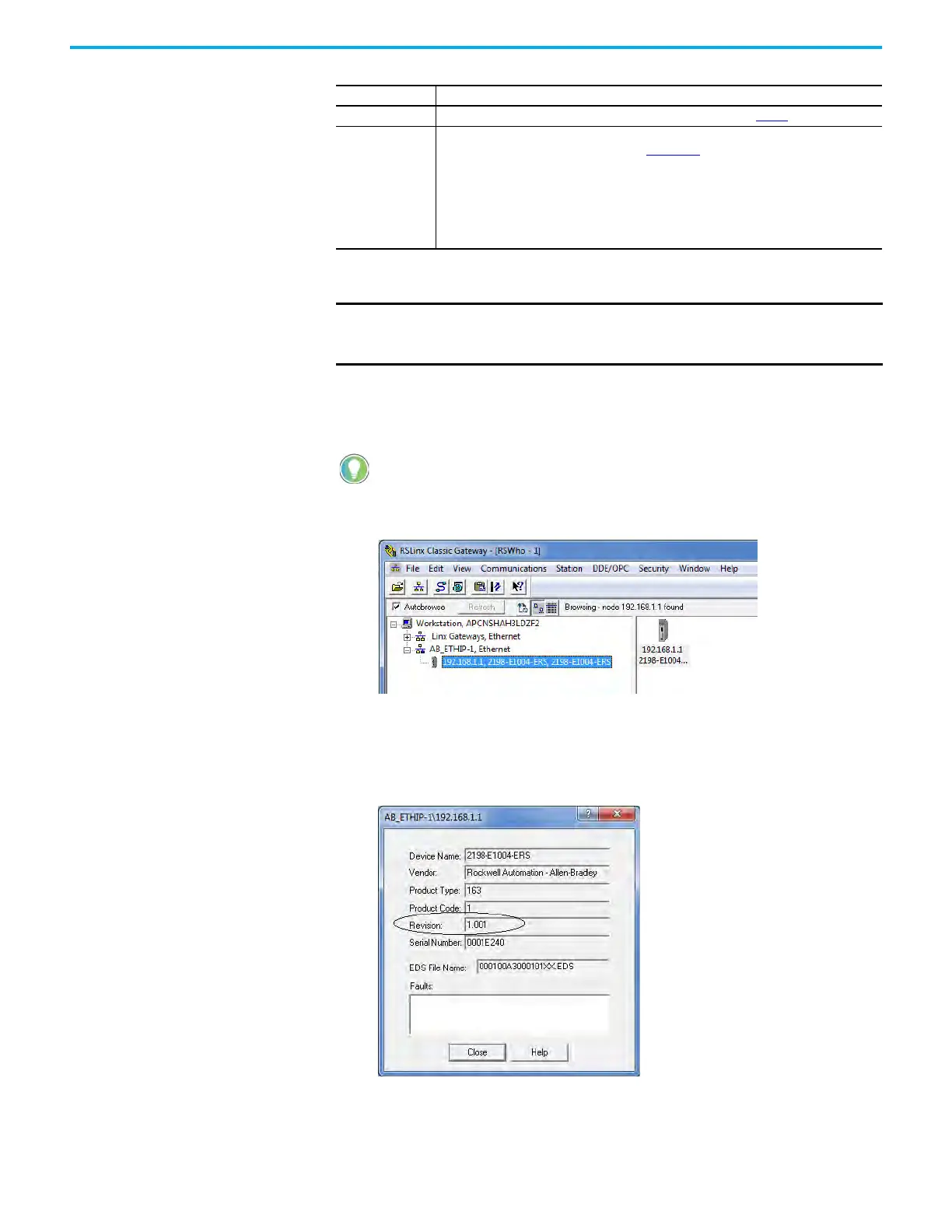

Verify the Firmware
Upgrade
Follow these steps to verify that your firmware upgrade was successful.
1. Open your RSLinx software.
2. From the Communications menu, choose RSWho.
3. Expand your Ethernet node, Logix backplane, and EtherNet/IP network
module.
4. Right-click the drive module and choose Device Properties.
The Device Properties dialog box appears.
5. Verify the new firmware revision level.
6. Click Close.
Upgrade Status If
Success Update complete appears in a GREEN Status dialog box, then go to step 17
.
Failure
Update failure appears in a RED Status dialog box, then see the ControlFLASH Firmware
Upgrade Software User Manual, publication 1756-UM105
for troubleshooting information.
IMPORTANT: If the power is lost during the firmware upgrade, the update fails. When the
power is restored, three different situations happen depending on when the power went off.
• Panel display shows UPt 1: Update the firmware again.
• Panel display is blank:, The drive automatically finishes the last firmware update in 20
seconds, then it resets to complete the update.
• Panel display shows UPt 3: Update the firmware again.
IMPORTANT
If you checked Inhibit Module on the Connection tab in Module
Properties, you must clear the Inhibit Module check box before
resuming normal operation.
Verifying the firmware upgrade is optional.
