Rockwell Automation Allen-Bradley Kinetix 5100 User Manual

Rockwell Automation Publication 2198-UM004D-EN-P - December 2022 255
Chapter 10 Modes of Operation

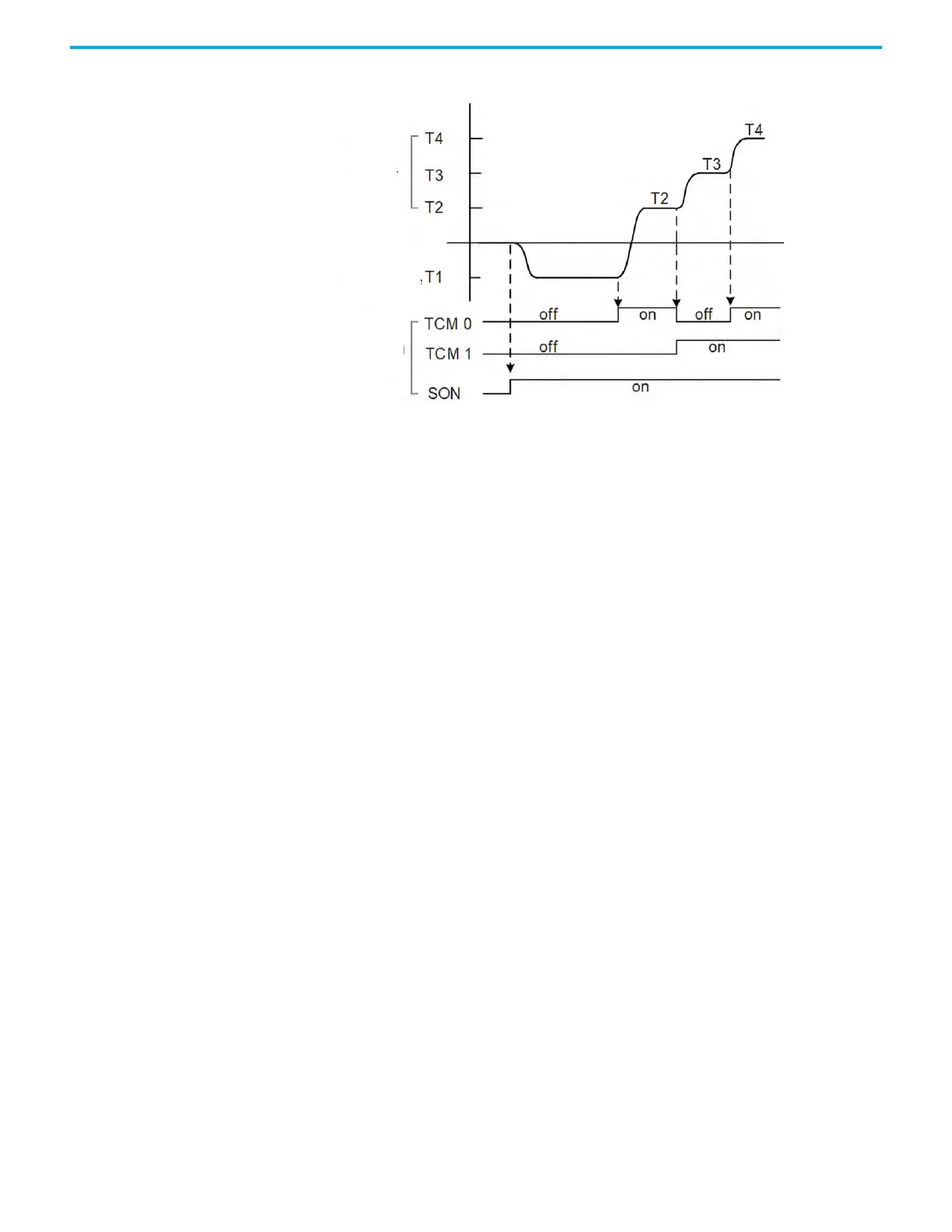

Torque Mode Timing
• Off signifies the contact is open while on signifies the contact is closed.
• When it is in Tz mode, the torque command T1 equals 0; when it is in T
mode, the torque command T1 is the external analog voltage input.
• In the servo-on (SON) state, the command is selected according to the
state of DI.TCM0 and DI.TCM1 inputs.
R
e
g
i
s
t
e
r
E
x
t
e
r
n
a
l
a
n
a
l
o
g
v
o
l
t
a
g
e
o
r
z
e
r
o
E
x
t
e
r
n
a
l
D
I
/
O
