Rockwell Automation Publication 2198-UM004D-EN-P - December 2022 195
Chapter 8 Configure the Drive in Studio 5000 Logix Designer Application
4. Configure the new drive.
a. Type the drive Name.
b. Select an Ethernet Address option.
In this example, the Private Network address is selected.
c. Enter the address of your 2198-Exxxx-ERS drive.
In this example, the last octet of the address is 2.
d. Under Module Definition click Change.

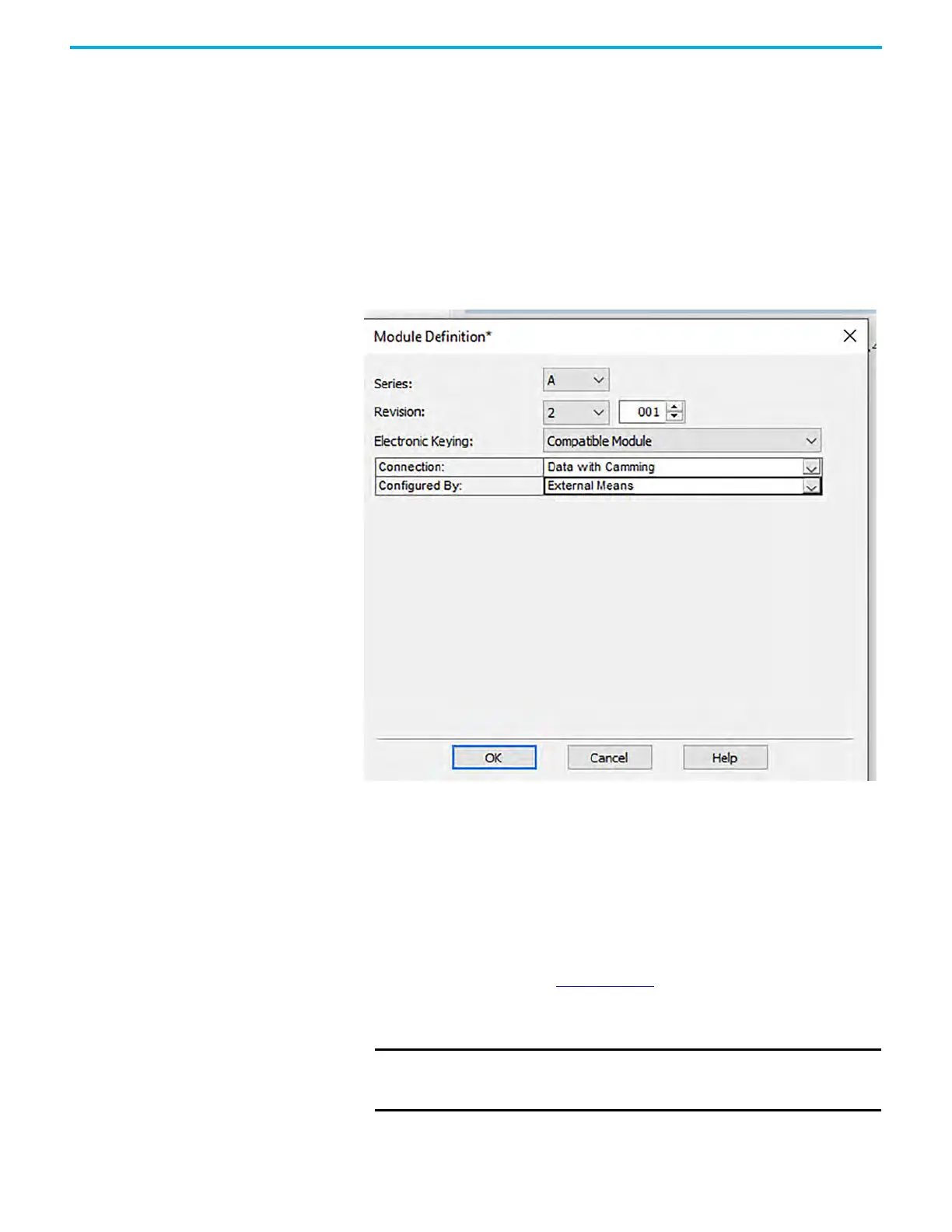

The Module Definition dialog box appears.
e. Set Series and Revision to match your drive.
f. Choose an Electronic Keying option.
The electronic keying feature automatically compares the expected
module, as shown in the configuration tree, to the physical module
before communication begins. We recommend using either `Exact
Match' or `Compatible Keying'. You cannot use Disable keying with
safety applications. For more information about electronic keying, see
the Electronic Keying in Logix 5000 Control Systems Application
Technique, publication LOGIX-AT001
.
g. From the Connection pull-down menu, choose the Connection mode
for your motion application.
IMPORTANT For new applications, it is typical to use Data with Camming. For
legacy applications, use the following guidance to choose Data
or Data with Camming.
