Diagnostic information 2-77
5062
4

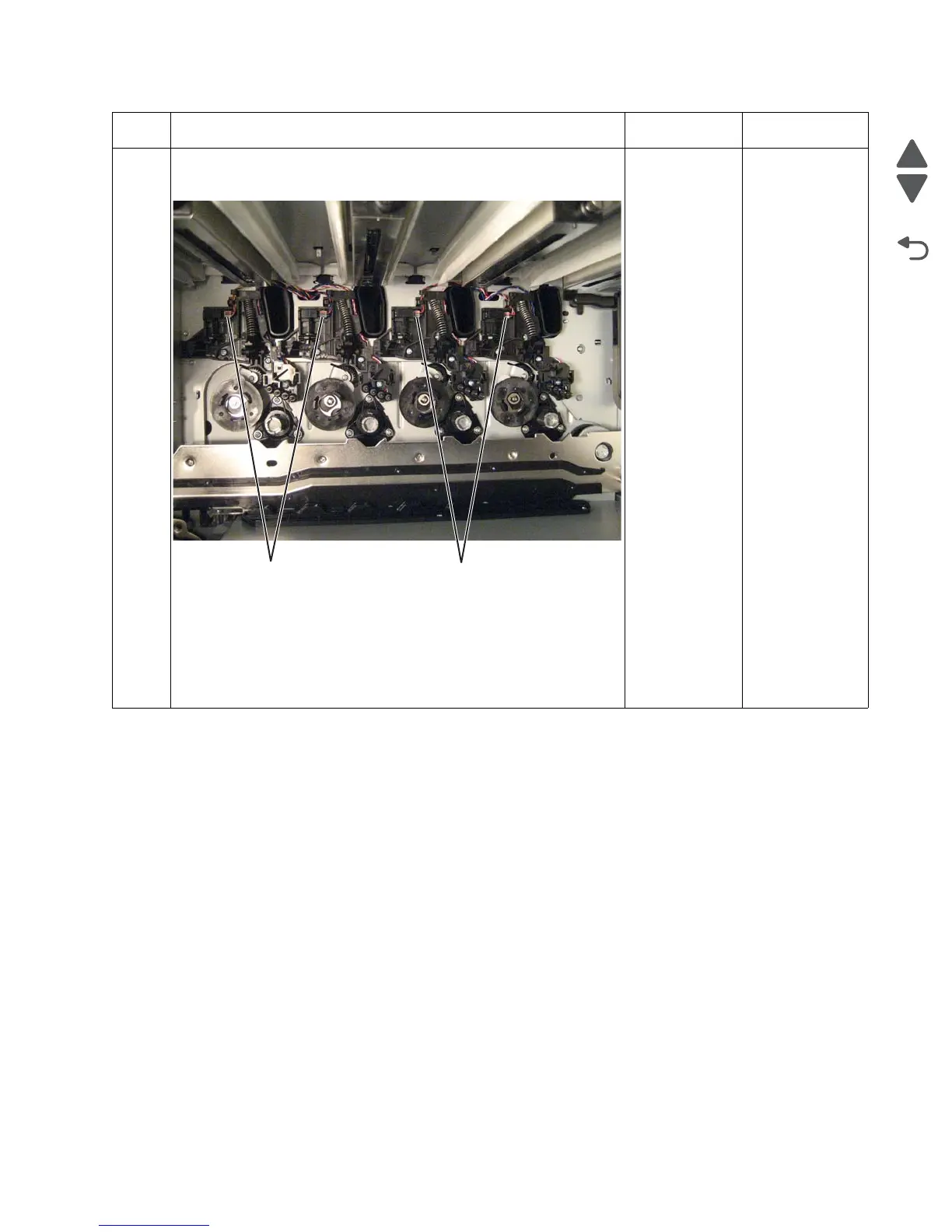

Check the cables in connectors JCMKM1 and JCMCY1 for damage,
and then remove all four cartridges and check the other ends of the
cables connected to the sensors on the memory blocks.
133.01 Black—B (JCMKM1)
133.02 Cyan—A (JCMCY1)
133.03 Magenta—B (JCMKM1)
133.04 Yellow—A (JCMCY1)
Is either cable damaged?
Replace the
cable.
Go to step 3.
Step Questions / actions Yes No
To Next Page
