Rockwell Automation Publication 2198-UM004D-EN-P - December 2022 297

Chapter 11 Motion Control in PR Mode

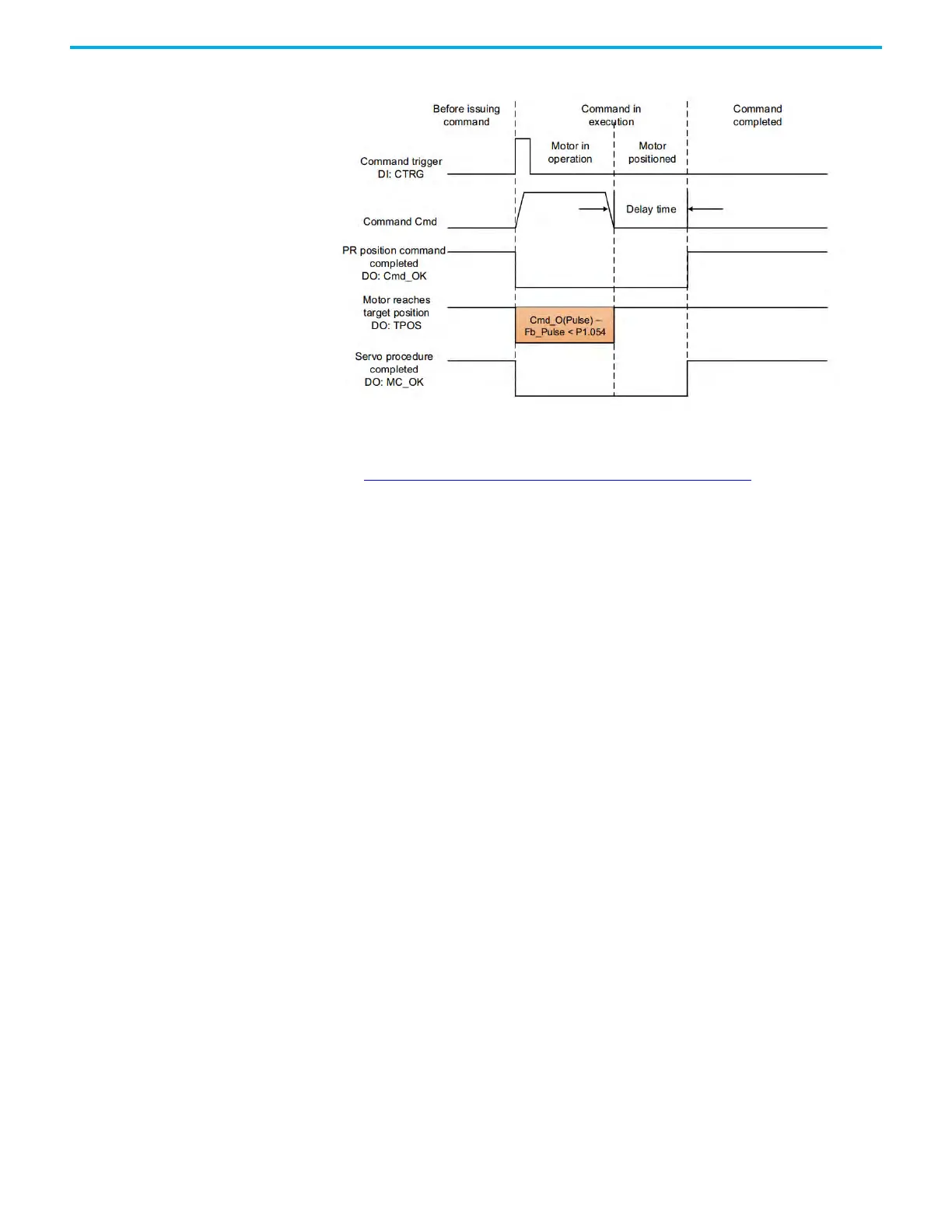

Figure 107 - Operation of DI and DO Signals in PR Mode(including delay time)

See Description of System Variable Monitoring on page 440 for more

information.
