462 Rockwell Automation Publication 2198-UM004D-EN-P - December 2022
Appendix A Interconnect Diagrams
In this example, the 2198-E4020-ERS,2198-E4030-ERS, 2198-E4055-ERS, 2198-
E4075-ERS, and 2198-E4150-ERS drives are wired for 480V three-phase
operation.

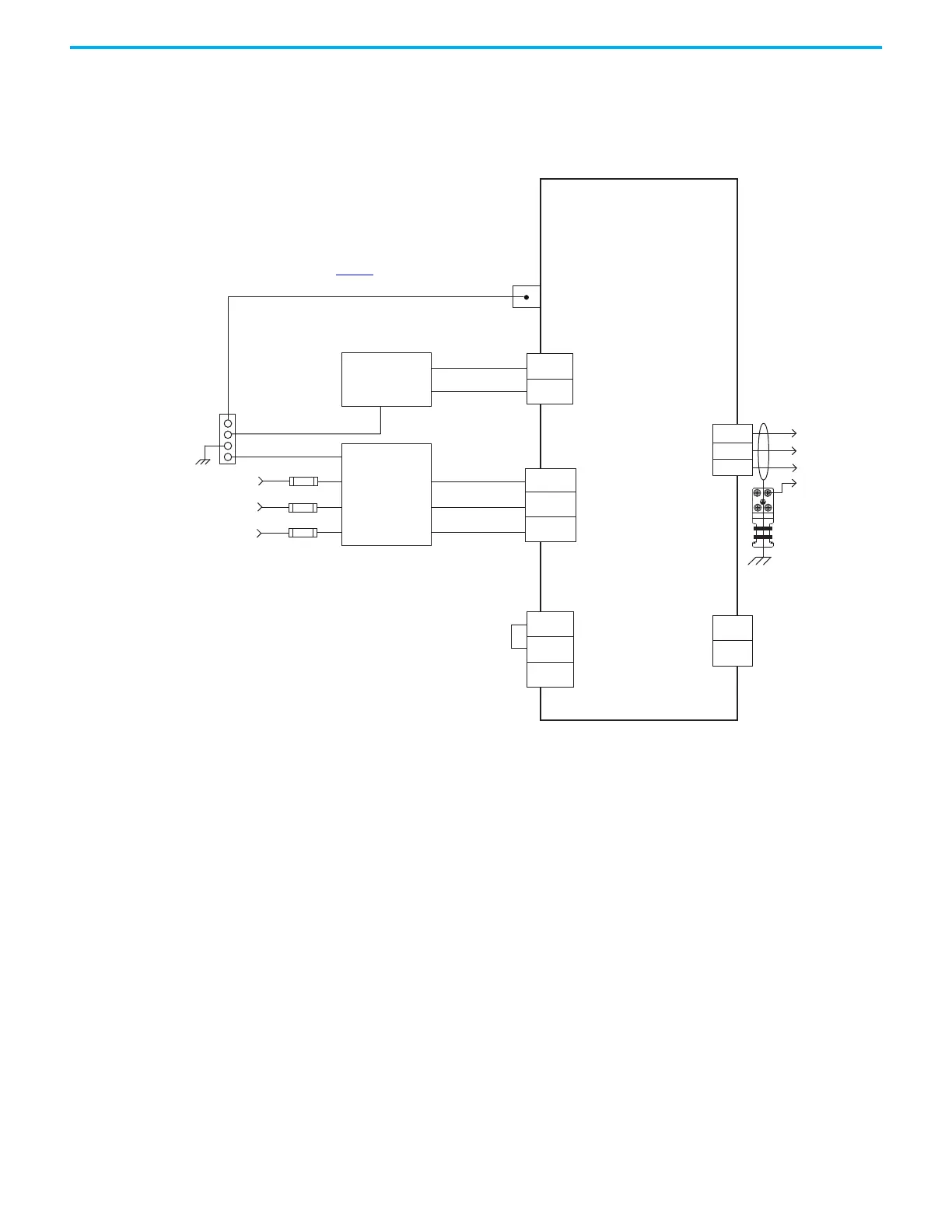

Figure 242 - Kinetix 5100 Drive (480V three-phase input power)
U
V
W
DC+
ESH
L3
L2
L1
P1
P2
DC–
24V+
24V-
Three-phase AC Input
480V rms AC, 50/60 Hz
Notes 1, 5
Bonded Cabinet
Ground Bus *
Mains
AC Input Power
Connector
Circuit
Protection*
Motor Power
Connector
2198-E4020-ERS, 2198-E4030-ERS,
2198-E4055-ERS, 2198-E4075-ERS,
and 2198-E4150-ERS
Kinetix 5100 Servo Drives
* Indicates Customer Supplied Component
See table on page 457
for note information.
AC Line Filter
Note 6
Three-phase
Motor Power
Connections
Note 13
Ground Plate
Note 11
PE (mounting screw)
Note 12
Note 2
External
Passive Shunt
Connector
Control Input Power
Connector
Note 4
Chassis
Customer Supplied
+24V DC
Power Supply *
To Next Page
