Appendix E Use the Scope Function in KNX5100C Software

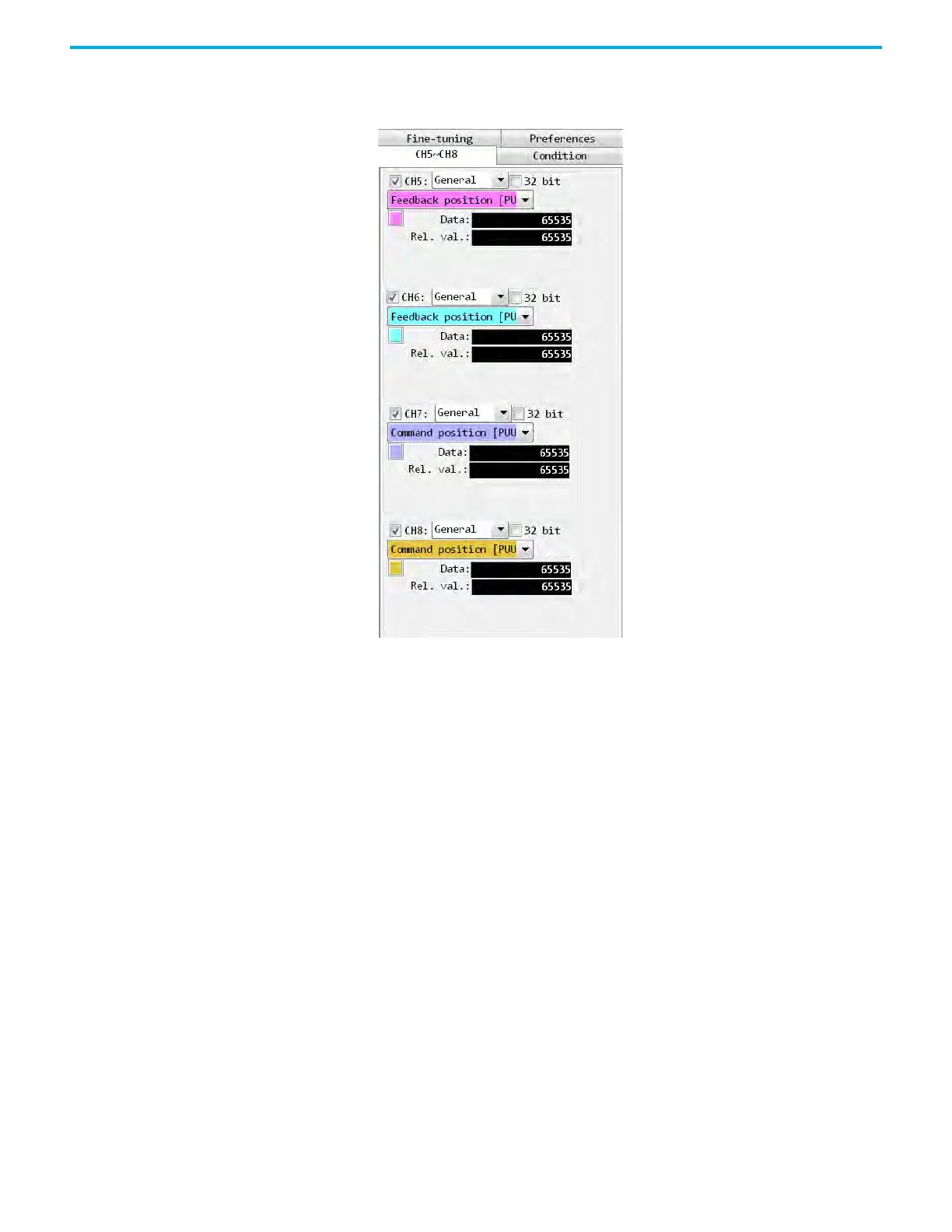

• CH 5…8: This function is only available for 8K baud-rate enabled. You can

observe all eight channels of data. Channels 5…8 function the same as

Channels 1…4.
