Chapter 1 Shelf Assembly Hardware

1.9 ONS 15454 ANSI Alarm Expansion Panel

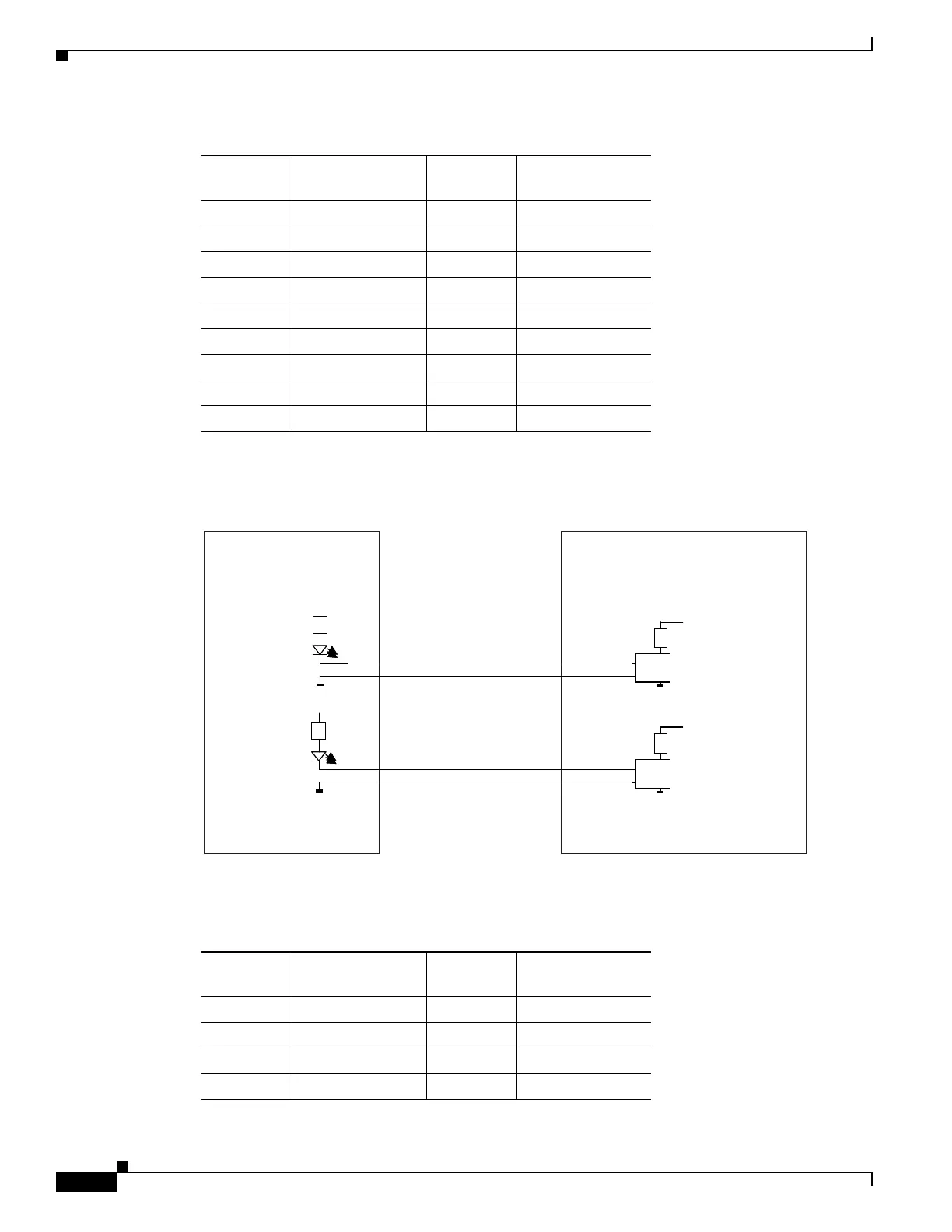

Figure 1-35 is a circuit diagram of the alarm outputs. (Outputs 1 and 16 are shown in the example.)

Figure 1-35 Alarm Output Circuit Diagram

Use the pin numbers in Table 1-8 to connect to the external elements being switched by external controls.

18 ALARM_IN_23– 44 ALARM_IN_24–

19 ALARM_IN_25– 45 GND

20 GND 46 ALARM_IN_26–

21 ALARM_IN_27– 47 ALARM_IN_28–

22 ALARM_IN_29– 48 GND

23 GND 49 ALARM_IN_30–

24 ALARM_IN_31– 50 —

25 ALARM_IN_+ 51 GND1

26 ALARM_IN_0– 52 GND2

Table 1-7 Alarm Input Pin Association (continued)

AMP Champ

Pin Number Signal Name

AMP Champ

Pin Number Signal Name

78474

Station

max. 60 V/100 mA

AEP/AIE

Output 1

Output 16

Table 1-8 Pin Association for Alarm Output Pins

AMP Champ

Pin Number Signal Name

AMP Champ

Pin Number Signal Name

1— 27COM_0

2 COM_1 28 —

3 NO_1 29 NO_2

4— 30COM_2
