12-18
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 12 Cisco Transport Controller Operation
12.5.4 Card View
consolidation sorts links by class, meaning that all DCC links are consolidated together, for example.You
can access individual links within consolidated links using the right-click shortcut menu.Each link has
an associated icon (Table 12-13).
Note Link consolidation is only available on non-detailed maps. Non-detailed maps display nodes in icon
form instead of detailed form, meaning that the nodes appear as rectangles with ports on the sides. Refer
to the Cisco ONS 15454 DWDM Procedure Guide for more information about consolidated links.
12.5.4 Card View
The card view provides information about individual ONS 15454 cards. Use this window to perform
card-specific maintenance and provisioning (Figure 12-8). A graphic showing the ports on the card is
shown in the graphic area. The status area displays the node name, slot, number of alarms, card type,
equipment type, card status (active or standby), card service state if the card is present, and port service
state (described in Table 12-7 on page 12-12). The information that appears and the actions that you can
perform depend on the card. For more information about card service states, refer to Appendix B,
“Administrative and Service States.”

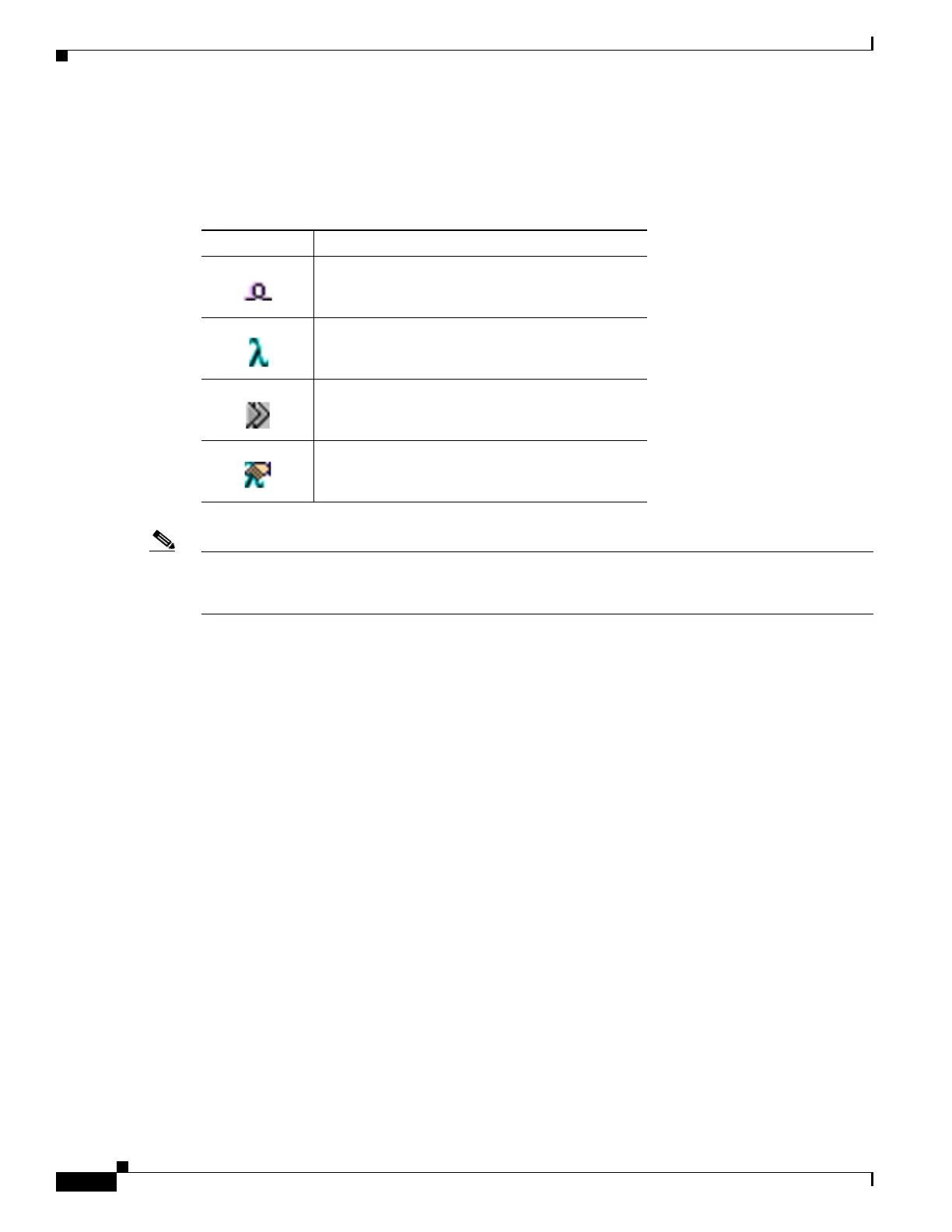

Table 12-13 Link Icons
Icon Description
DCC icon
GCC icon
OTS icon
PPC icon
