Cisco ONS 15454 DWDM Reference Manual

10-8
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 10 Network Reference
10.2.3 Mesh Networks

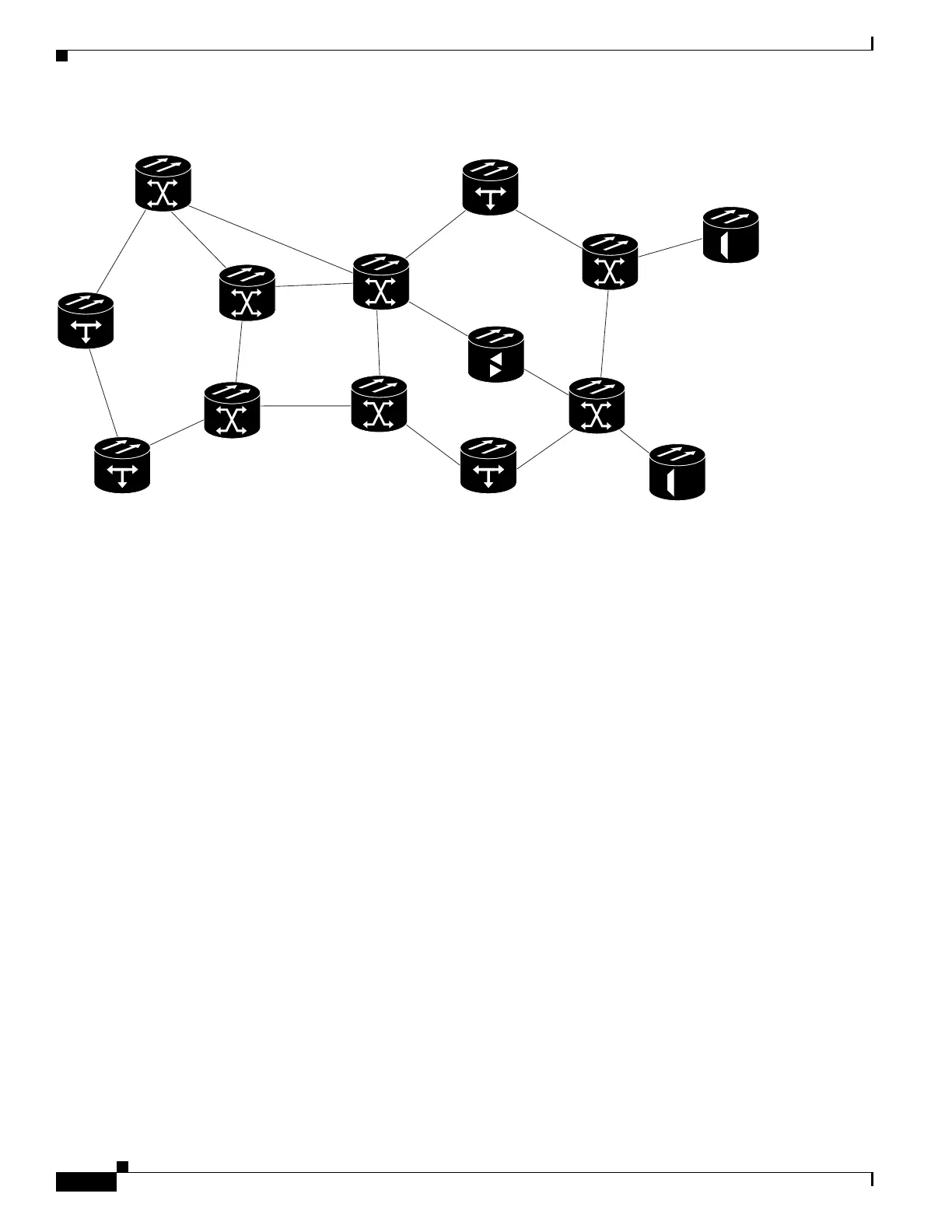

Figure 10-8 Mesh Network
In a multiring mesh network (Figure 10-9), several rings are connected with four-degree or eight-degree
mesh nodes. The intermediate ROADM nodes are equipped with MMU cards. All wavelengths can be
routed among two or more rings using a 40-WXC-C card without any optical-electrical-optical (OEO)
regeneration. As in a native mesh network, is possible to combine 40-WSS-C/40-WSS-CE , 40-WXC-C,
and 32WSS cards in the same multiring network without impacting system performance. For nodes
equipped with 32WSS cards, maximum system capacity is limited to 32 channels. A terminal node is
connected to a multiring node as a spur.
For information on node configurations for both native mesh and multiring networks, see the
“9.4 Configuring Mesh DWDM Networks” section on page 9-30.
159494
OLA
Terminal
N-degree
mesh
N-degree
mesh
N-degree
mesh
N-degree
mesh
N-degree
mesh
N-degree
mesh
N-degree
mesh
ROADM
ROADM
ROADM
ROADM
Terminal

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
