Chapter 1 Shelf Assembly Hardware
1.12 Cable Routing and Management

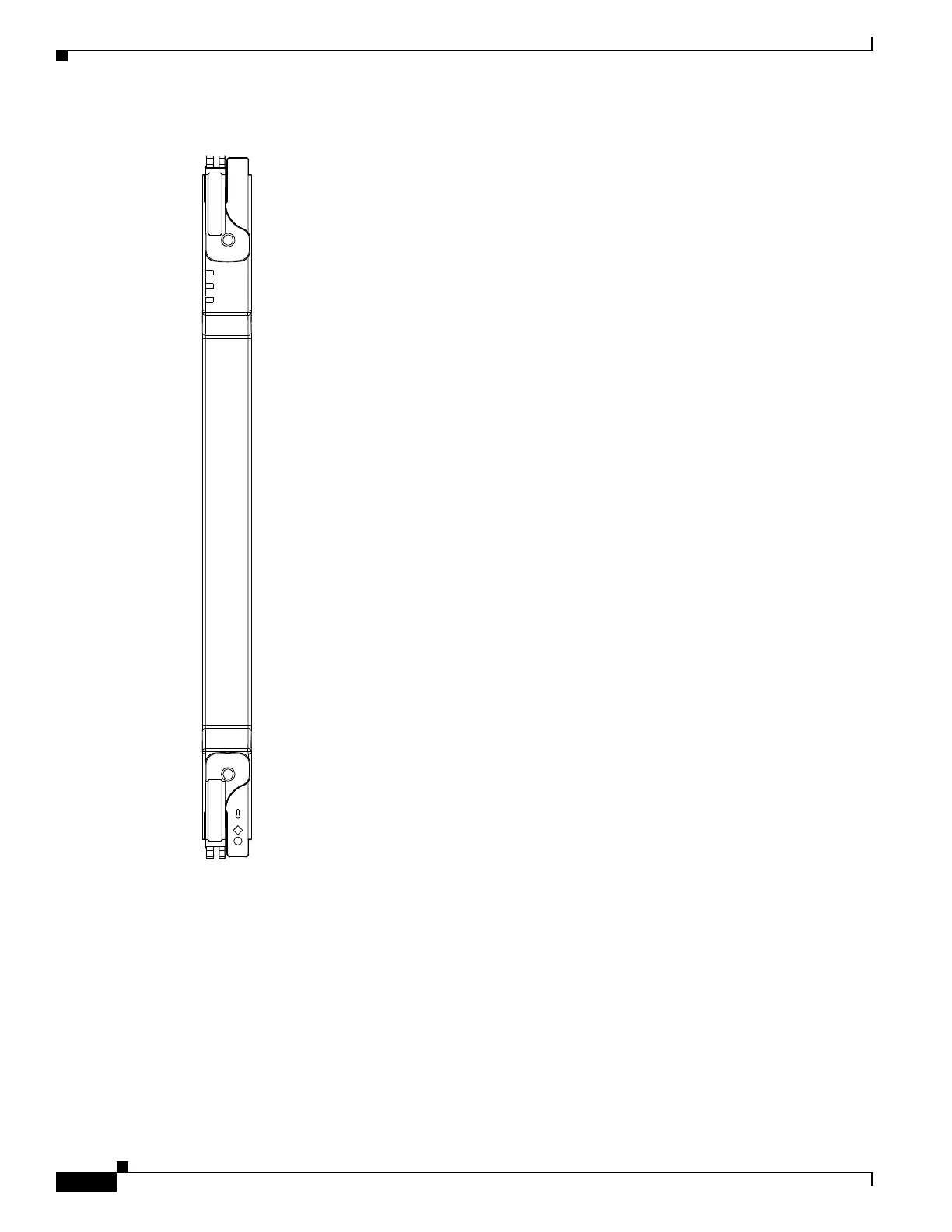

Figure 1-38 Filler Card Faceplate
1.12 Cable Routing and Management
The ONS 15454 cable management facilities include the following:
• Fiber patch panels
• A cable-routing channel (behind the fold-down door) that runs the width of the shelf assembly
(Figure 1-39 on page 1-41)
• Plastic horseshoe-shaped fiber guides at each side opening of the cable-routing channel that ensure
that the proper bend radius is maintained in the fibers (Figure 1-40 on page 1-42)
124234
FILLER

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
