9.1.3 OADM Node

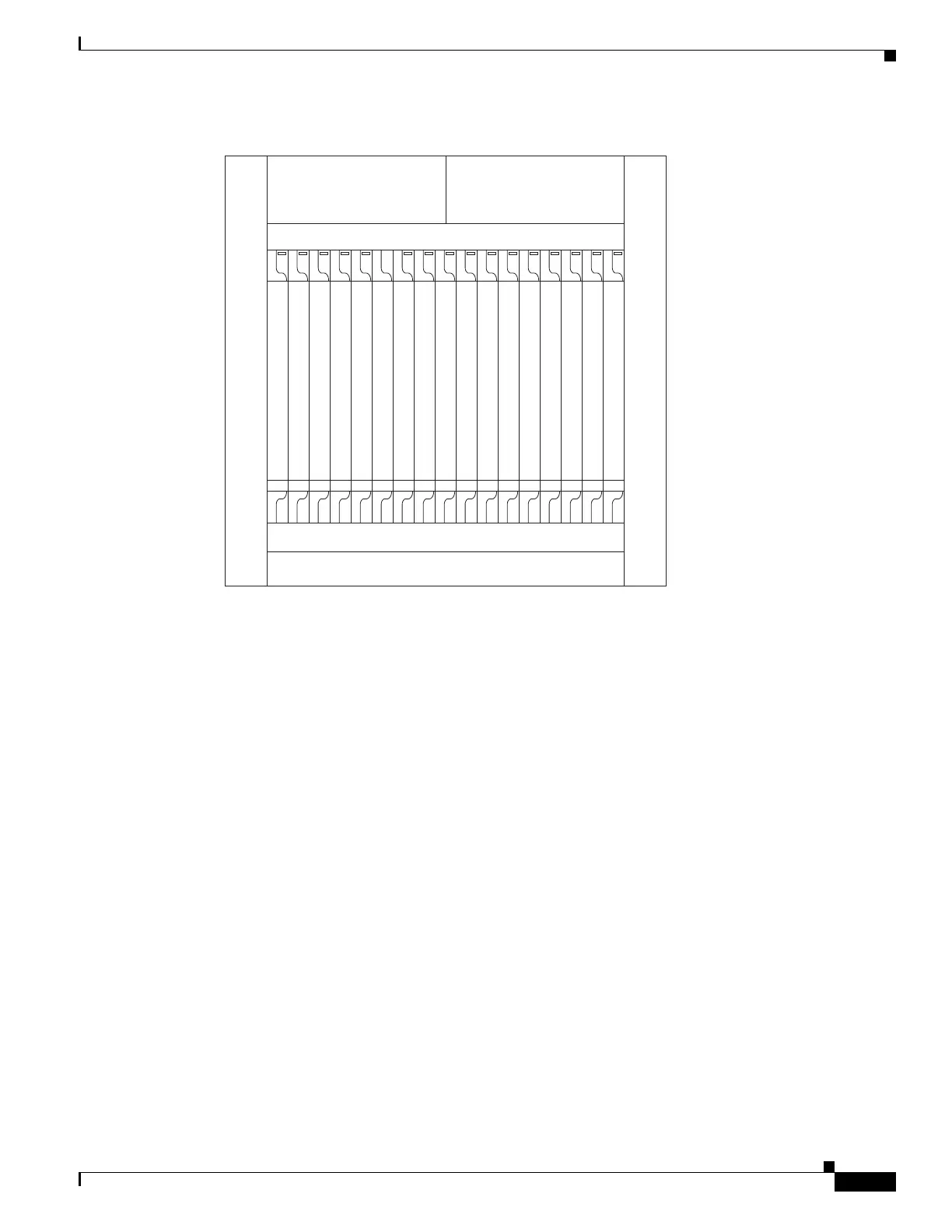

Figure 9-7 Amplified OADM Node Configuration Example
Figure 9-8 shows an example of the channel flow on the amplified OADM node. Since the
32-wavelength plan is based on eight bands (each band contains four channels), optical adding and
dropping can be performed at the band level and/or at the channel level (meaning individual channels
can be dropped).
OPT-BST
OPT-PRE
OADM or mux/demux
DCU
Air ramp
DCU
OADM or mux/demux
OADM or mux/demux
OADM or mux/demux
TCC2/TCC2P
OSCM
OSCM
TCC2/TCC2P
OADM
OADM or mux/demux
OADM or mux/demux
OPT-PRE
OPT-BST
OADM
AIC-I
