Chapter 9 Node Reference
9.1.4 ROADM Node
Figure 9-13 shows an example of an ROADM node with 32WSS-L and 32DMX-L cards installed.

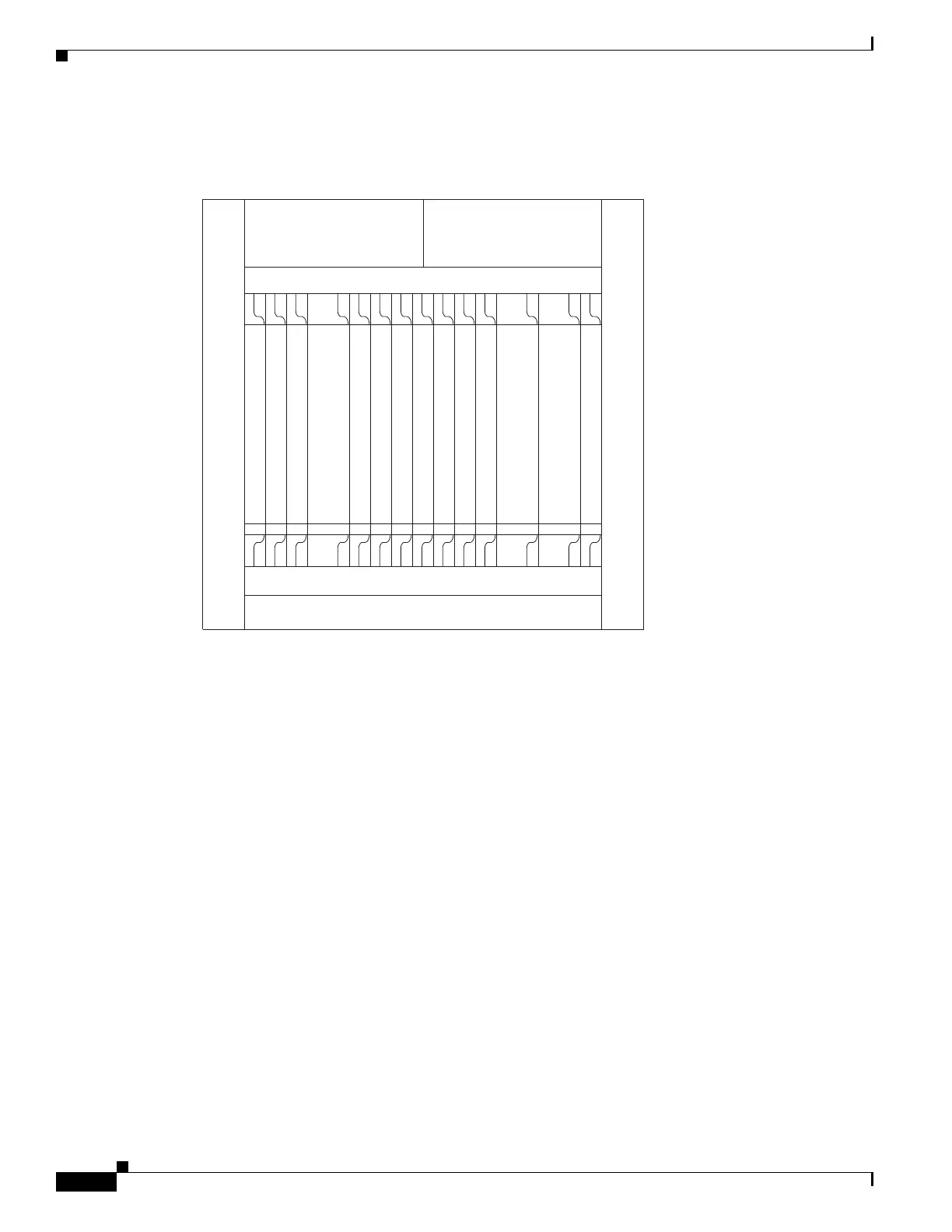

Figure 9-13 ROADM Node with 32WSS-L and 32DMX-L Cards Installed
Figure 9-14 shows an example of an ROADM optical signal flow from Side A to Side B. The optical
signal flow from Side B to Side A follows an identical path through the Side B OSC-CSM and 32WSS
or 40-WSS-C cards. In this example, OSC-CSM cards are installed so OPT-BSTs are not needed.
151737
DCU
Air ramp
DCU
Available
Available
32DMX-L
32DMX-L OPT-BST-L or OSC-CSM
OPT-PRE
MMU
32-DMX
TCC2 M
OSCM or Blank
OSCM or Blank
TCC2P
32-DMX
MMU
OPT-PRE
OPT-BST-L or OSC-CSM
AIC-I
OPT-AMP-L 32WSS-L 32WSS-L

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
