Cisco ONS 15454 DWDM Reference Manual

15-48
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 15 Management Network Connectivity
15.8 TCP/IP and OSI Networking

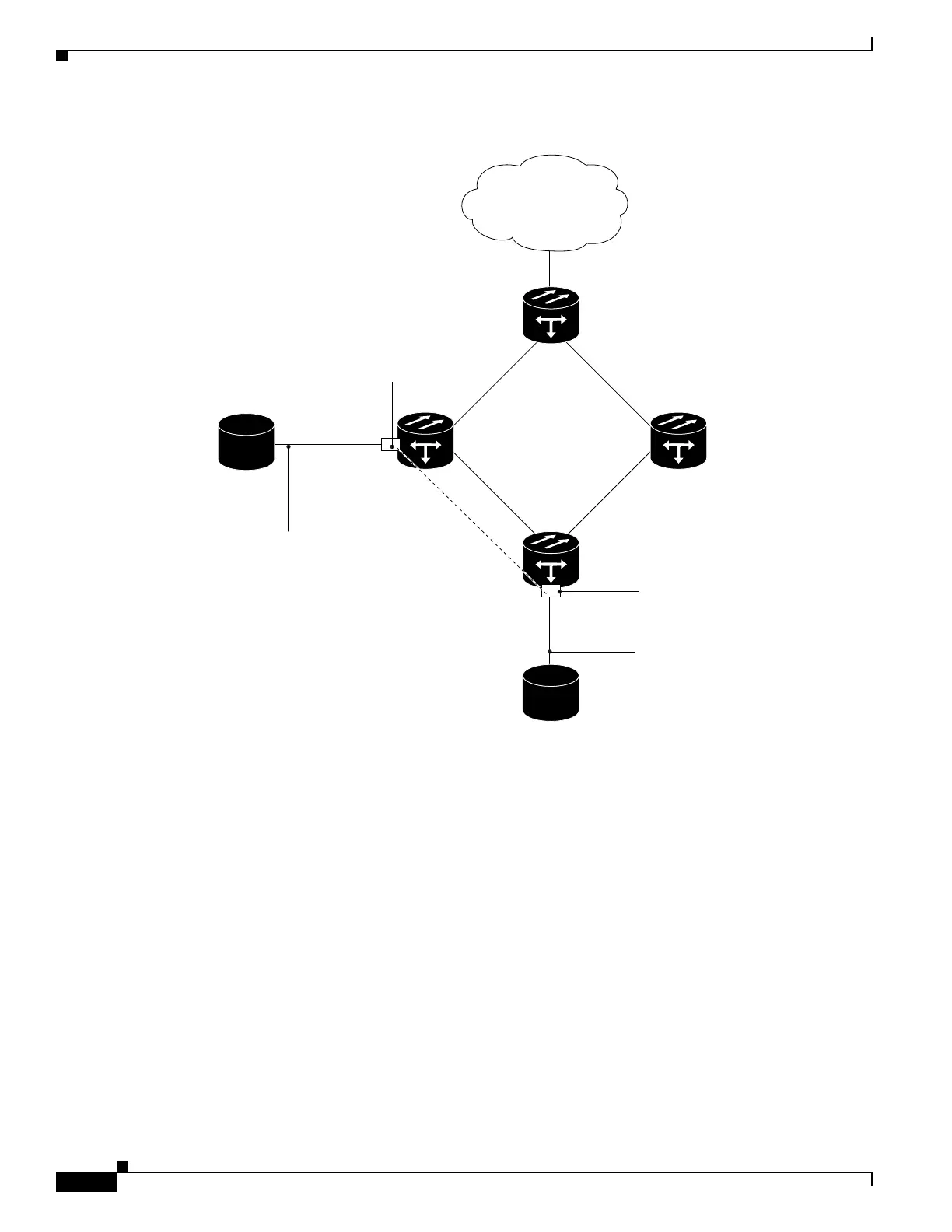

Figure 15-29 OSI/MSTP Scenario 3
OSI/MSTP Scenario 4 (Figure 15-30) shows the following:
• OSI is carried over an SDCC or RS-DCC termination.
• OSI has to be carried or tunneled to the other peer TXP/MXP through an OSC termination, GCC
termination, or both
• An OSS has IP connectivity to all the NEs through third-party NE network.
• The MSTP NE is a GNE for the third-party OSI-based SONET NEs. The MSTP NEs perform all
mediation functions.
• The third-party vendor NE is a GNE for the Cisco MSTP network.
IP OSS
OSC
OSC
GCC
OSC
OSC
SDCC/RS-DCC
SDCC/RS-DCC
OSI over SDCC/RS-DCC
OSI over SDCC/RS-DCC
TXP/MXP
TXP/MXP
Other vendor
SONET/SDH
Other vendor
SONET/SDH
DCN (IP)
MSTP
GNE
MSTPMSTP
MSTP
137658

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
