Chapter 7 Reconfigurable Optical Add/Drop Cards
7.11.3 40-WSS-CE Card ROADM Functionality

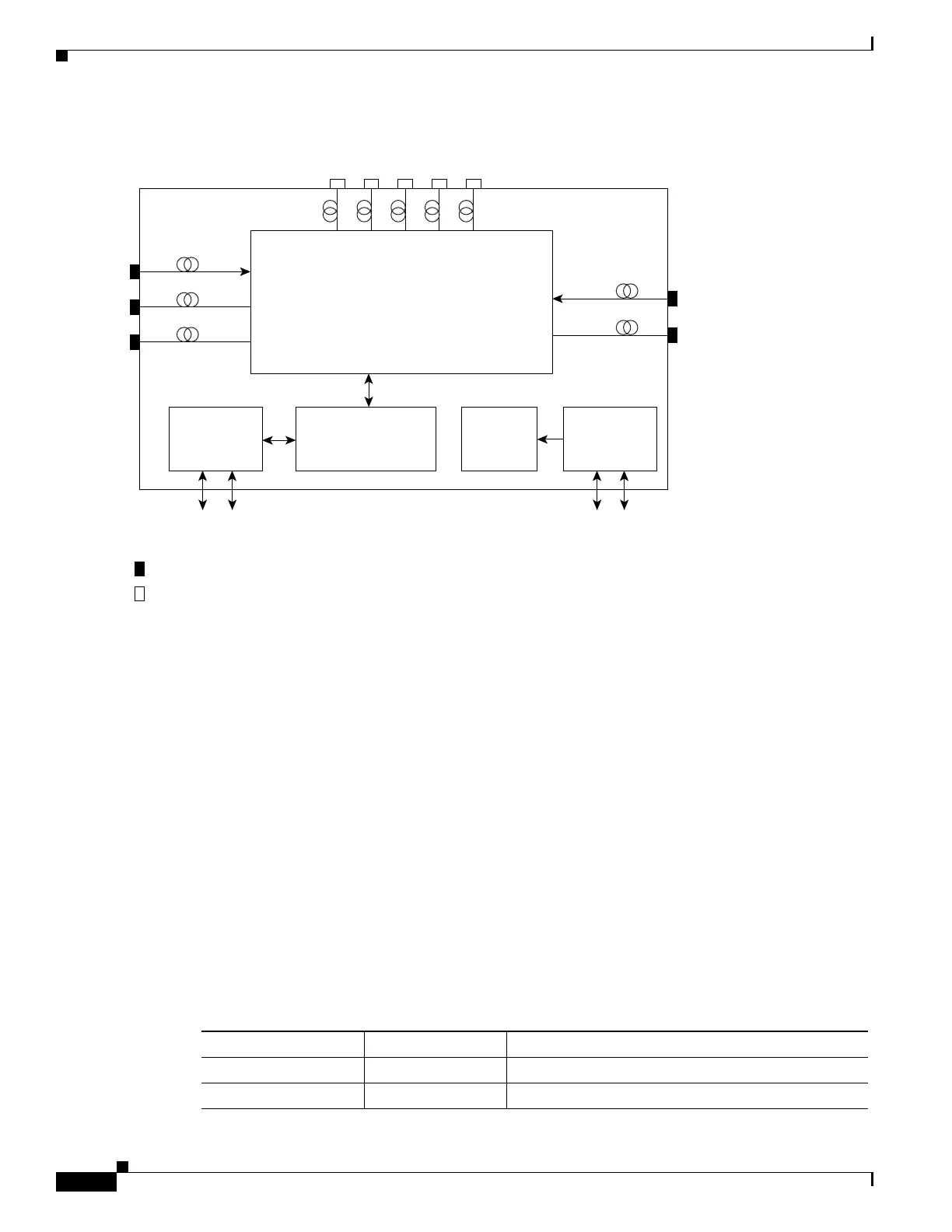

Figure 7-32 40-WSS-CE Card Optical Module Functional Block Diagram
7.11.3 40-WSS-CE Card ROADM Functionality
The 40-WSS-CE card works in combination with the 40-DMX-CE card to implement ROADM
functionality. As a ROADM node, the ONS 15454 can be configured at the optical channel level using
CTC, Cisco TransportPlanner, and CTM. ROADM functionality using the 40-WSS-CE card requires two
40-WSS-CE double-slot cards and two 40-DMX-CE single-slot cards (for a total of six slots in the
ONS 15454 chassis).
For information about ROADM functionality for another cards, see the description of that card in this
chapter. For a diagram of a typical ROADM configuration, see the “9.1.4 ROADM Node” section on
page 9-12.
7.11.4 40-WSS-CE Card Power Monitoring
The 40-WSS-CE card has physical diodes that monitor power at various locations on the card. Table 7-33
lists the physical diode descriptions.
Optical
module
159392
uP8260
COM RX
COM TX
FPGA
For SCL Bus
management
2xSCL Buses
DC/DC
Power supply
Input filters
BAT A&B
EXP RX
ADD RX
LC connector
MPO connector
EXP TX
DROP TX
Table 7-33 40-WSS-CE Physical Photodiode Port Calibration
Physical Photodiode CTC Type Name Calibrated to Port(s)
P1 DROP DROP TX
P2 EXP EXP RX
