Cisco ONS 15454 DWDM Reference Manual

9-62
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 9 Node Reference
9.7.1 Navigating Functional View

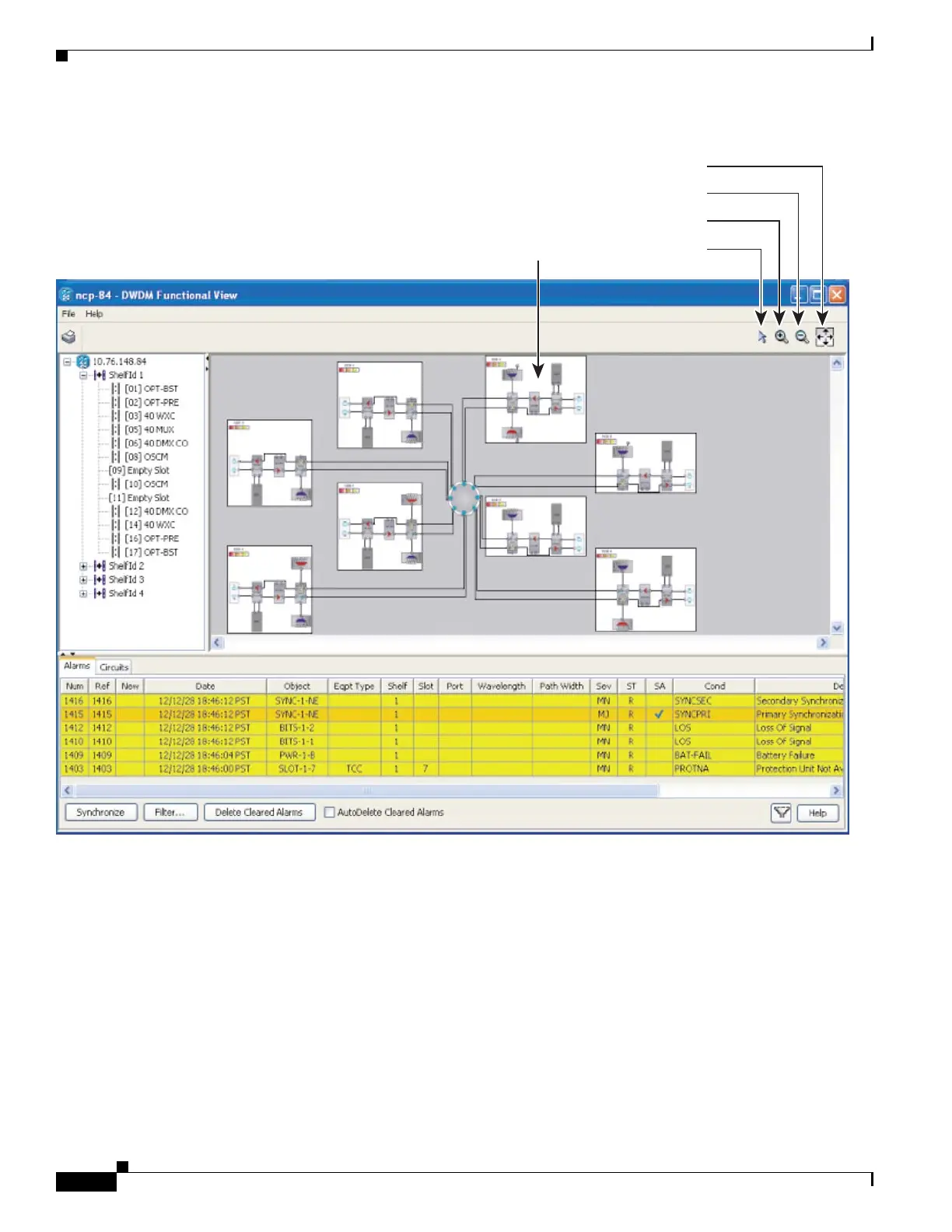

Figure 9-41 Functional View for an Eight-Sided Node
9.7.1 Navigating Functional View
The functional view has two main panes. The upper pane contains a tree view of the shelves and a
graphical view of the shelf equipment. The lower pane describes alarms and circuits in a tabular format.
The upper pane in Figure 9-41 is divided into a left pane and a right pane. The left pane shows a tree
structure view of the shelf or shelves in the MSTP system. You can expand the tree view of a shelf to
show the slot usage in that shelf. The right-hand pane is a graphical view of the sides in the shelf. In the
case of Figure 9-41, there are eight sides (A through H). Side A is located as shown in the figure. All of
the cards in each side are grouped together.
240752
Side A
Fit to View
Zoom Out
Zoom In
Select

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
