Chapter 12 Cisco Transport Controller Operation
12.5.4 Card View

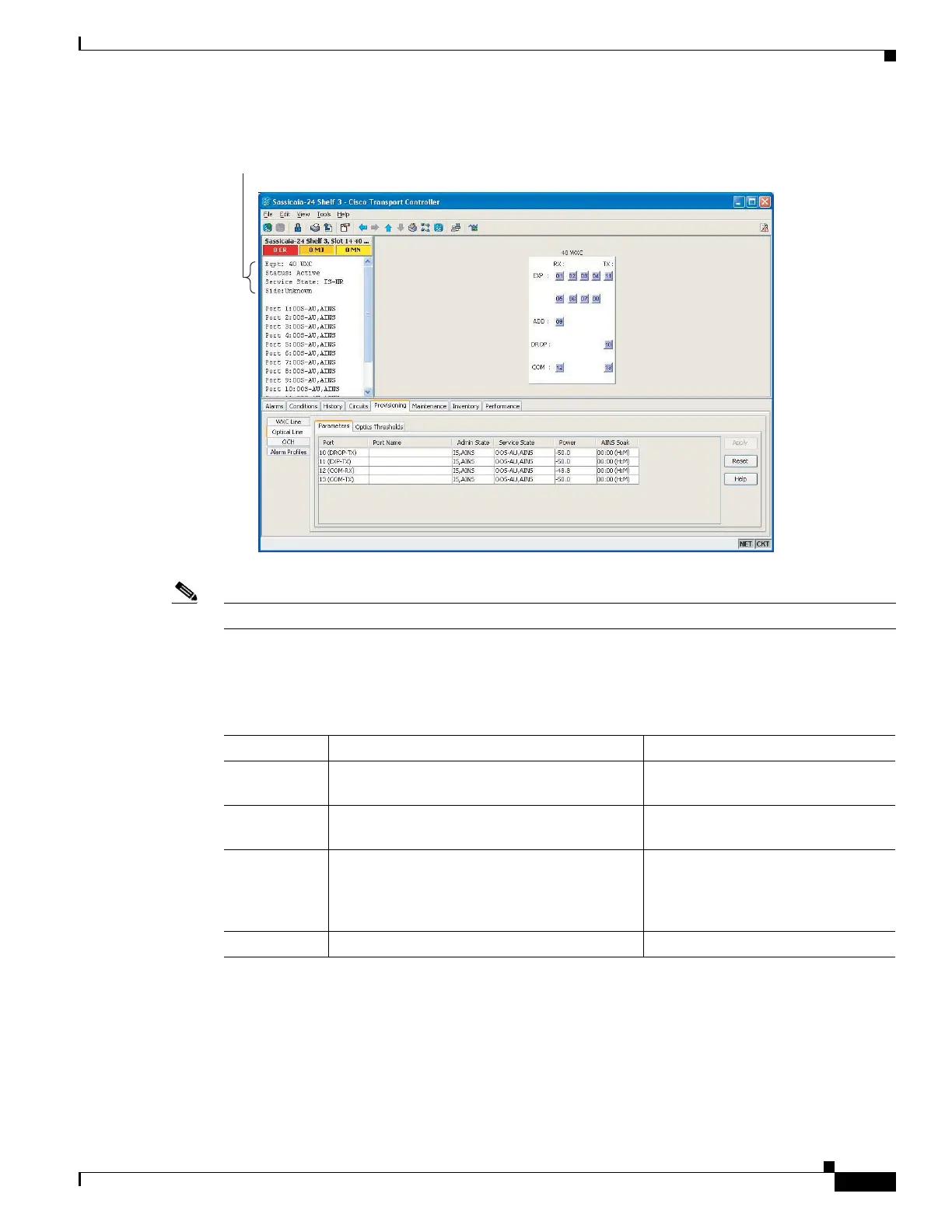

Figure 12-8 CTC Card View Showing a 40-WXC-C Card
Note CTC provides a card view for all ONS 15454 cards except the TCC2/TCC2P card.
Use the card view tabs and subtabs shown in Table 12-14 to provision and manage the ONS 15454. The
subtabs, fields, and information shown under each tab depend on the card type selected.
159508
Card identification and status
Table 12-14 Card View Tabs and Subtabs
Tab Description Subtabs
Alarms Lists current alarms (CR, MJ, MN) for the card
and updates them in real time.
—
Conditions Displays a list of standing conditions on the
card.
—
History Provides a history of card alarms including
date, object, port, and severity of each alarm.
Session (displays alarms and events
for the current session), Card
(displays alarms and events retrieved
from a fixed-size log on the card)
Circuits Creates, deletes, edits, and search circuits. —
