15-12
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 15 Management Network Connectivity
15.2.7 Scenario 7: Provisioning the ONS 15454 Proxy Server

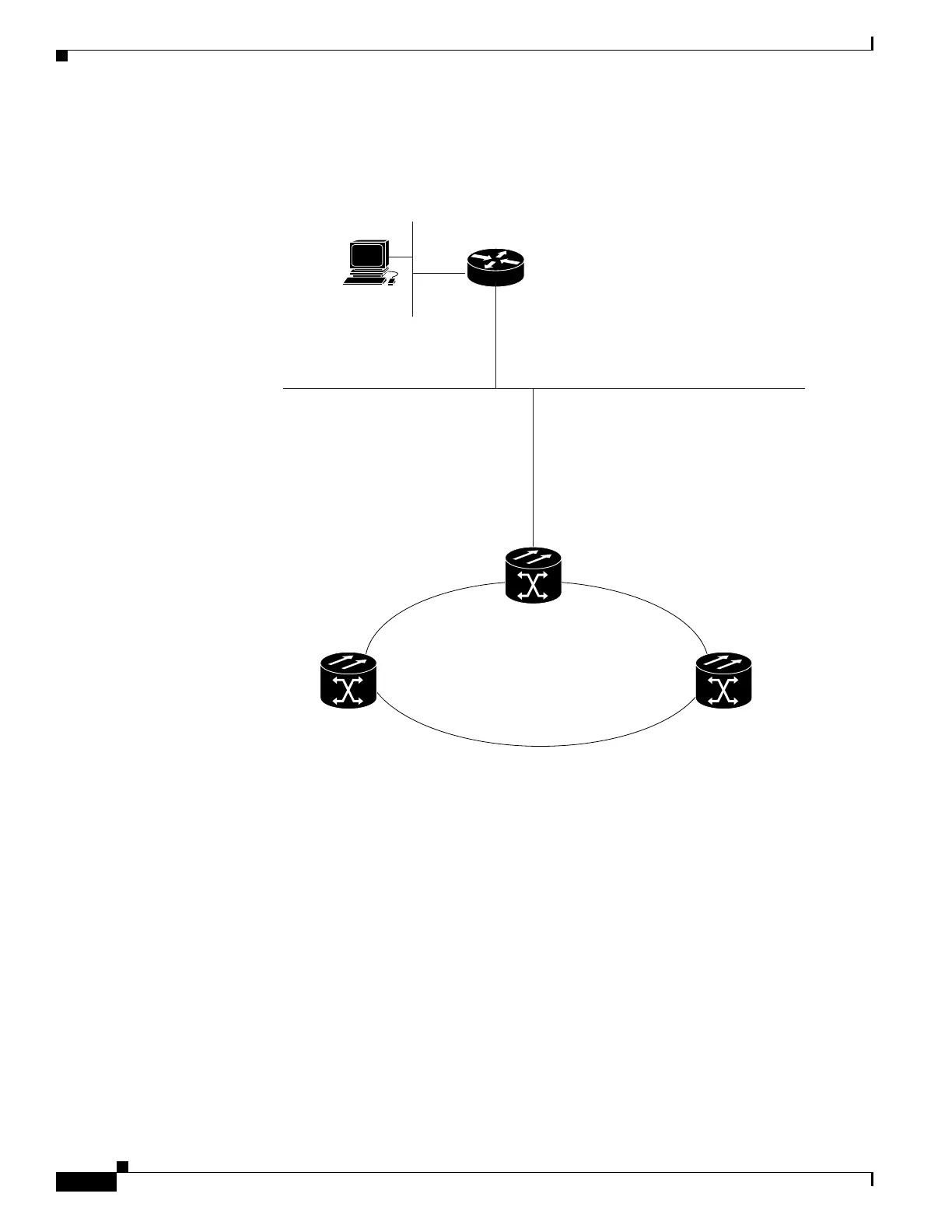

Figure 15-9 Scenario 6: OSPF Not Enabled (ANSI and ETSI)
15.2.7 Scenario 7: Provisioning the ONS 15454 Proxy Server
The ONS 15454 proxy server is a set of functions that allows you to network ONS 15454s in
environments where visibility and accessibility between ONS 15454s and CTC computers must be
restricted. For example, you can set up a network so that field technicians and network operations center
(NOC) personnel can both access the same ONS 15454s while preventing the field technicians from
accessing the NOC LAN. To do this, one ONS 15454 is provisioned as a GNE and the other ONS 15454s
are provisioned as end ENEs. The GNE ONS 15454 tunnels connections between CTC computers and
ENE ONS 15454s, providing management capability while preventing access for non-ONS 15454
management purposes.
ONS 15454 #1
IP Address 192.168.2.10
Subnet Mask 255.255.255.0
Default Router = 192.168.2.1
Static Routes
Destination = 192.168.1.100
Mask = 255.255.255.255
Next Hop = 192.168.2.1
Cost = 2
CTC Workstation
IP Address 192.168.1.100
Subnet Mask 255.255.255.0
Default Gateway = 192.168.1.1
Host Routes = N/A
Router
IP Address of interface “A” to LAN A 192.168.1.1
IP Address of interface “B” to LAN B 192.168.2.1
Subnet Mask 255.255.255.0
Static Routes = Destination 192.168.3.20 Next Hop 192.168.2.10
Destination 192.168.4.30 Next Hop 192.168.2.10
ONS 15454 #2
IP Address 192.168.3.20
Subnet Mask 255.255.255.0
Default Router = N/A
Static Routes = N/A
ONS 15454 #3
IP Address 192.168.4.30
Subnet Mask 255.255.255.0
Default Router = N/A
Static Routes = N/A
LAN B
LAN A
Int "A"
Int "B"
Ring
124252
