8-30
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 8 Transponder and Muxponder Cards
8.7.5 Faceplate
• Automatic timing source synchronization: The MXP_2.5G_10E normally synchronizes from the
TCC2/TCC2P card. If for some reason, such as maintenance or upgrade activity, the TCC2/TCC2P
is not available, the MXP_2.5G_10E automatically synchronizes to one of the input client interface
clocks.
• Configurable squelching policy: The card can be configured to squelch the client interface output if
there is LOS at the DWDM receiver or if there is a remote fault. In the event of a remote fault, the
card manages multiplex section alarm indication signal (MS-AIS) insertion.
8.7.5 Faceplate

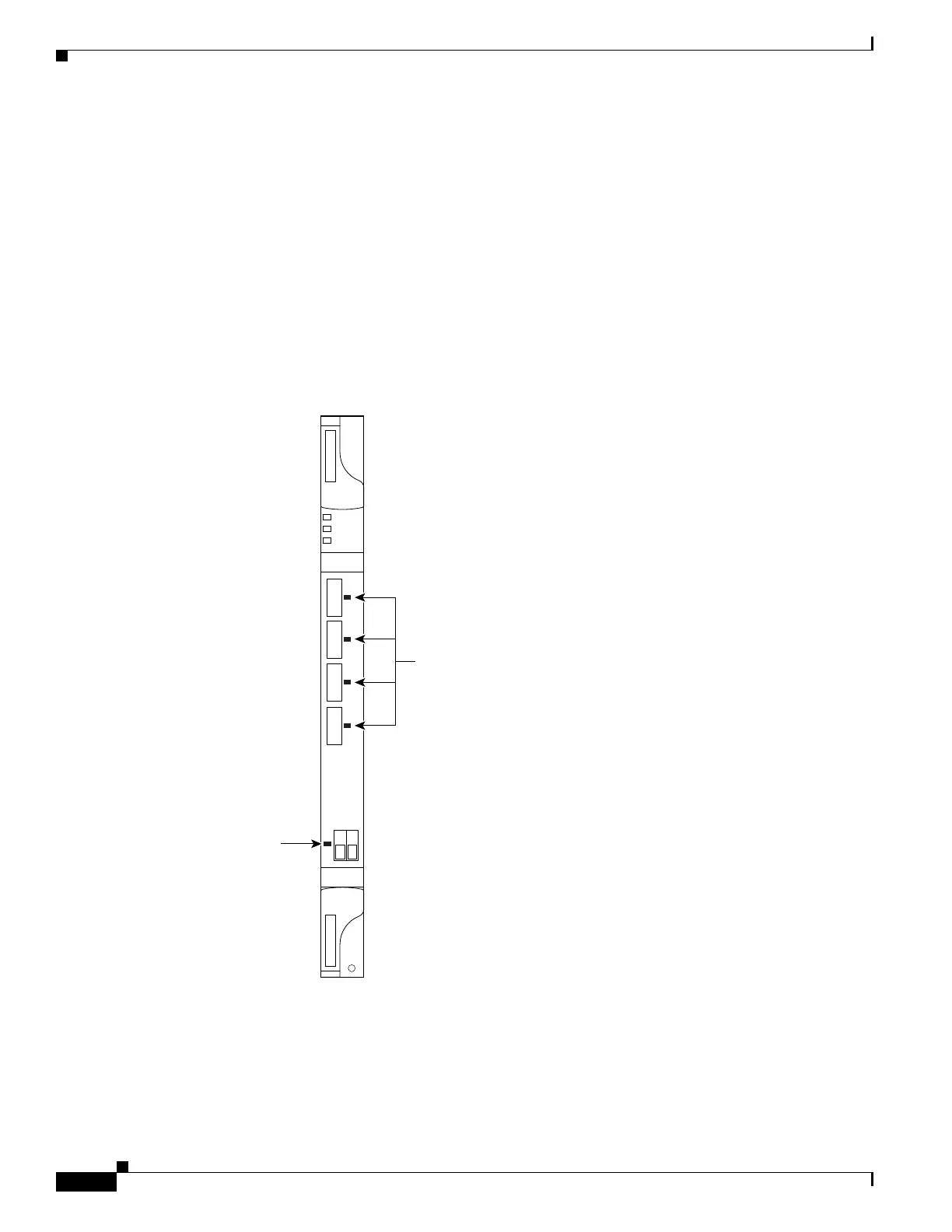

Figure 8-18 shows the MXP_2.5G_10E faceplate.
Figure 8-18 MXP_2.5G_10E Faceplate
For information on safety labels for the card, see the “8.2.1 Class 1 Laser Product Cards” section on
page 8-4.
Figure 8-19 shows a block diagram of the MXP_2.5G_10E card.
145937
FAI L
ACT/STBY
SF
4x2.5
10 E
MxP
530.33-
1550.12
RX
TX
TX RXTX RXTX RXTX RX
Client LEDs
DWDM LED
