Cisco ONS 15454 DWDM Reference Manual

1-29
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 1 Shelf Assembly Hardware
1.7.1 Lower Backplane Cover

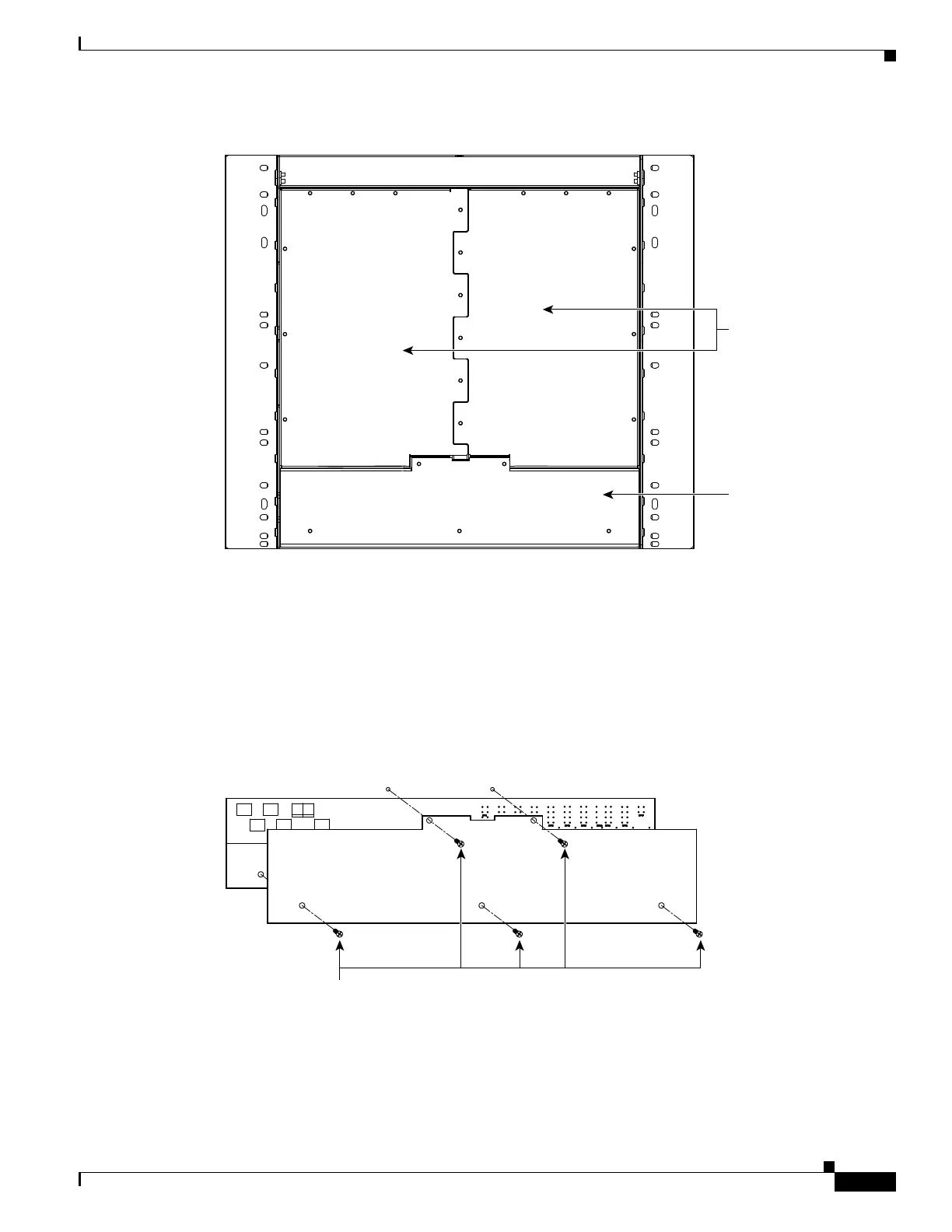

Figure 1-27 Backplane Covers
1.7.1 Lower Backplane Cover
The lower section of the ONS 15454 ANSI backplane is covered by either a clear plastic protector
(15454-SA-ANSI) or a sheet metal cover (15454-SA-HD), which is held in place by five 6-32 x 1/2 inch
screws. Remove the lower backplane cover to access the alarm interface panel (AIP), alarm pin fields,
frame ground, and power terminals (Figure 1-28).
Figure 1-28 Removing the Lower Backplane Cover
BA
32074
Lower Backplane
Cover
Backplane Sheet Metal
Covers
32069
Retaining
screws

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
