4.3.2 OPT-PRE Block Diagrams
Figure 4-6 shows the OPT-PRE amplifier card faceplate.

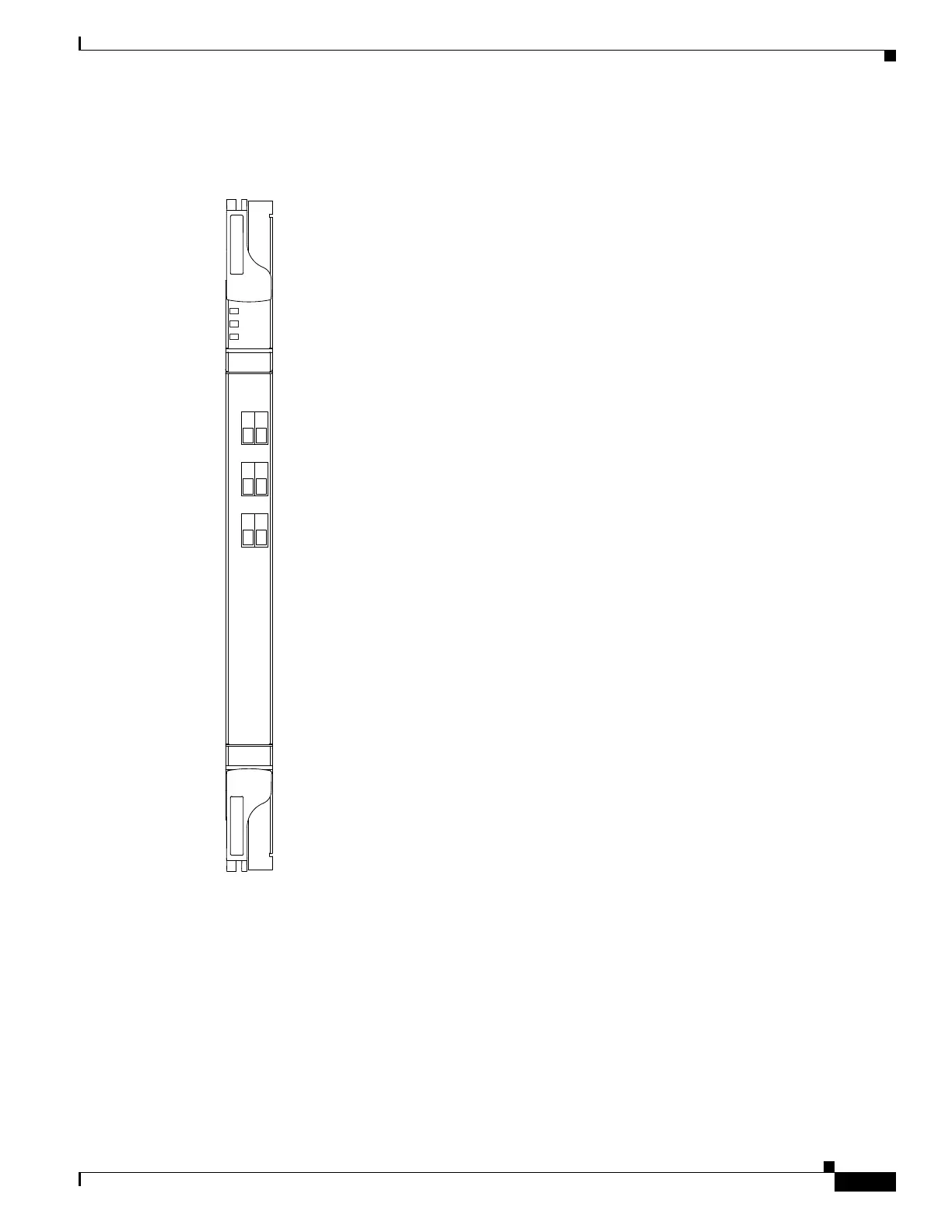

Figure 4-6 OPT-PRE Faceplate
4.3.2 OPT-PRE Block Diagrams
Figure 4-7 shows a simplified block diagram of the OPT-PRE card’s features.
OPT
PRE
FAIL
ACT
SF
MON
RX
COM
TX
RX
DC
TX
96466
