Cisco ONS 15454 DWDM Reference Manual

8-63
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 8 Transponder and Muxponder Cards
8.11.2 Faceplate and Block Diagram

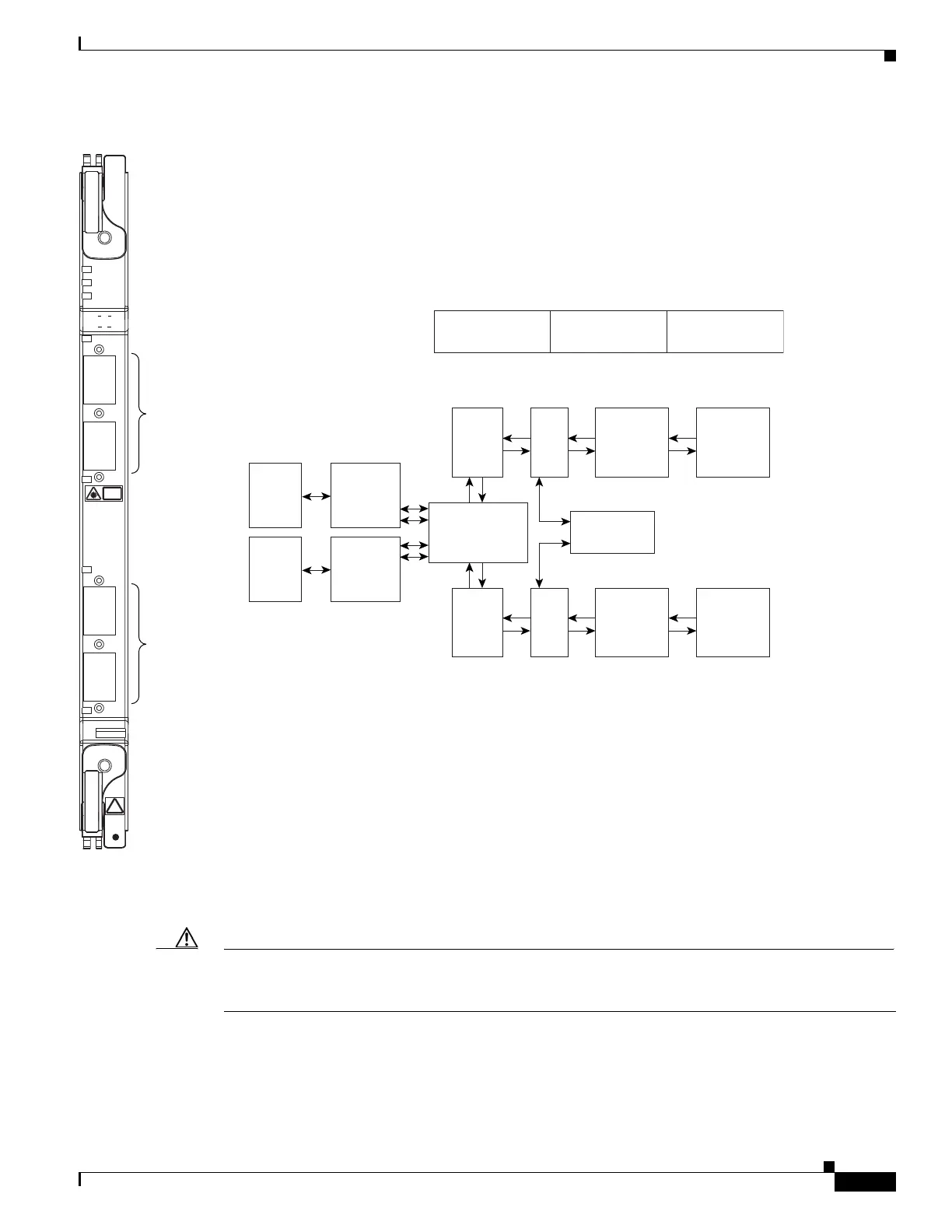

Figure 8-25 10GE_XP Faceplates and Block Diagram
For information on safety labels for the cards, see the “8.2.2 Class 1M Laser Product Cards” section on
page 8-6.
Caution You must use a 20-dB fiber attenuator (15 to 25 dB) when working with the cards in a loopback on the
trunk port. Do not use direct fiber loopbacks with the cards. Using direct fiber loopbacks causes
irreparable damage to the GE_XP and 10GE_XP cards.
!
MAX INPUT
POWER LEVEL
CLIENT: +3dBm
TRUNK: +1dBm
HAZARD
LEVEL 1
10GE
XP
RX 2 TX TRUNK RX 1 TX RX 2 TX CLIENT RX 1 TX
COMPLIES WITH
21 CFR 1040.10
AND 1040.11
EXCEPT FOR
DEVIATIONS
PURSUANT TO
LASER NOTICE
No.50, DATED
JULY 26, 2001
FAIL
ACT
SF
CONSOLE
159053
159053
XFP
XAUI
SERDES
XFP
XAUI
SERDES
XAUI
to
SF14
XAUI
to
SF14
FEC SERDES XFP WDM
FEC SERDES XFP WDM
MPC8270 core Power supply Clocking
BCM 5650x
with
Ethernet ASIC
SCL FPGA
Client
Ports 1-2
10GE
Trunk
Ports 1-2
10GE

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
