Chapter 8 Transponder and Muxponder Cards
8.8.3 Client Interfaces

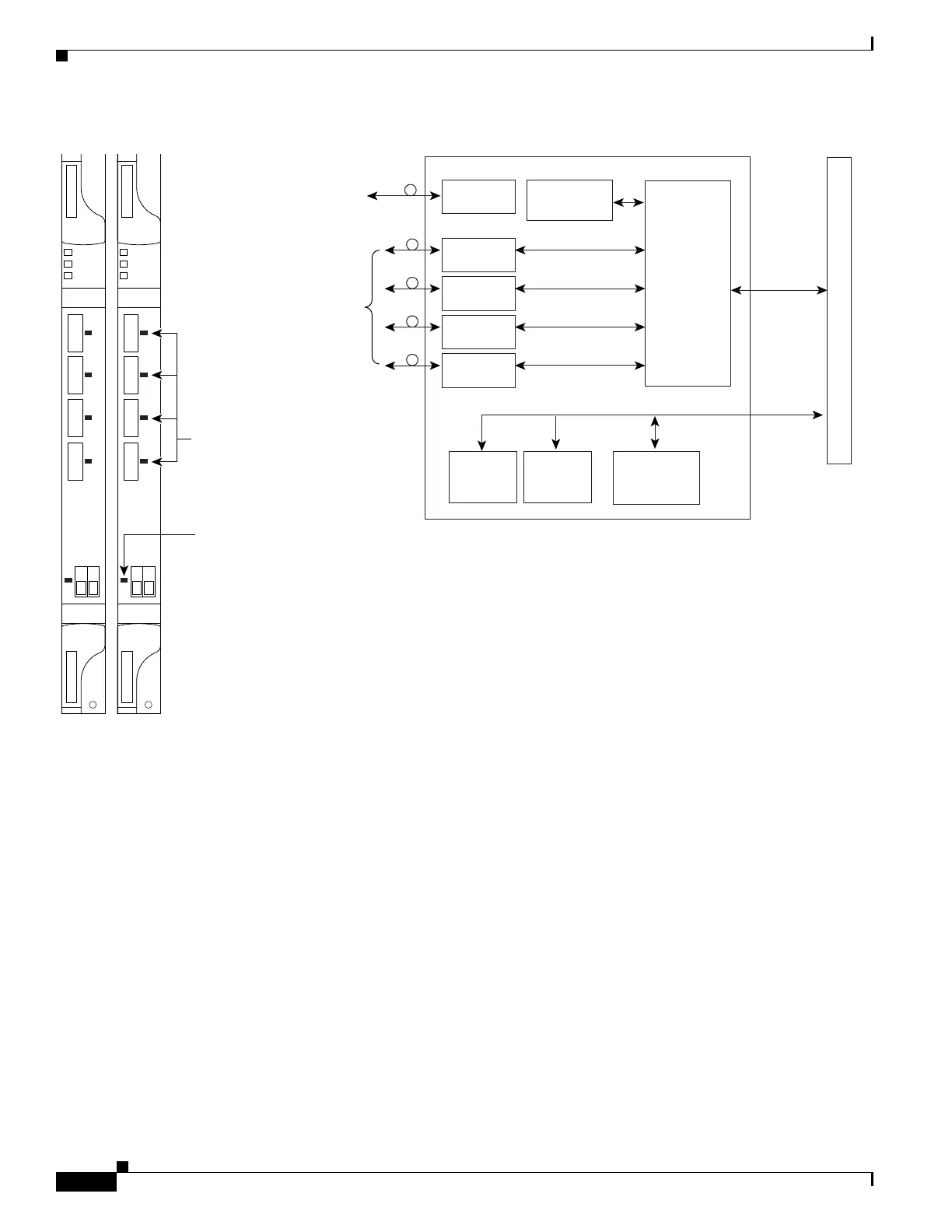

Figure 8-20 MXP_2.5G_10E _C and MXP_2.5G_10E_L Faceplates and Block Diagram
For information on safety labels for the cards, see the “8.2.1 Class 1 Laser Product Cards” section on
page 8-4.
8.8.3 Client Interfaces
The MXP_2.5G_10E_C and MXP_2.5G_10E_L cards provide four intermediate- or short-range
OC-48/STM-16 ports per card on the client side. Both SR-1 and IR-1 optics can be supported and the
ports use SFP connectors. The client interfaces use four wavelengths in the 1310-nm,
ITU 100-GHz-spaced, channel grid.
8.8.4 DWDM Interface
The MXP_2.5G_10E_C and MXP_2.5G_10E_L cards serve as OTN multiplexers, transparently
mapping four OC-48 channels asynchronously to ODU1 into one 10-Gbps trunk. For the
MXP_2.5G_10E_C card, the DWDM trunk is tunable for transmission over the entire C band and for the
MXP_2.5G_10E_L card, the DWDM trunk is tunable for transmission over the entire L band. Channels
are spaced at 50-GHz on the ITU grid.
FAI L
ACT/STBY
SF
4x2.5
10 E
MXP C
RX TX
TX
RX
TX
RX
TX
RX
TX
RX
FAI L
ACT/STBY
SF
4x2.5
10 E
MXP L
RX TX
TX
RX
TX
RX
TX
RX
TX
RX
Processor
RAM
145941
Optical
transceiver
Optical
transceiver
Optical
transceiver
Optical
transceiver
Optical
transceiver
B
a
c
k
p
l
a
n
e
FEC/
Wrapper
E-FEC
Processor
(G.709 FEC)
Serial bus
uP bus
Onboard
Flash
memory
Client LEDs
DWDM LED
SR-1
(short reach/intra-office)
or IR-1
(intermediate range)
SFP client
optics modules
DWDM
(trunk)
10GE
(10GBASE-LR)
