Cisco ONS 15454 DWDM Reference Manual

1-61
Cisco ONS 15454 DWDM Reference Manual, R8.5
78-18343-02
Chapter 1 Shelf Assembly Hardware
1.16.1 Card Slot Requirements

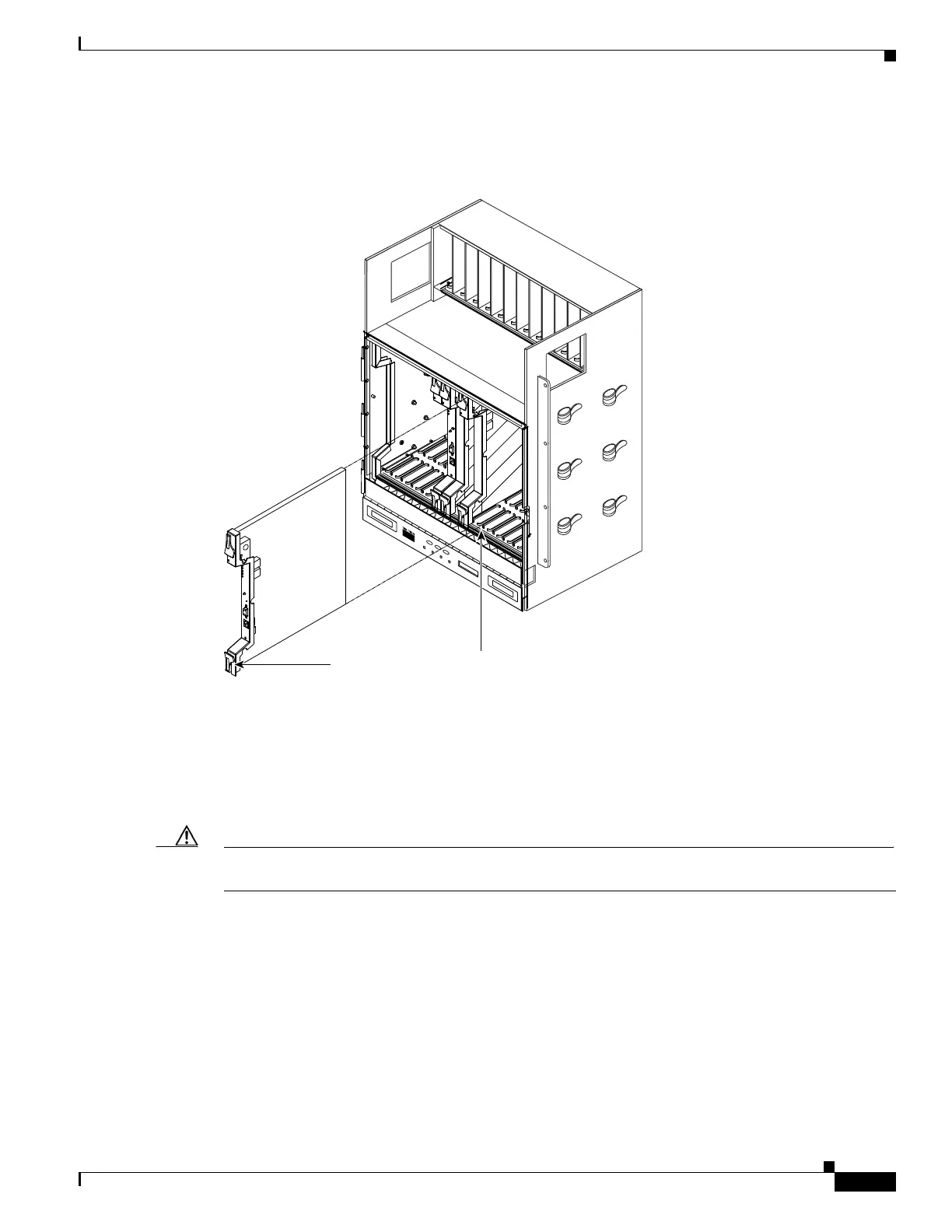

Figure 1-56 shows card installation in the ONS 15454 ETSI shelf.
Figure 1-56 Installing Cards in the ONS 15454 ETSI Shelf
1.16.1 Card Slot Requirements
The ONS 15454 shelf assemblies have 17 card slots numbered sequentially from left to right. Slots 7 and
11 are dedicated to TCC2/TCC2P cards. Slot 9 is reserved for the optional AIC-I card.
Caution Do not operate the ONS 15454 with a single TCC2/TCC2P card. Always operate the shelf assembly with
one working and one protect card of the same type.
Shelf assembly slots have symbols indicating the type of cards that you can install in them. Each
ONS 15454 card has a corresponding symbol. The symbol on the card must match the symbol on the slot.
61239
F
A
N
F
A
IL
C
R
IT
M
A
J
M
IN
Guide rail
Ejector

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
