Chapter 2 Common Control Cards
2.5.1 MS-ISC-100T Card-Level Indicators

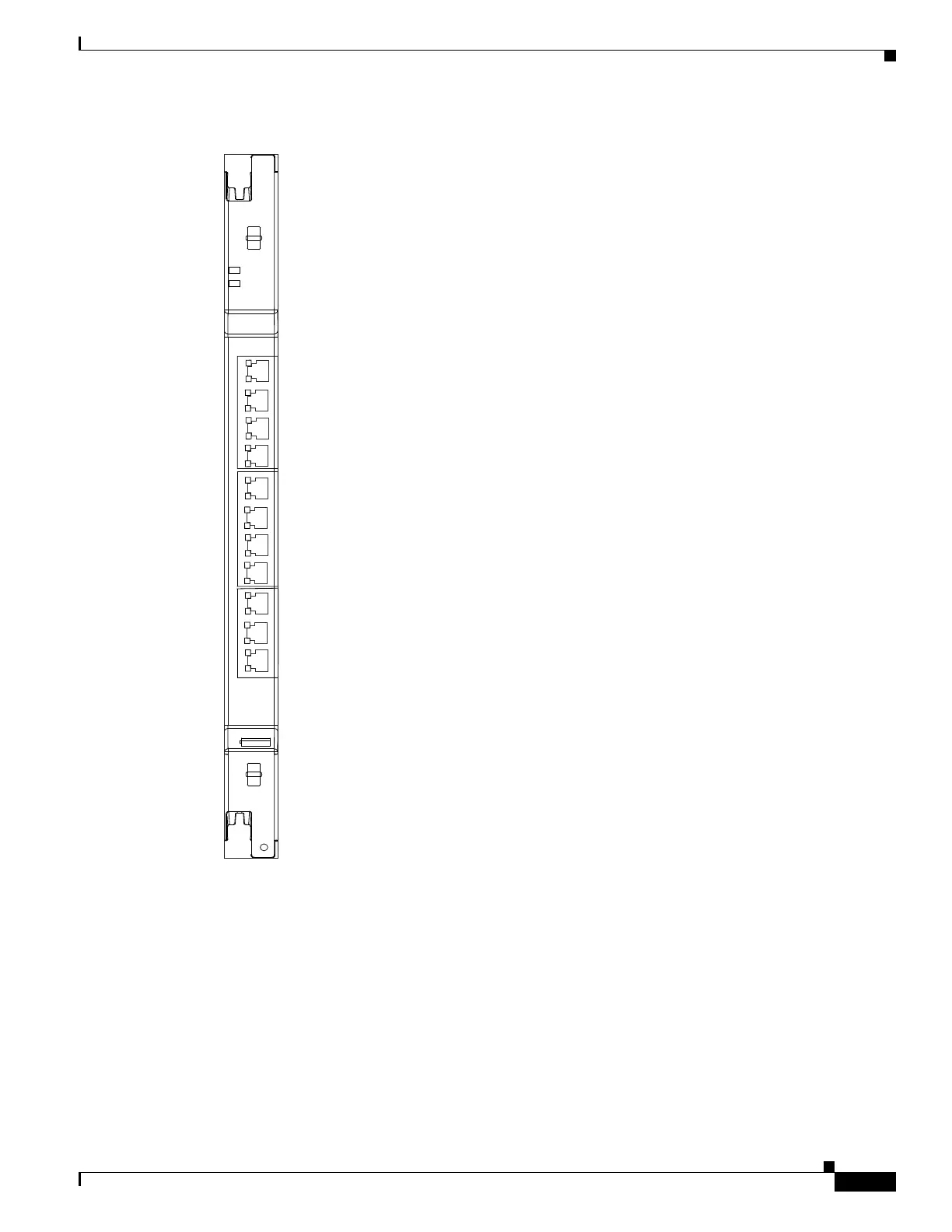

Figure 2-5 MS-ISC-100T Faceplate
2.5.1 MS-ISC-100T Card-Level Indicators
The MS-ISC-100T card supports two card-level LED indicators. The card-level indicators are described
in Table 2-12.
FAIL
ACT
MS ISC
100T
CONSOLE
145274
DC2
SSC1
SSC2
SSC3
SSC4
SSC5
SSC6
SSC7
NC
PRT
DCN1

Cisco ONS 15454 DWDM Specifications

General

Chassis Type	DWDM
Form Factor	Rack-mountable
Slots	17
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Internal fans
Operating Temperature	23 to 104°F (-5 to 40°C)
Altitude	0 to 6500 ft (0 to 1981 m)
Safety Compliance	EN 60950-1
EMI Compliance	FCC Part 15
